UNIVERS N Block for horizontal busbars 60mm 4-pole 1xNH3 450x500mm UE32E3B

Index local:
RRR1T6HAGE
Numéro de catalogue:
UE32E3B
Code EAN:
3250616151246
Producteur: HAGER
Depth [mm]: 125
Color: White
Number of poles: 4P
Prix:
529,00 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 10 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

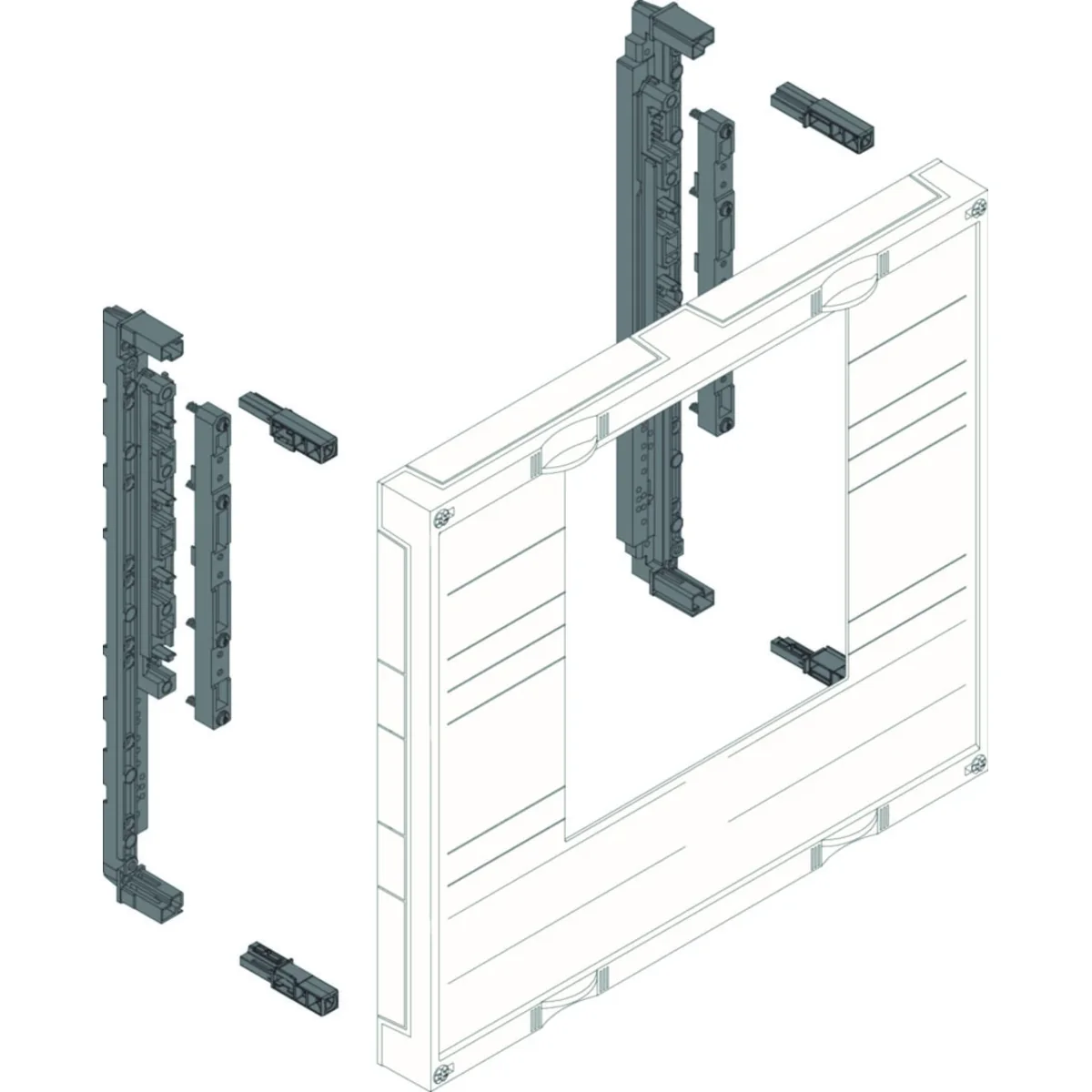

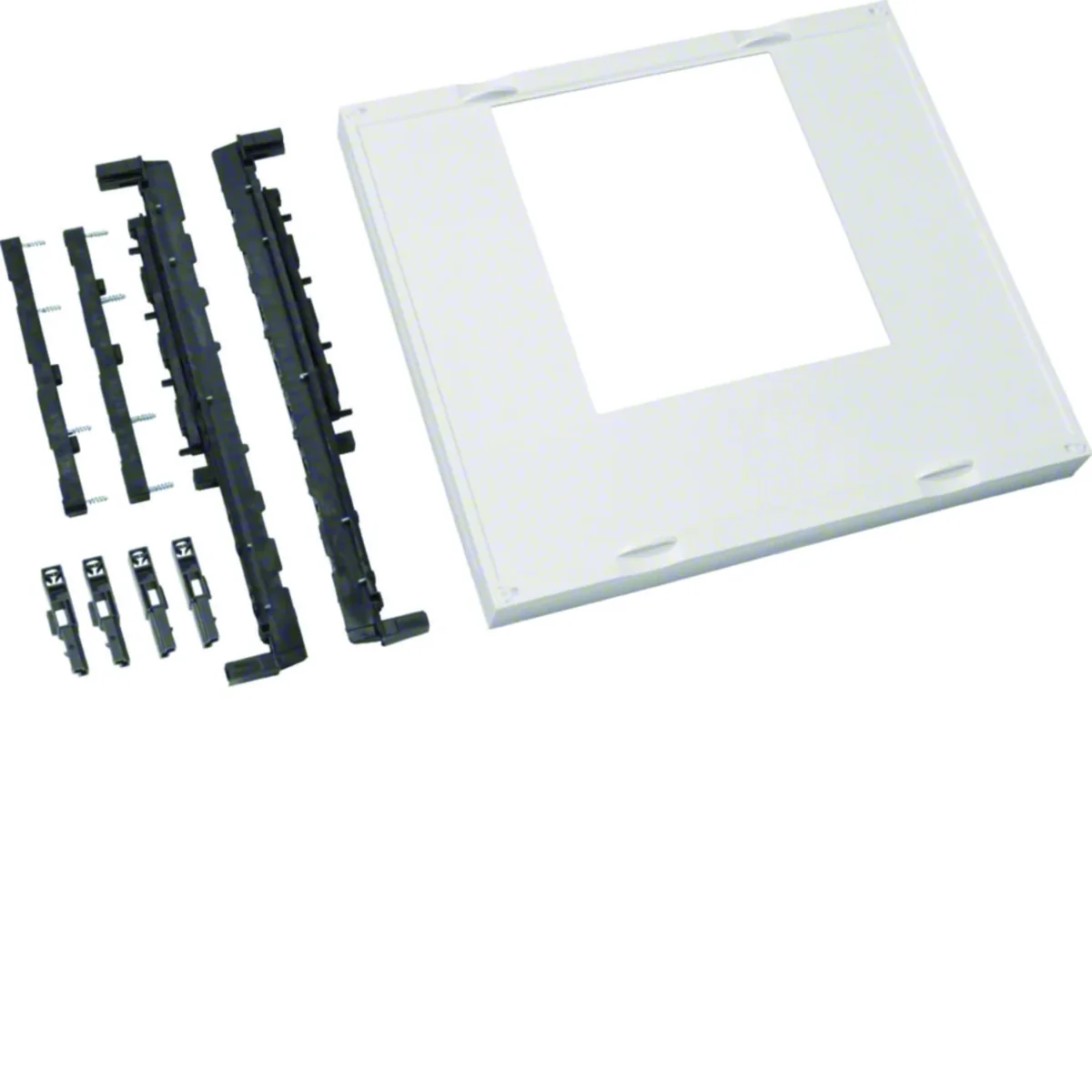

Block/subassembly with a cover, with a cut-out, with a bracket for horizontal busbars and 1xNH3 switch disconnectors, from the univers N series, i.e. the switchgear enclosure system.

Données techniques

  • Depth [mm]
    125
  • Number of poles
    4P
  • Fixing
    rail system
  • Width [mm]
    500
  • Number of sections
    2
  • Busbar width [mm]
    12/20/30
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Family
    UNIVERS N
  • Height [mm]
    450
  • The distance between the rails
    60mm
  • Busbar height [mm]
    5/10

Autres données techniques

  • Height
    450 mm
  • Depth
    125 mm
  • Width
    500 mm
  • With cover
    Yes

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Paleta Karton Paleta
Quantité 1 pcs. 28 pcs. 1 pcs. 28 pcs.
poids (kg) 1,600 69,800 1,600 69,800
Largeur (m) 0,500 0,800 0,500 0,800
Longueur (m) 0,070 1,190 0,070 1,190
Profondeur (m) 0,480 1,200 0,480 1,200
