UNIVERS N Block for horizontal busbars 60mm 3P 3xNH00 linear 450x250 bottom outlets UE31B3N

local index:
RRR1T0HAGE
Catalog No:
UE31B3N
EAN code:
3250616151369
Manufacturer: HAGER
Depth [mm]: 125
Color: White
Fixing: screwed
Price:
162,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

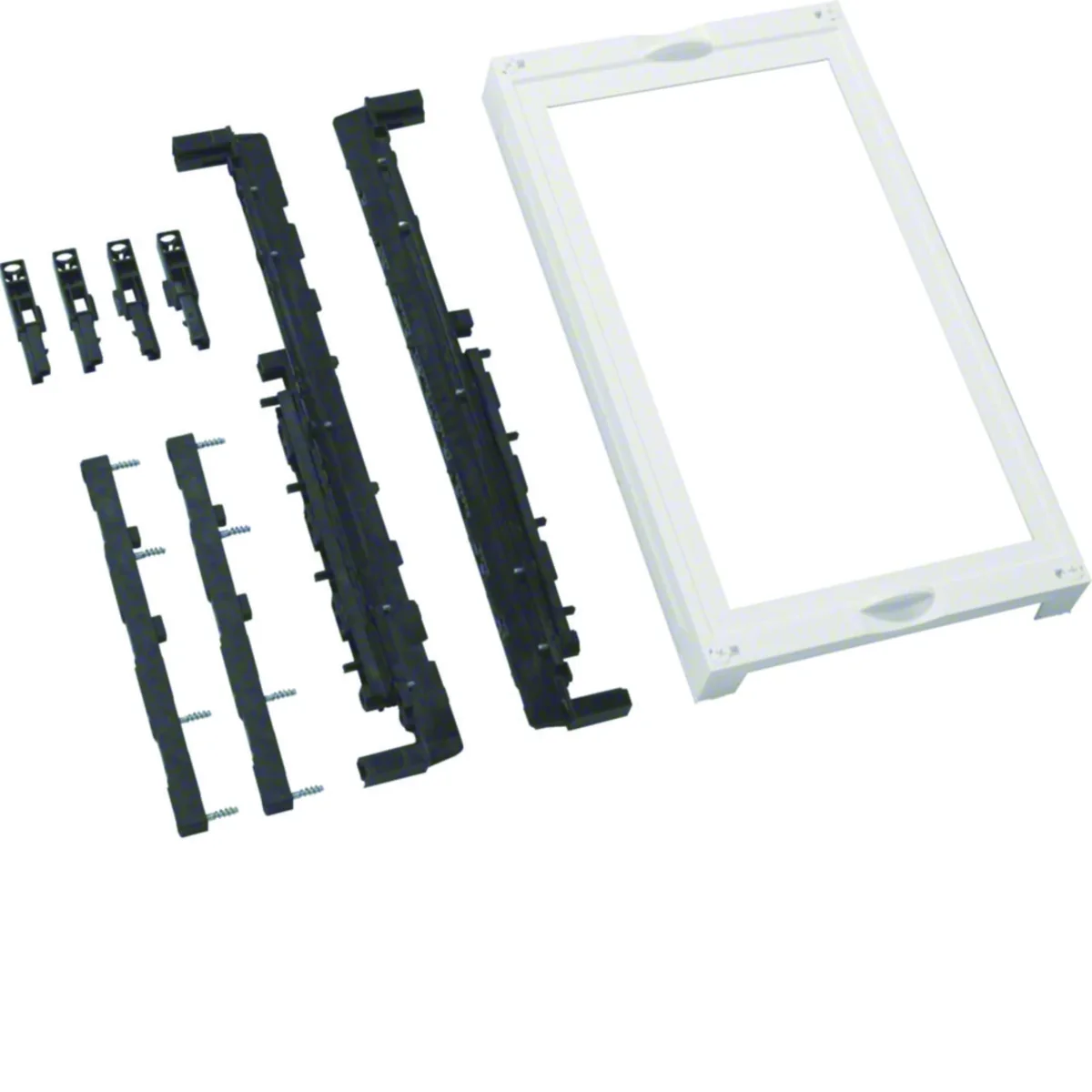

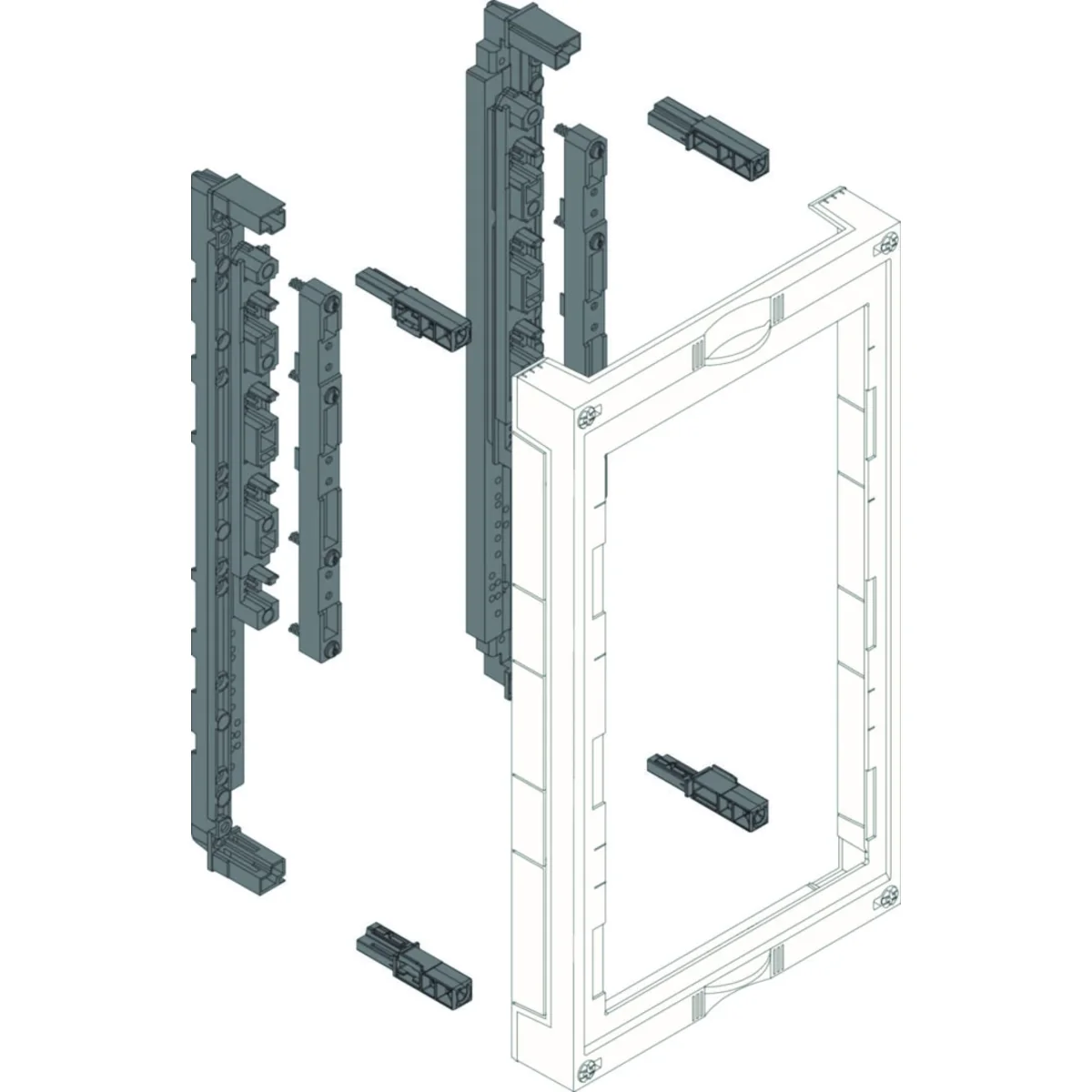

Block/subassembly with a cover with a cut-out for 3xNH00 3-pole fuse switch disconnectors, with a bracket for horizontal busbars, bottom outlets, spacing 60mm, univers N series , i.e. the switchgear building system.

Technical data

  • Depth [mm]
    125
  • Fixing
    screwed
  • Width [mm]
    250
  • PKWIU
    27.12.40.0
  • Color
    White
  • Family
    UNIVERS N
  • Height [mm]
    450

Other technical data

  • Height
    450 mm
  • Depth
    125 mm
  • Width
    250 mm
  • With cover
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 1,243 1,244 99,640
Width (m) 0,265 0,265 0,800
Length (m) 0,065 0,065 0,780
Depth (m) 0,460 0,460 1,200
