UNIVERS N Block for horizontal busbars 60mm 1xNH00 with transparent glass 300x250mm UE21E4

Name: UNIVERS N Block for horizontal busbars 60mm 1xNH00 with transparent glass 300x250mm
Brand: HAGER
SKU: RRR1S0HAGE
Price: 119.00 PLN

local index:

RRR1S0HAGE

Catalog No:

UE21E4

EAN code:

3250616151345

UNIVERS N Block for horizontal busbars 60mm 1xNH00 with transparent glass 300x250mm

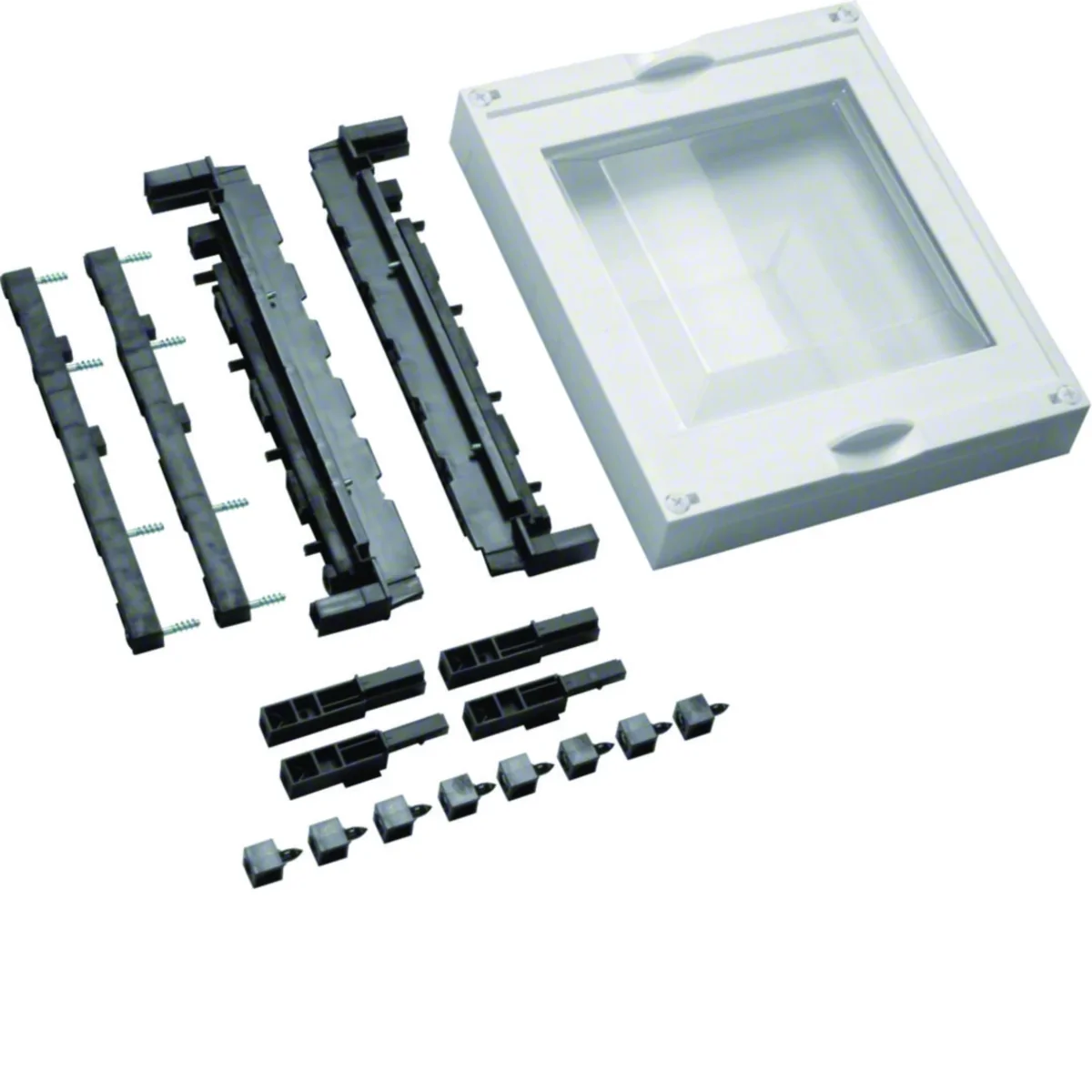

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 125

Color: White

Material: Plastic

See full description

Price:

119,00 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Block for horizontal busbars, with cover, with transparent glass, with bracket for busbars and NH00/NH1/NH2, univers N series, i.e. a built-in system switchboards.

Technical data

Depth [mm]

125
Material

Plastic
Family

UNIVERS N
Height [mm]

300
The distance between the rails

60mm
Busbar height [mm]

5/10

Color

White
Fixing

screwed
Width [mm]

250
Number of sections

1
Busbar width [mm]

12/20/30
PKWIU

27.12.40.0

Other technical data

Height

300 mm
Depth

125 mm
Plastic cover plate

Yes
Suitable for switch disconnector

No
Suitable for power circuit breaker

No
Suitable for no-voltage switch

No
Suitable for reverser

No
Rated operation current

630 A
With auxiliary terminal

No

Width

250 mm
With cover

Yes
Number of poles

4
Equipped with switch disconnector

No
Equipped with power circuit-breaker

No
Equipped with no-voltage switch

No
Equipped with reverser

No
Number of switches

2

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	96 pcs.
Weight (kg)	1,019	1,020	122,920
Width (m)	0,265	0,262	0,800
Length (m)	0,100	0,065	0,843
Depth (m)	0,310	0,305	1,200
