UNIVERS N Block for horizontal busbars 185mm for 3-pole switch disconnectors 1xNH1/2/3 750x250mm UE51K1N

local index:
RRR1U0HAGE
Catalog No:
UE51K1N
EAN code:
3250616151420
Manufacturer: HAGER
Depth [mm]: 125
Color: White
Fixing: screwed
Price:
196,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

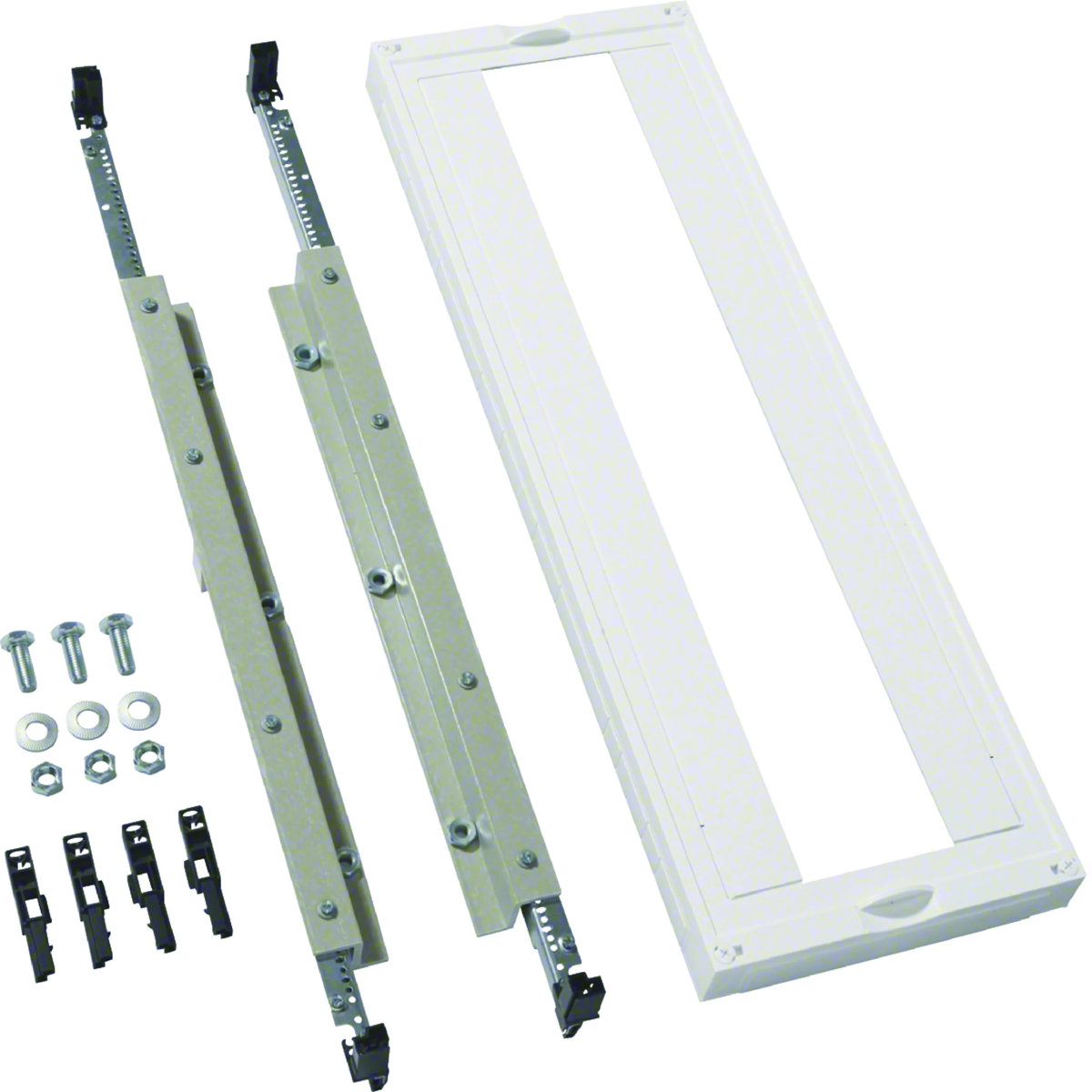

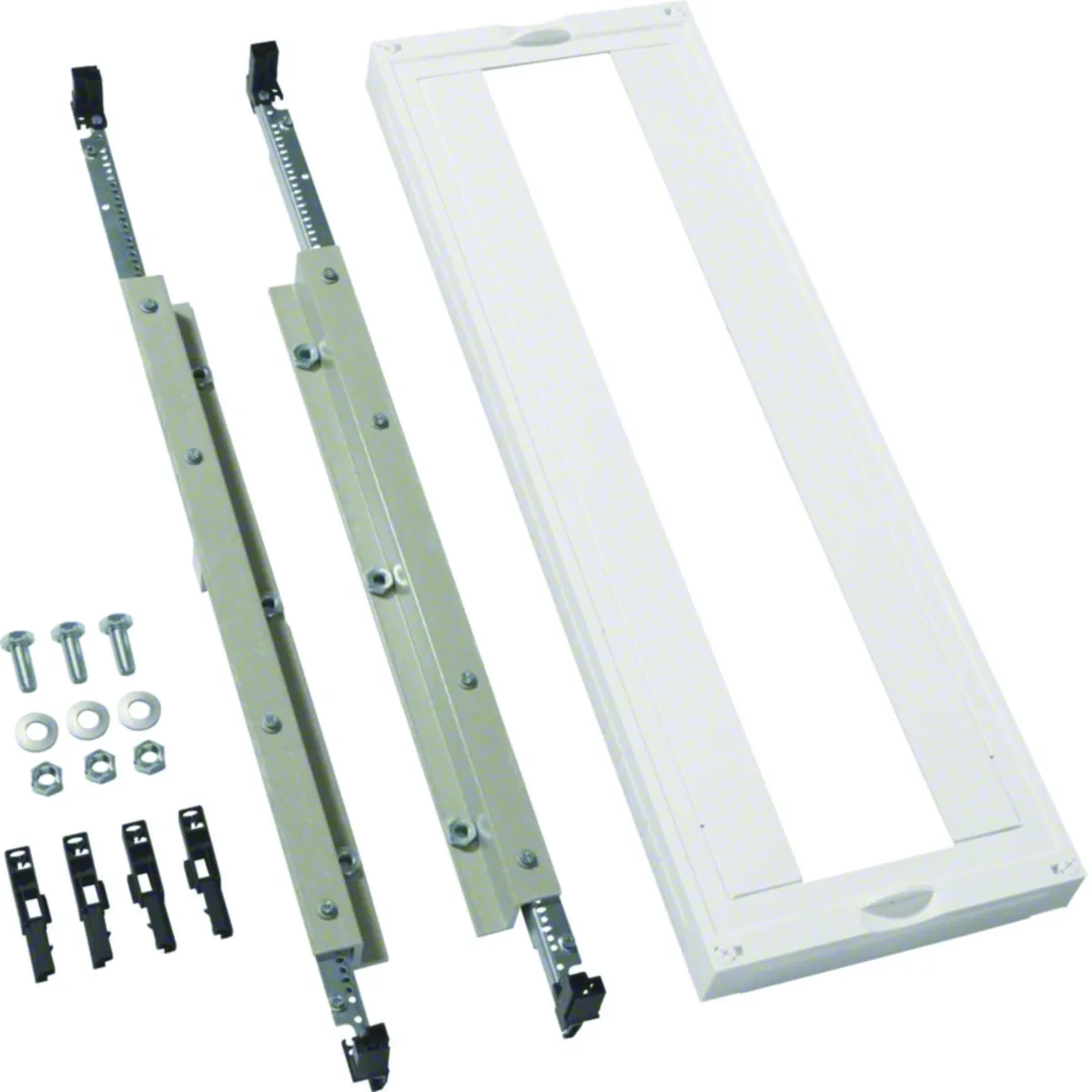

3-pole block/assembly with cover, with cut-out, with support for horizontal busbars, for NH1/2/3 slimline fuse switch disconnectors, 185mm spacing, univers N< series /strong>, i.e. the switchgear enclosure system.

Technical data

  • Depth [mm]
    125
  • Fixing
    screwed
  • Width [mm]
    250
  • PKWIU
    27.12.40.0
  • Color
    White
  • Family
    UNIVERS N
  • Height [mm]
    750

Other technical data

  • Number of poles
    3
  • Rated current
    715 A
  • Construction size
    NH1
  • Height
    750 mm
  • Depth
    125 mm
  • Number of knife blade fuse holders
    0
  • Mounting method
    Mounting plate
  • With cover
    Yes
  • Width
    250 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 24 pcs.
Weight (kg) 2,799 2,800 92,200
Width (m) 0,001 0,265 0,800
Length (m) 0,001 0,057 0,510
Depth (m) 0,001 0,765 1,200
