UNIVERS N Block for horizontal busbars 185mm 3-pole 750x250mm UE51K0

local index:
RRR1T9HAGE
Catalog No:
UE51K0
EAN code:
3250616150997
Manufacturer: HAGER
Depth [mm]: 110
Color: White
Number of poles: 3P
Price:
315,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

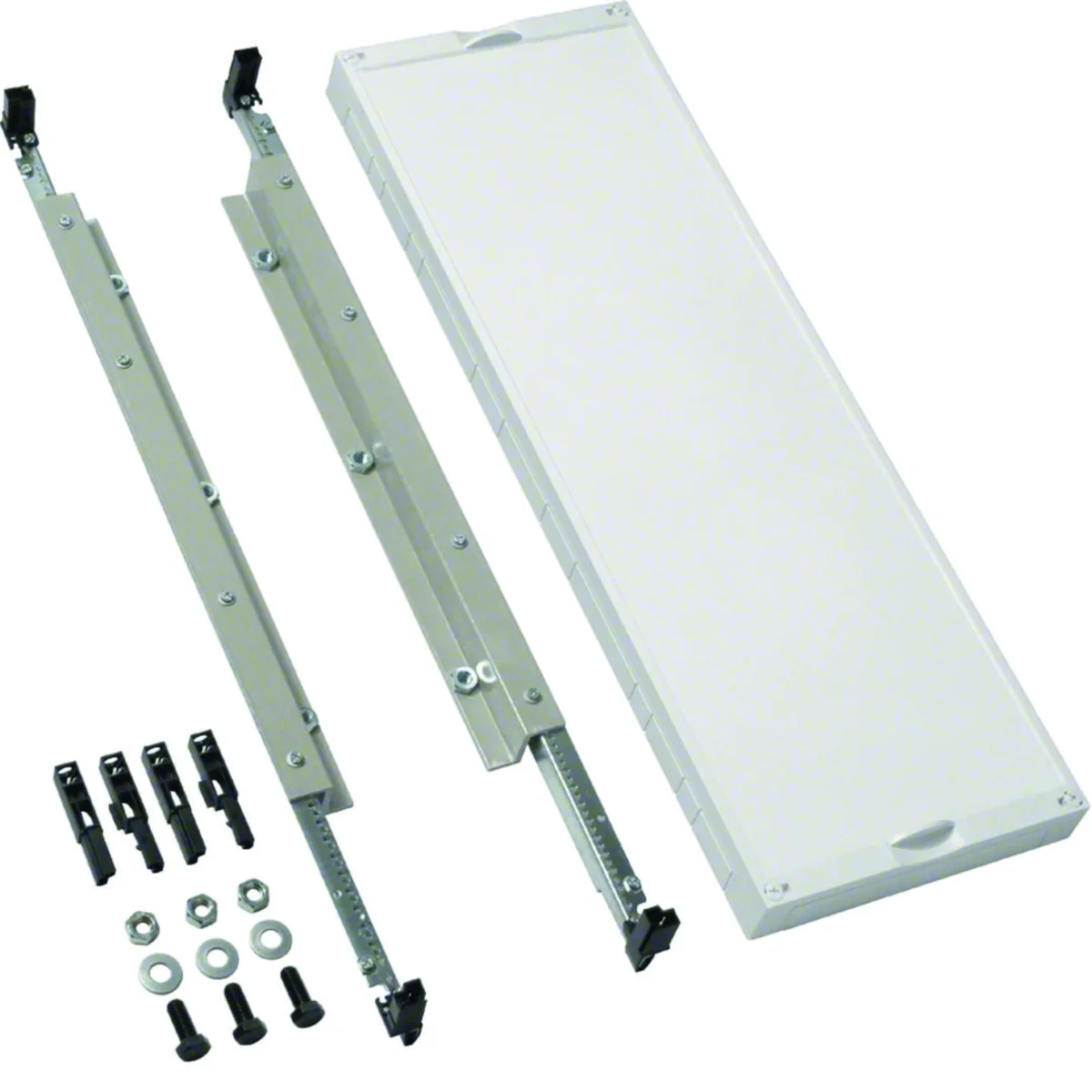

Block/subassembly with a solid cover, for horizontal busbars, from the univers N series, i.e. the switchgear enclosure system.

Technical data

  • Depth [mm]
    110
  • Number of poles
    3P
  • Fixing
    rail system
  • Width [mm]
    250
  • Number of sections
    1
  • Busbar width [mm]
    40
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Family
    UNIVERS N
  • Height [mm]
    750
  • The distance between the rails
    185mm
  • Busbar height [mm]
    10

Other technical data

  • Height
    750 mm
  • Depth
    110 mm
  • Number of poles
    3
  • Busbar height
    10 mm
  • Max. rated current
    715 A
  • Width
    250 mm
  • With cover
    Yes
  • Busbar distance
    185 mm
  • Busbar thickness
    40 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 3,099 3,100 211,000
Width (m) 0,260 0,510 0,800
Length (m) 0,120 0,068 0,945
Depth (m) 0,760 0,610 1,200
