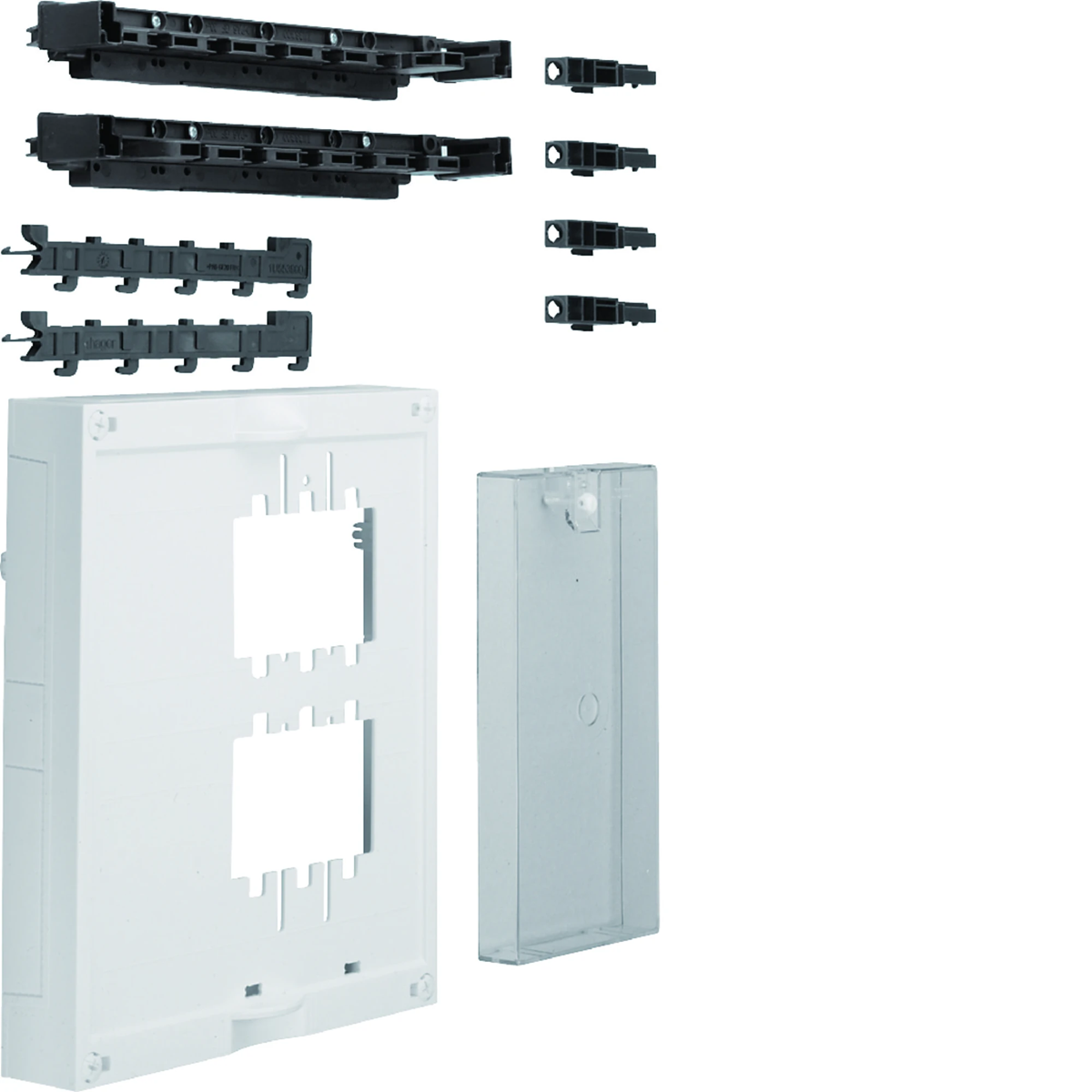

UNIVERS N Block for horizontal busbars 12x5/10mm 40mm 1xNH00 6-pole 300x250mm UE21A8
local index:
RRR1R4HAGE
Catalog number:
UE21A8
EAN code:
3250616150720
Price:
383,24 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Block for horizontal busbars, for NH00 6-pole, 12x5/10mm, univers N series, i.e. the switchgear building system.
Technical data
-
Depth [mm]125
-
Fixingscrewed
-
Width [mm]250
-
PKWIU27.12.40.0
-
ColorWhite
-
FamilyUNIVERS N
-
Height [mm]300
Other technical data
-
Height300 mm
-
Depth125 mm
-
Plastic cover plateYes
-
Suitable for switch disconnectorNo
-
Suitable for power circuit breakerNo
-
Suitable for no-voltage switchNo
-
Suitable for reverserNo
-
Rated operation current355 A
-
With auxiliary terminalNo
-
Width250 mm
-
With coverYes
-
Number of poles6
-
Equipped with switch disconnectorNo
-
Equipped with power circuit-breakerNo
-
Equipped with no-voltage switchNo
-
Equipped with reverserNo
-
Number of switches1
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Paleta | Karton | Paleta |
| Quantity | 1 pcs. | 96 pcs. | 1 pcs. | 96 pcs. |
| Weight (kg) | 0,938 | 115,048 | 0,938 | 115,048 |
| Width (m) | 0,260 | 0,800 | 0,260 | 0,800 |
| Length (m) | 0,080 | 0,830 | 0,080 | 0,830 |
| Depth (m) | 0,310 | 1,200 | 0,310 | 1,200 |
