Switchboards and enclosures
Switchgear accessories
el12
sale
El12 and HAGER

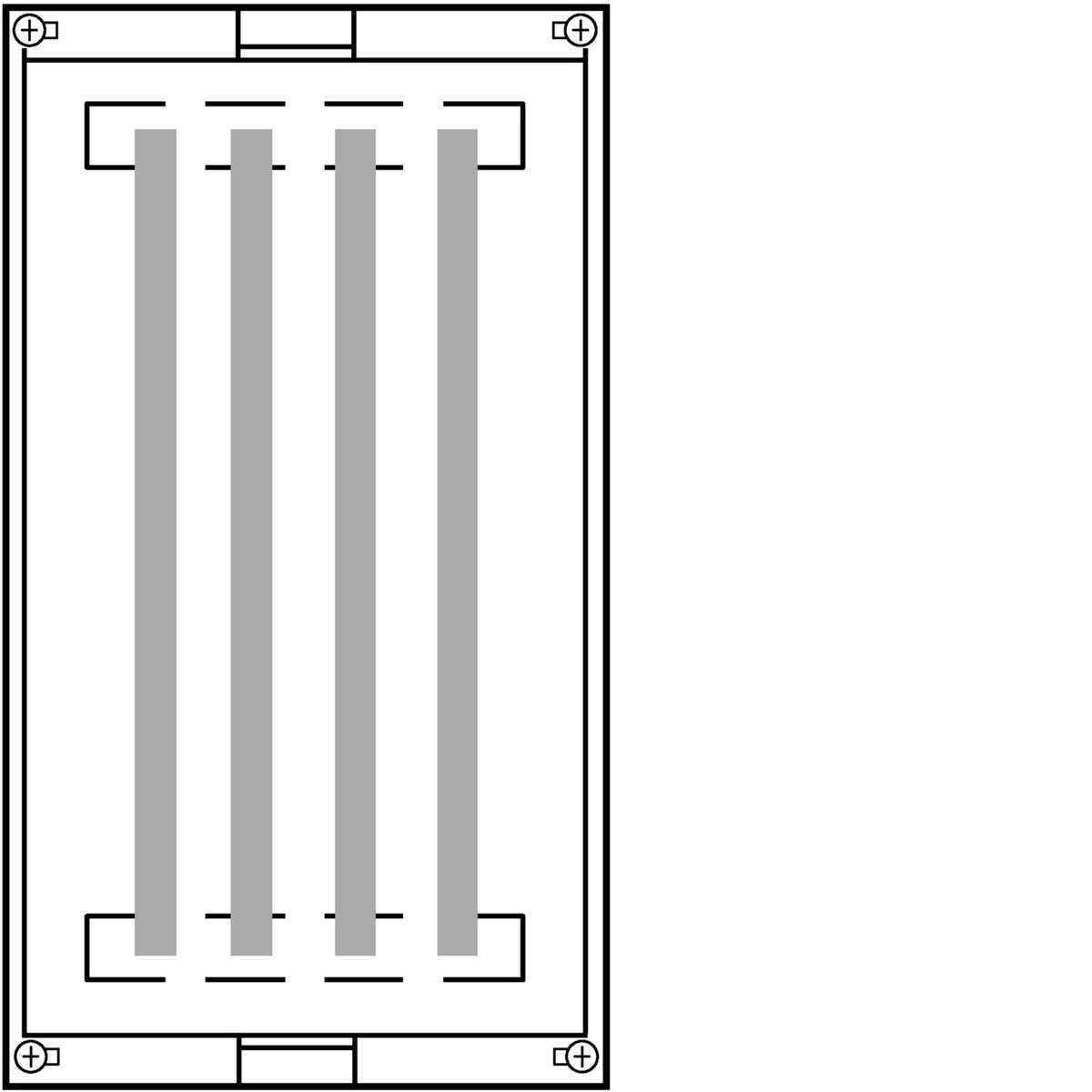

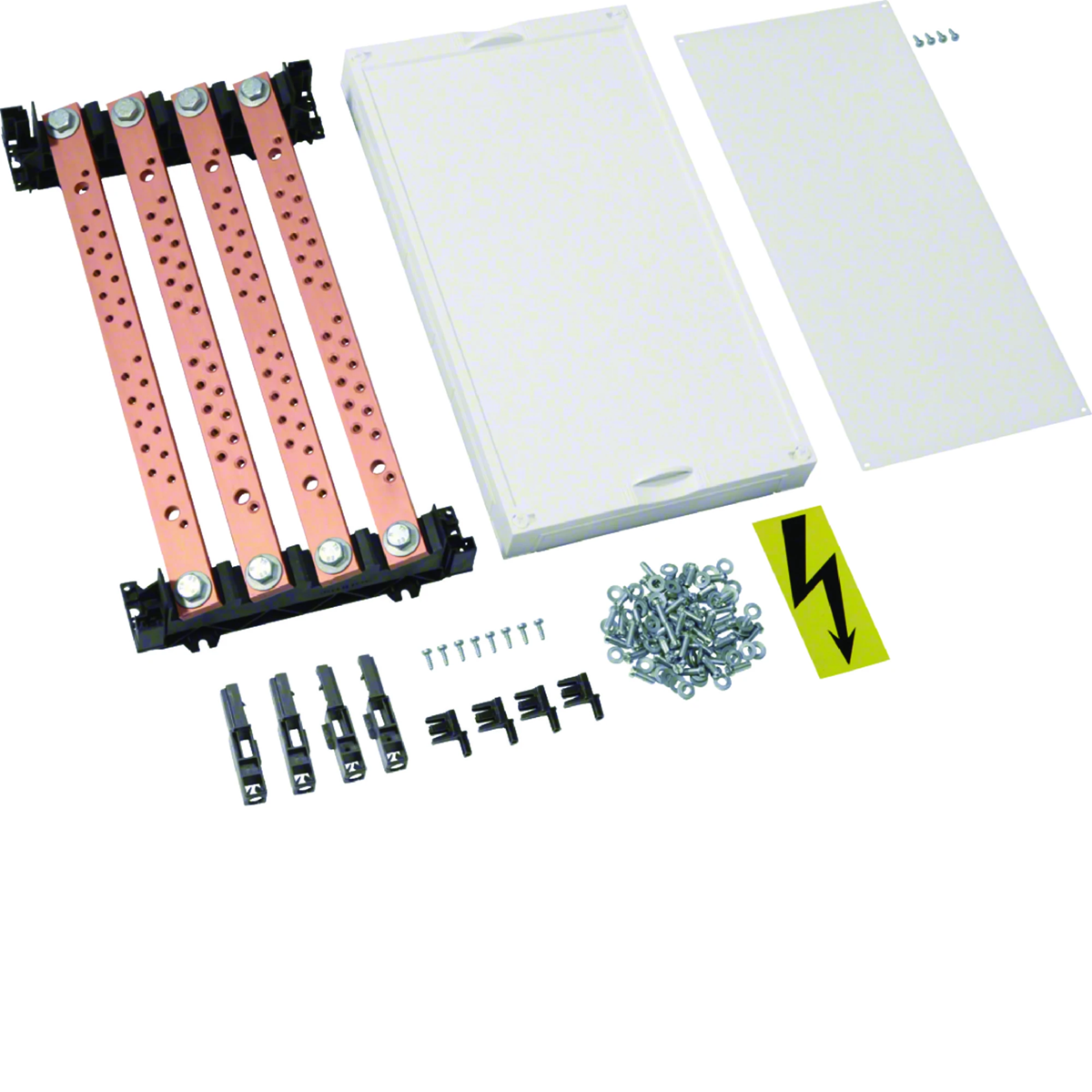

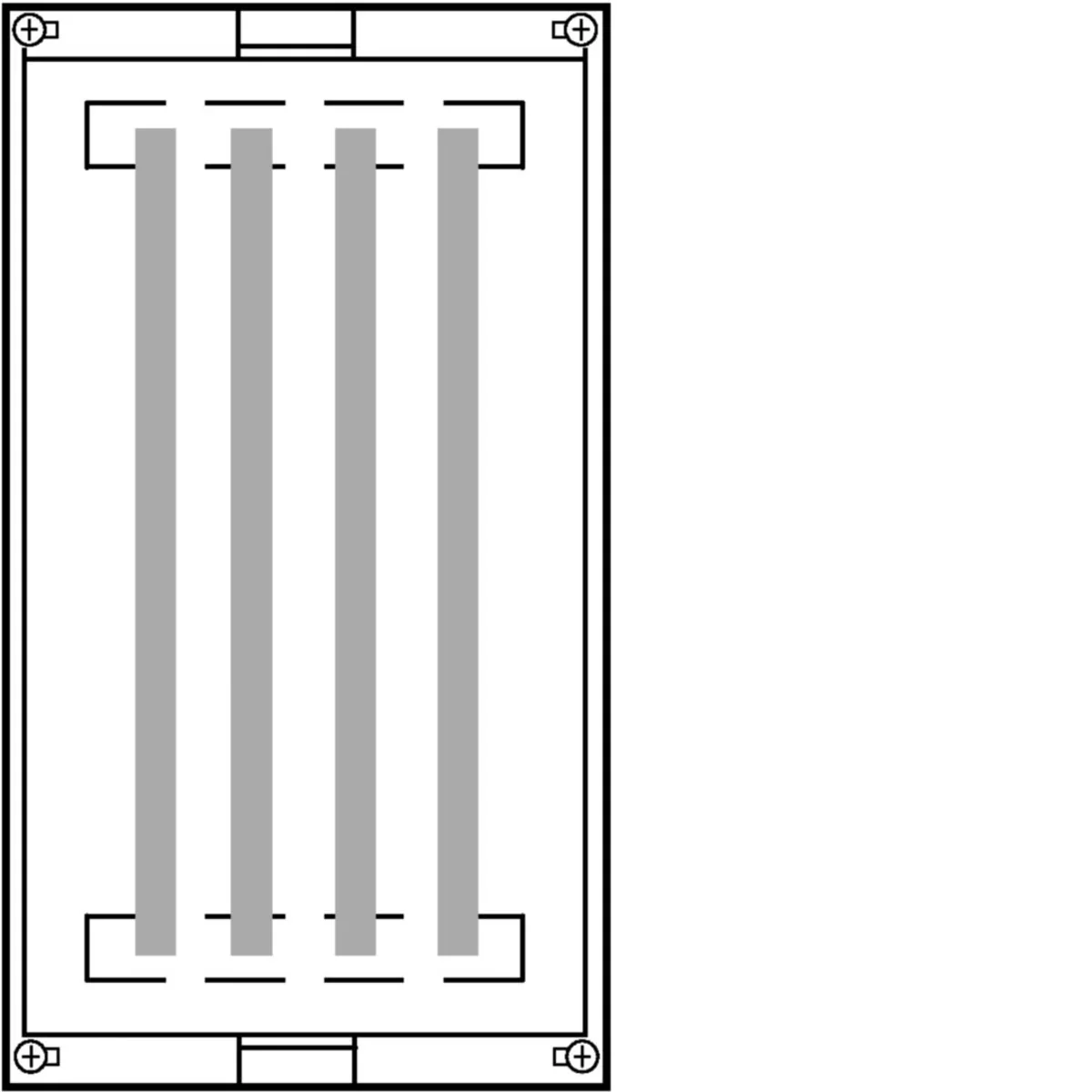

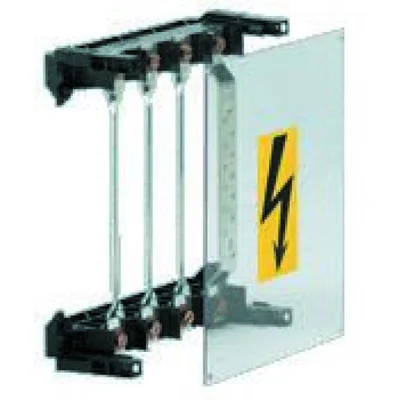

UNIVERS N block for busbars vertical. 50mm with 4xUM30A4 450x250mm rails UE31D6
local index:
RRR166HAGE
Catalog No:
UE31D6
EAN code:
3250616151024
Click on the photo to enlarge
Manufacturer:
HAGER
Depth [mm]:
125
Color:
White
Number of poles:
4
See full description
Price:
426,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Sub-assemblies with busbars, vertical 4-pole solid cover, galvanized bars.
Technical data
Depth [mm]
125
Number of poles
4
Width [mm]
250
Accurate color
White
Color
White
Rated current [A]
630
Height [mm]
450
PKWIU
27.12.40.0
Other technical data
Height
450 mm
Depth
125 mm
Number of poles
4
Busbar height
10 mm
Max. rated current
630 A
Width
250 mm
With cover
Yes
Busbar distance
50 mm
Busbar thickness
30 mm
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
66 pcs.
Weight (kg)
6,339
6,340
443,440
Width (m)
0,250
0,265
0,800
Length (m)
0,090
0,120
1,220
Depth (m)
0,450
0,460
1,200
