UNIVERS N block for busbars pos. 12/20/30x5/10mm 60mm 1 pole 150x500mm UE12E0

Name: UNIVERS N block for busbars pos. 12/20/30x5/10mm 60mm 1 pole 150x500mm
Brand: HAGER
SKU: RRR167HAGE
Price: 295.16 PLN
Availability: BackOrder

local index:

RRR167HAGE

Catalog No:

UE12E0

EAN code:

3250616150751

UNIVERS N block for busbars pos. 12/20/30x5/10mm 60mm 1 pole 150x500mm

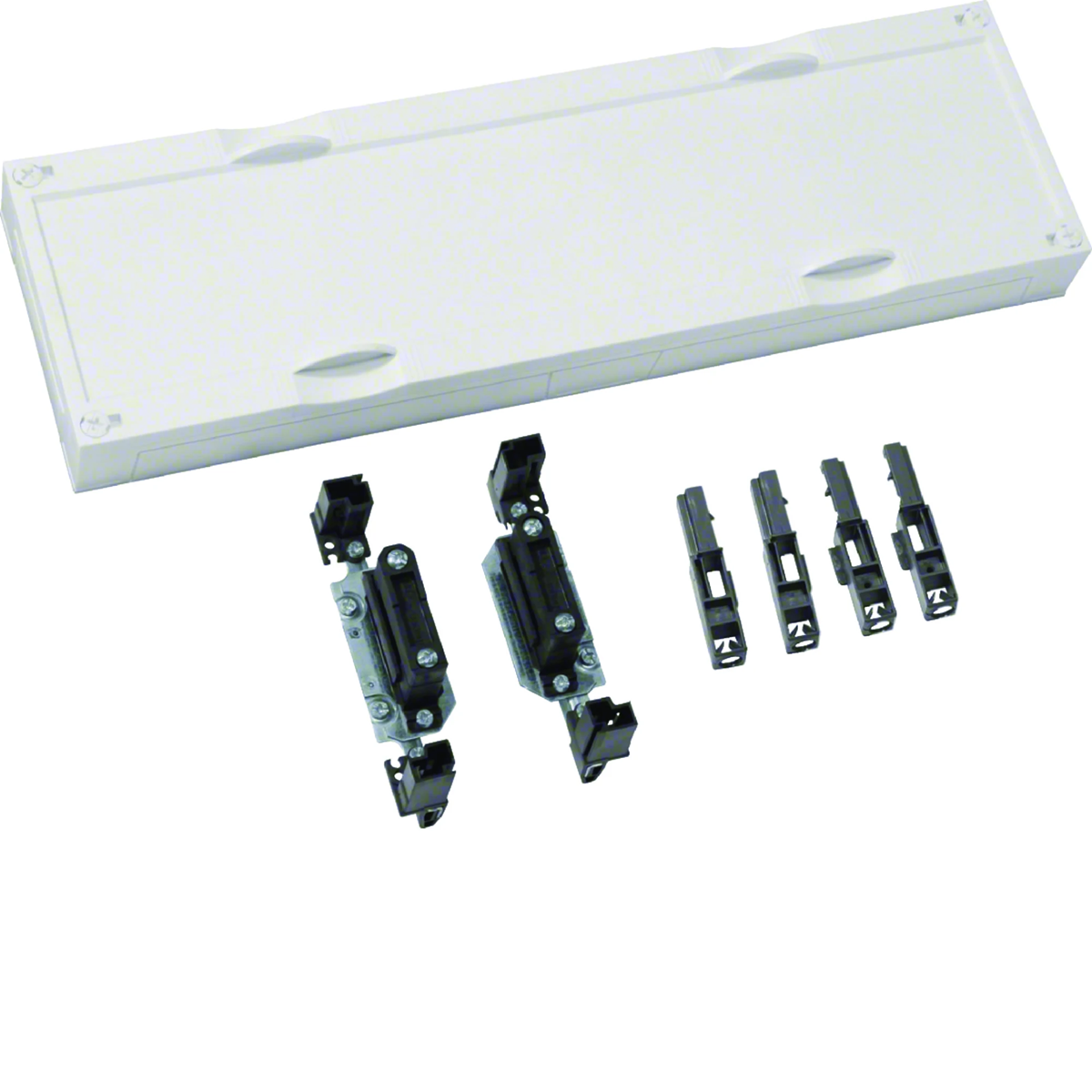

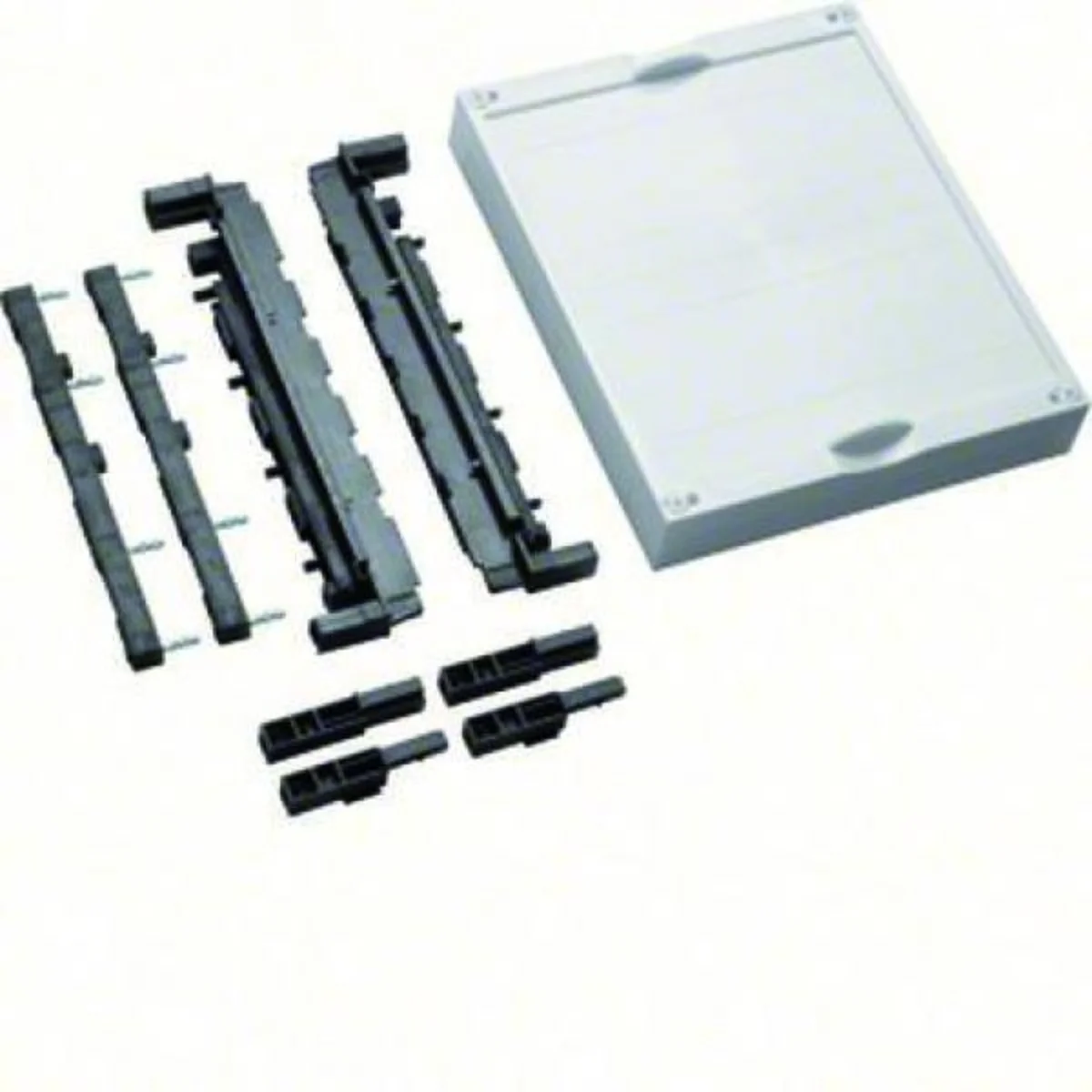

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 125

Color: White

Number of poles: 1

See full description

Price:

295,16 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Sub-assembly with solid cover, with support for busbars 12x5/10, 20x5/10, 30x5/10 mm, 4-pole, 60 mm spacing.

Technical data

Depth [mm]

125
Number of poles

1
Height [mm]

150
PKWIU

27.12.40.0

Color

White
Width [mm]

500
Accurate color

White

Other technical data

Height

150 mm
Depth

110 mm
Number of poles

1
Busbar height

20 mm

Width

500 mm
With cover

Yes
Busbar distance

60 mm
Busbar thickness

5 mm

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta	Karton	Paleta
Quantity	1 pcs.	100 pcs.	1 pcs.	100 pcs.
Weight (kg)	0,700	70,000	0,700	70,000
Width (m)	0,160	0,800	0,160	0,800
Length (m)	0,060	0,990	0,060	0,990
Depth (m)	0,510	1,200	0,510	1,200
