UNIVERS N block for 8x12PLE horizontally mounted modular cameras UD42B1

local index:
RRR177HAGE
Catalog No:
UD42B1
EAN code:
3250616141322
Manufacturer: HAGER
Depth [mm]: 125
Number of modules: 96
Number of rows: 4
Price:
208,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

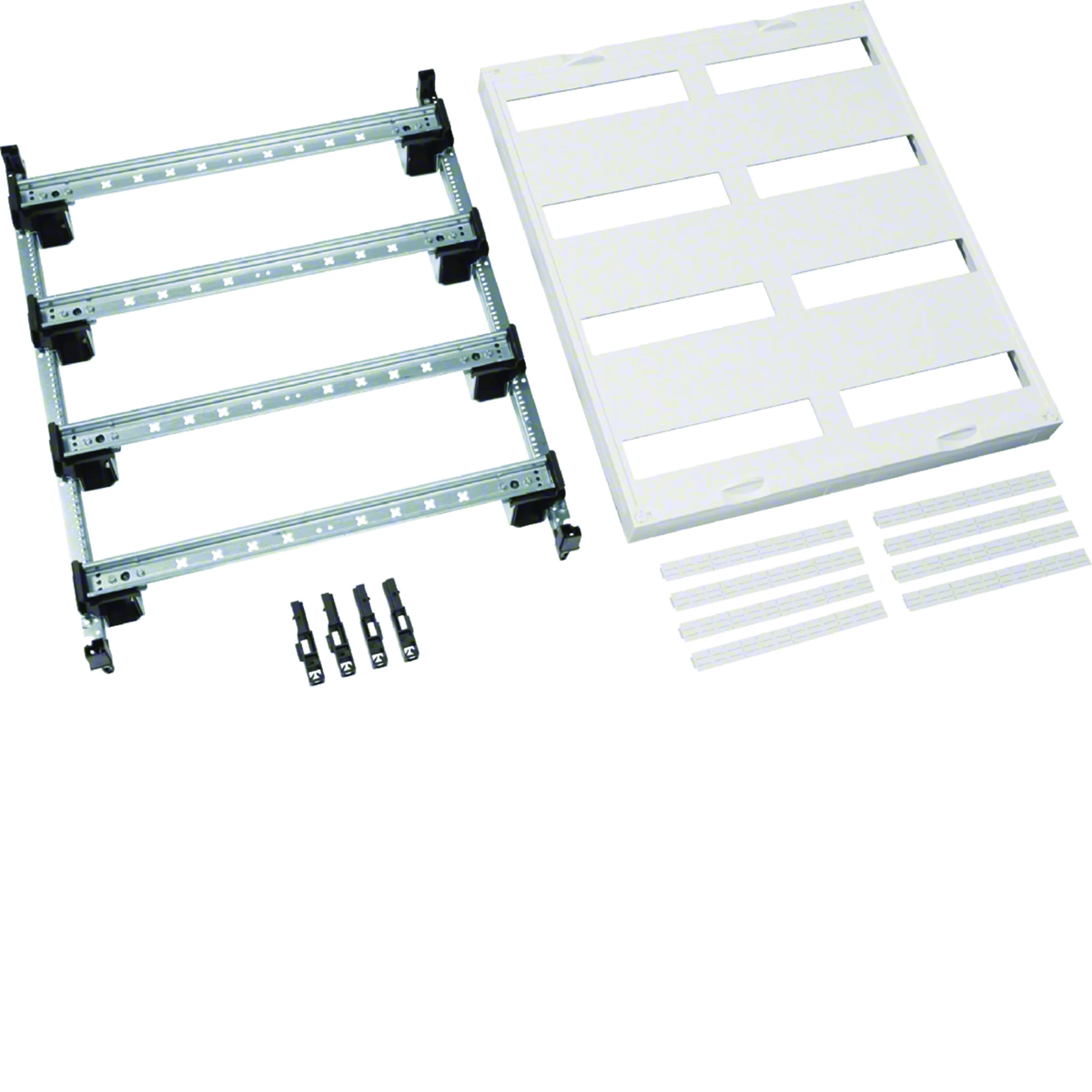

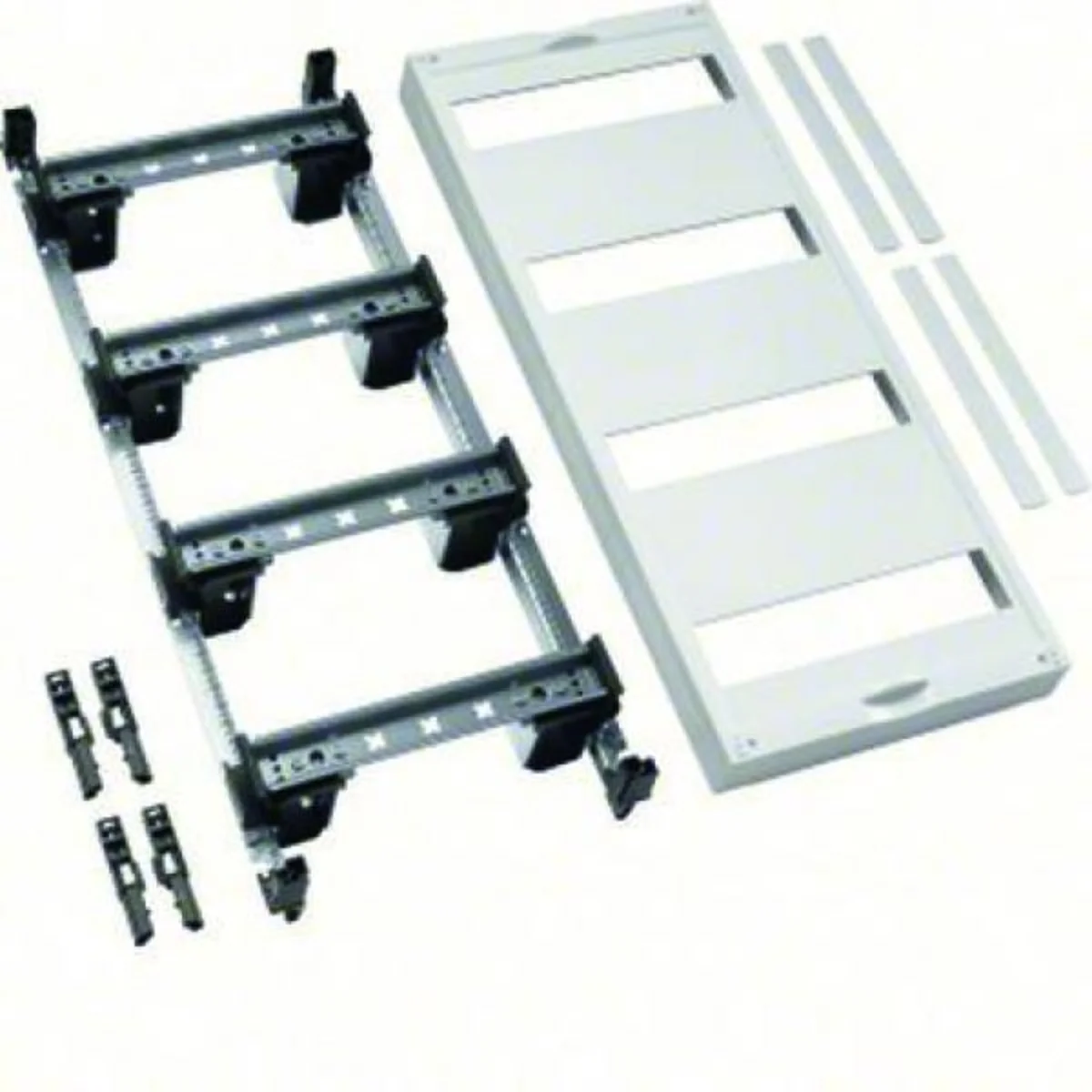

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular apparatus
Content:
- TS35 horizontal mounting rails
- TS35 mounting rail level: high
- with vertical guidance
cables - height 600 mm

Technical data

  • Depth [mm]
    125
  • Number of rows
    4
  • Width [mm]
    500
  • Number of modules
    96
  • PKWIU
    27.12.40.0
  • Number of modules
    96
  • Color
    White
  • Height [mm]
    600
  • Accurate color
    White

Other technical data

  • Height
    600 mm
  • Depth
    125 mm
  • Number of modular spacings per DIN-rail
    96
  • Extension possible
    Yes
  • Width
    500 mm
  • Number of DIN-rails
    4
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 16 pcs.
Weight (kg) 4,300 4,520 97,320
Width (m) 0,510 0,510 0,800
Length (m) 0,610 0,120 1,110
Depth (m) 0,115 0,610 1,200
