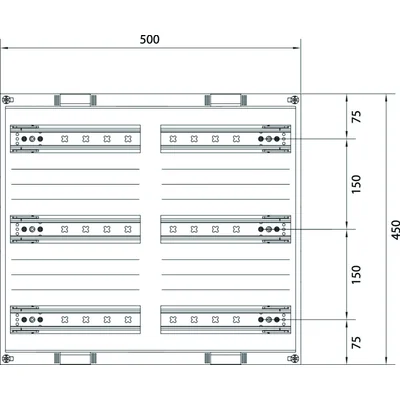

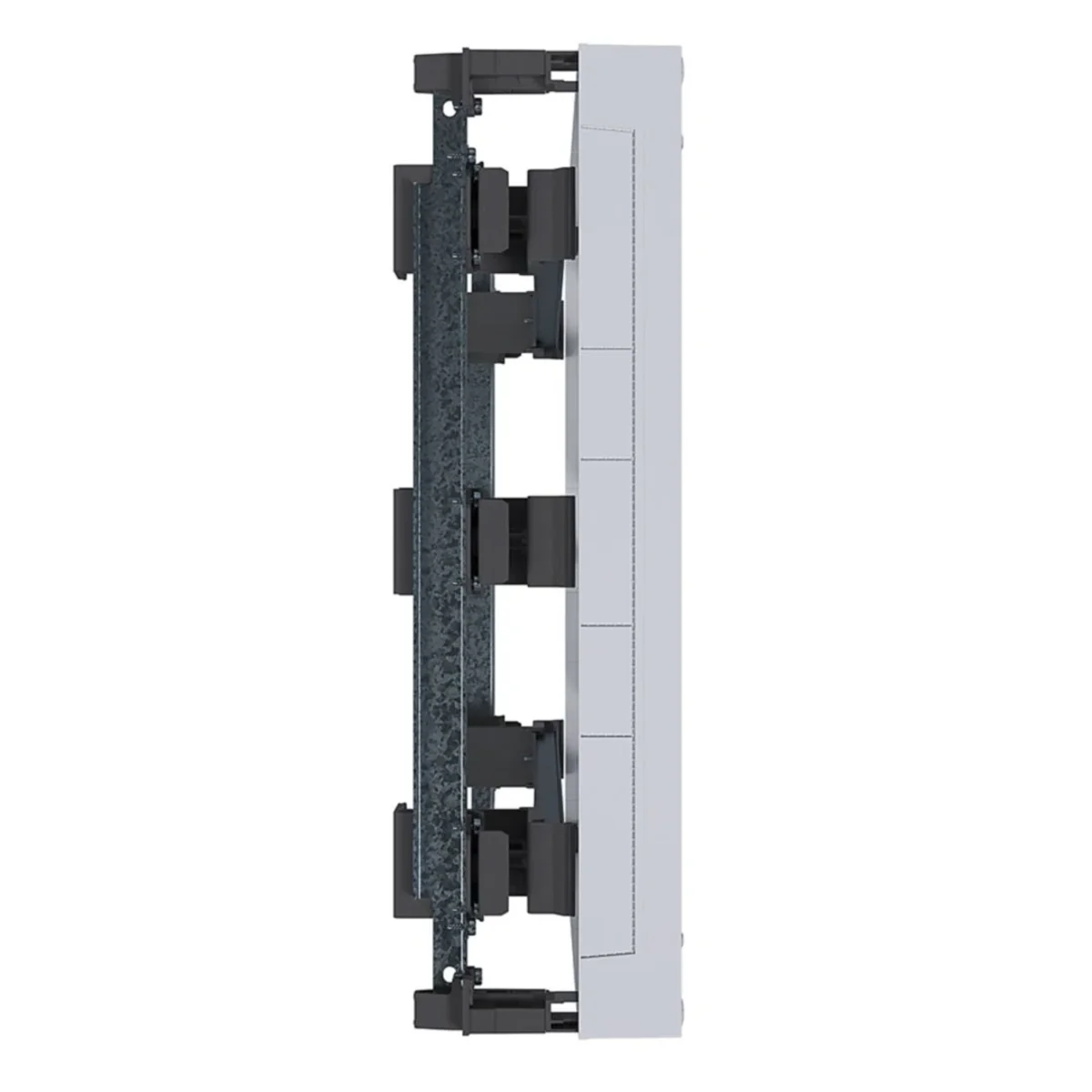

UNIVERS N block for 6x12PLE horizontally mounted modular cameras UD32B1

local index:
RRR098HAGE
Catalog No:
UD32B1
EAN code:
3250616141285
Manufacturer: HAGER
Depth [mm]: 125
Number of modules: 72
Number of rows: 3
Price:
129,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

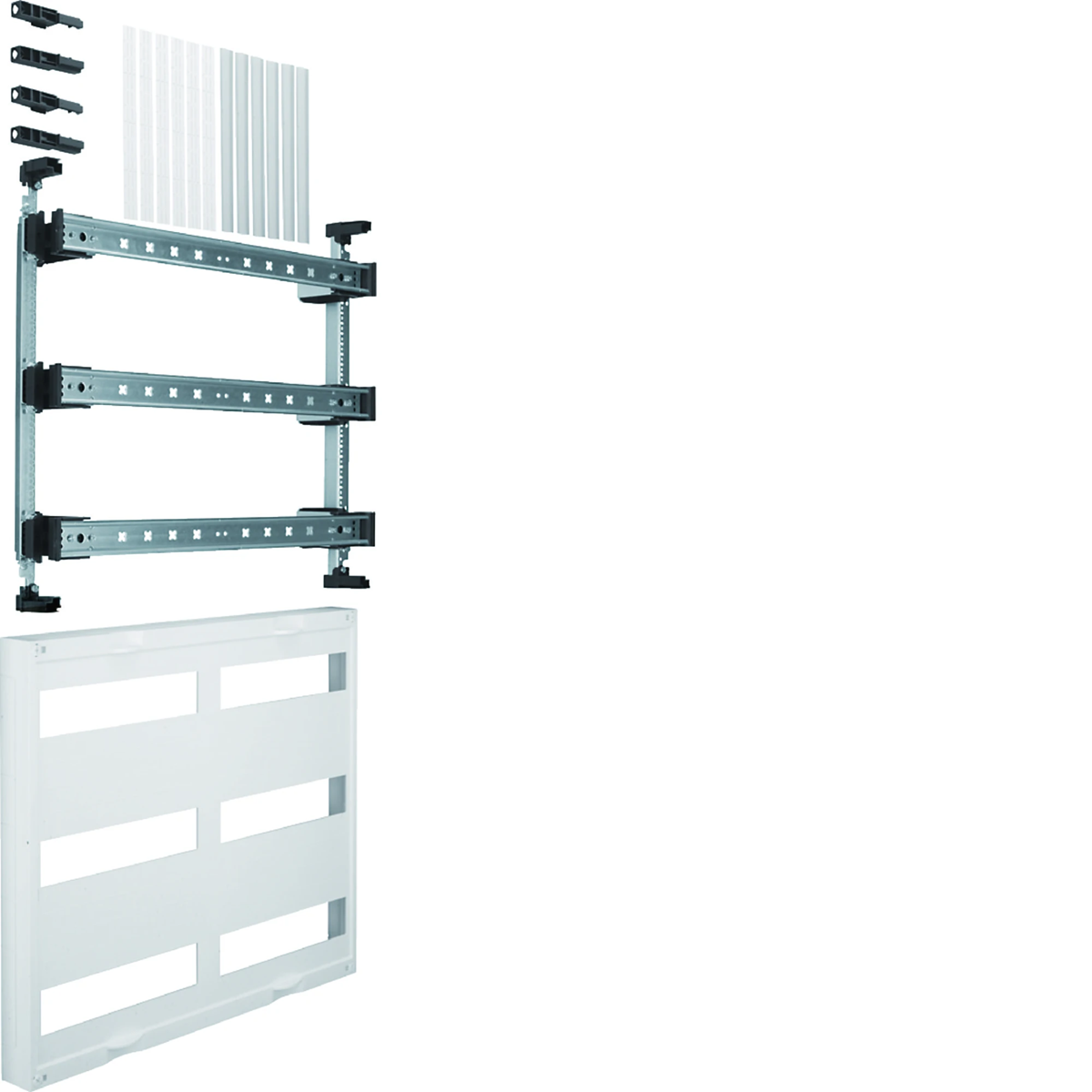

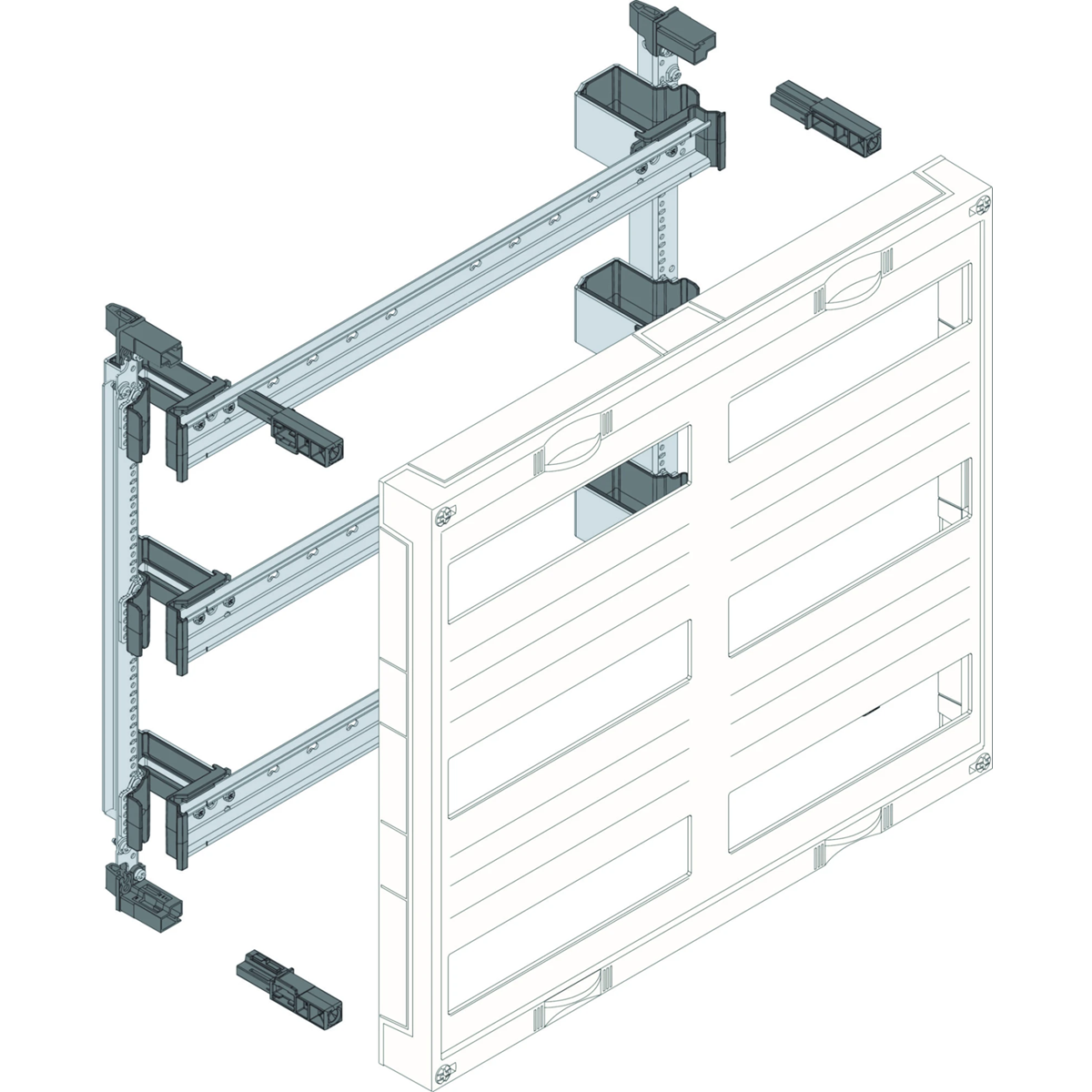

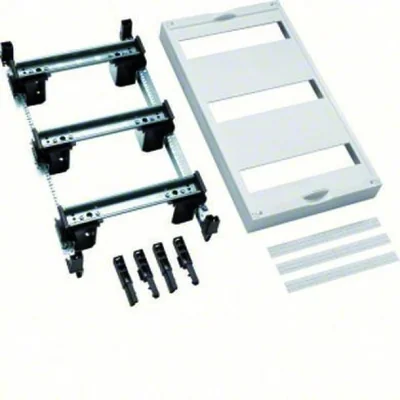

Product description

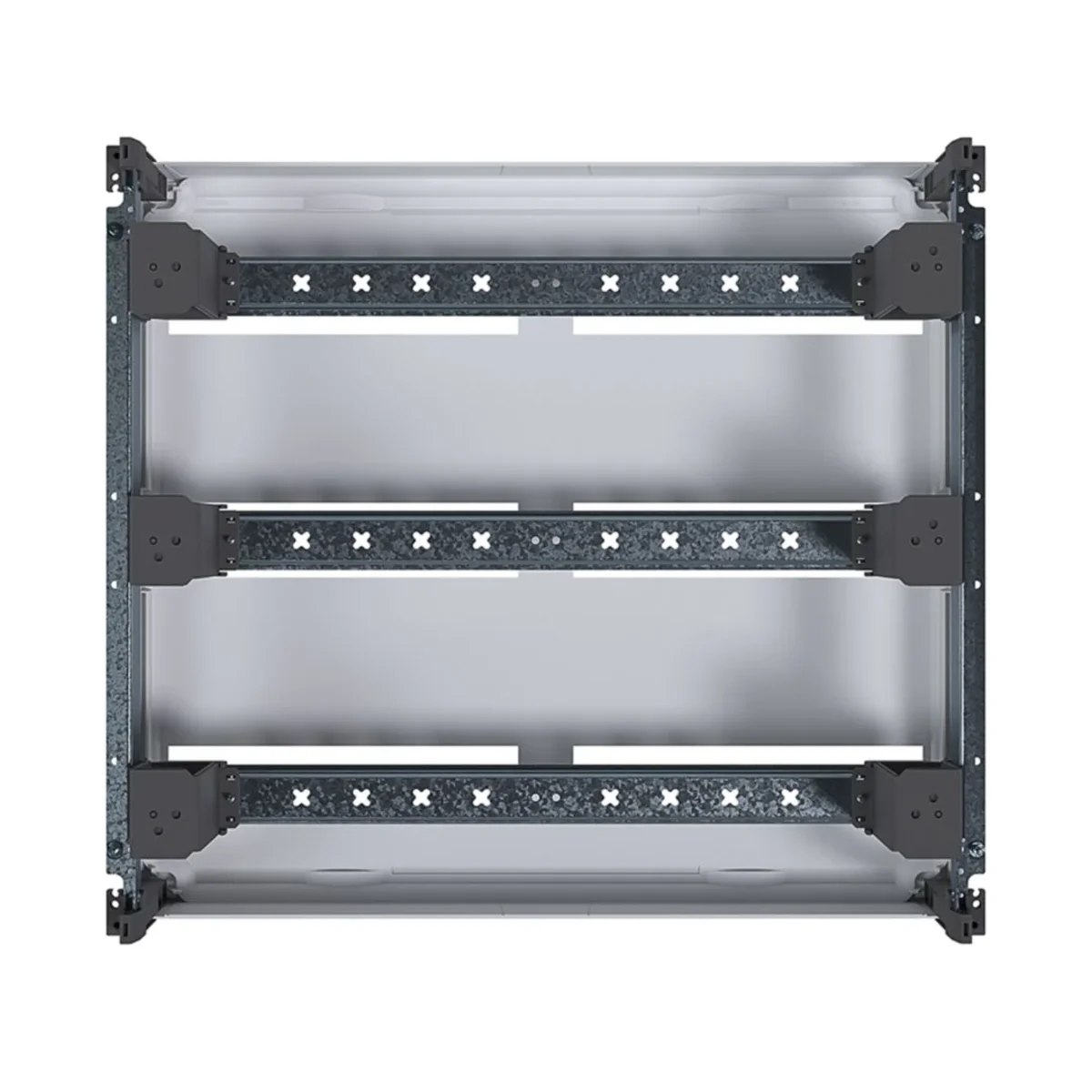

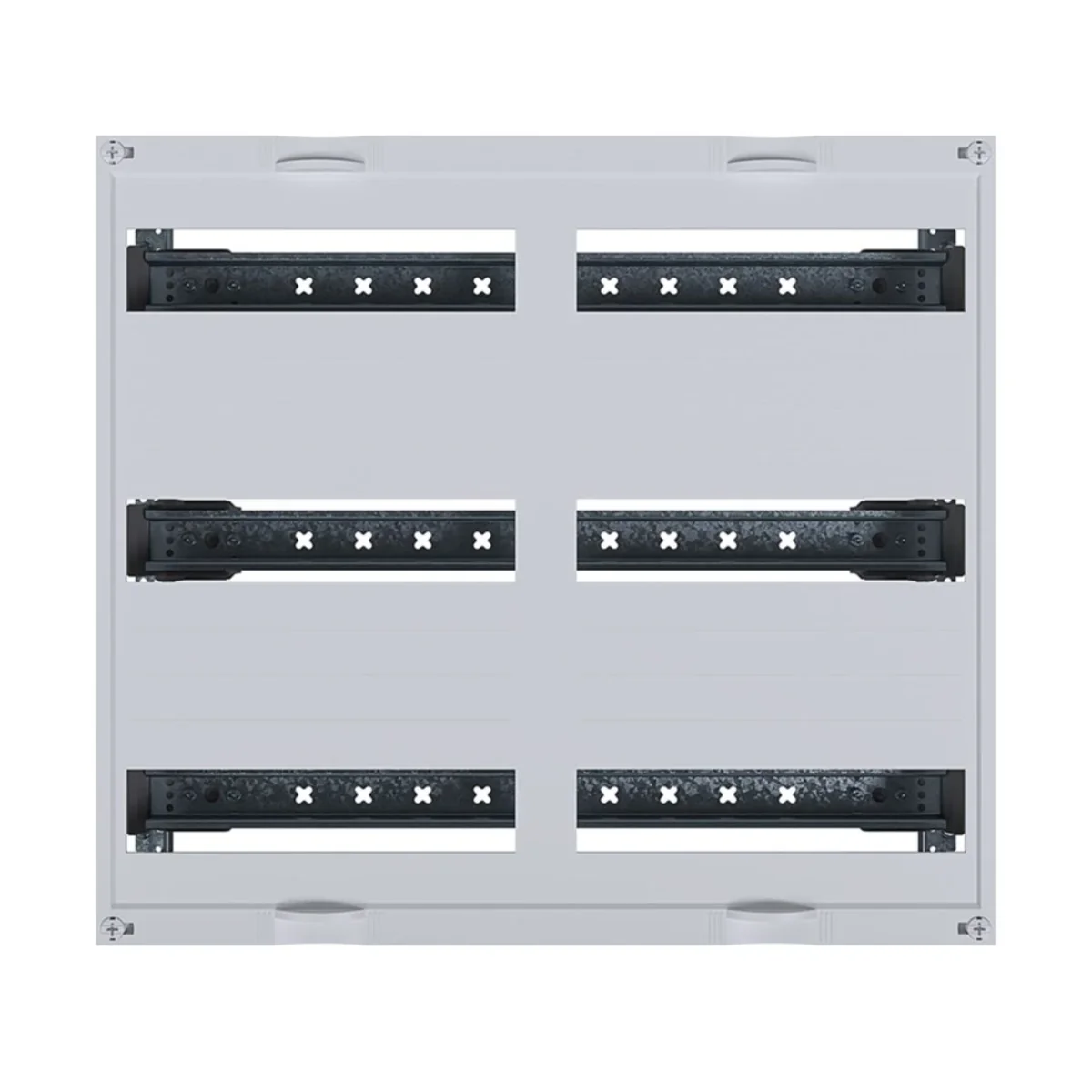

Sub-assembly with cover with cut-out, with TS35 horizontal mounting rails, for modular devices
Content:
- TS35 horizontal mounting rails
- TS35 mounting rail level: high
- with vertical guidance wires
- height 450 mm

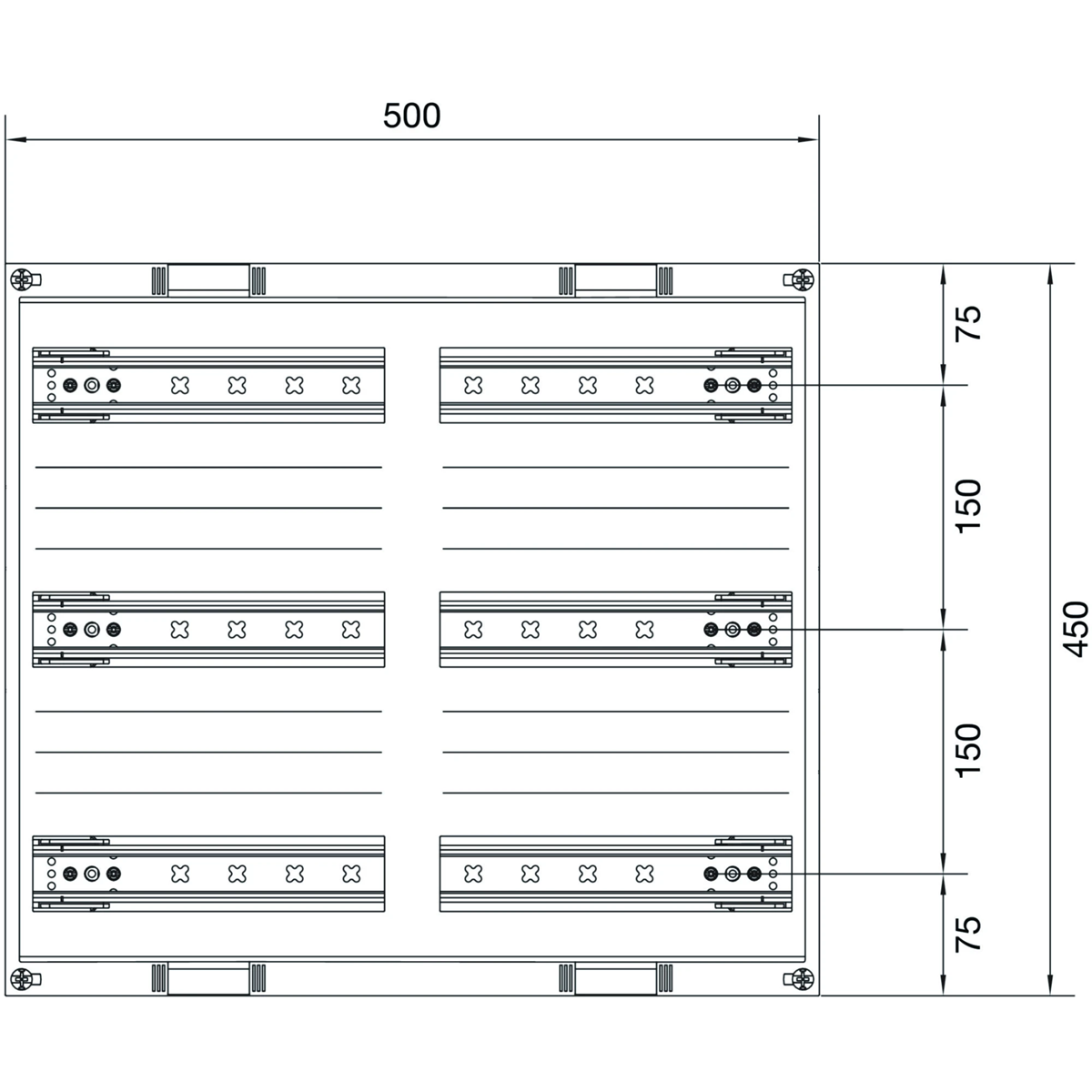

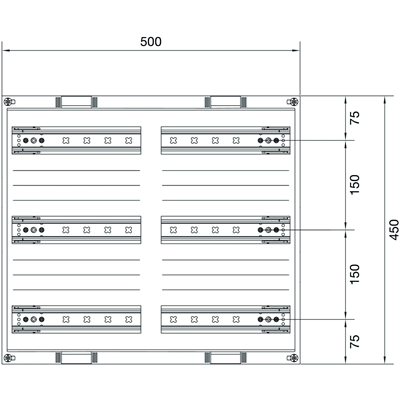

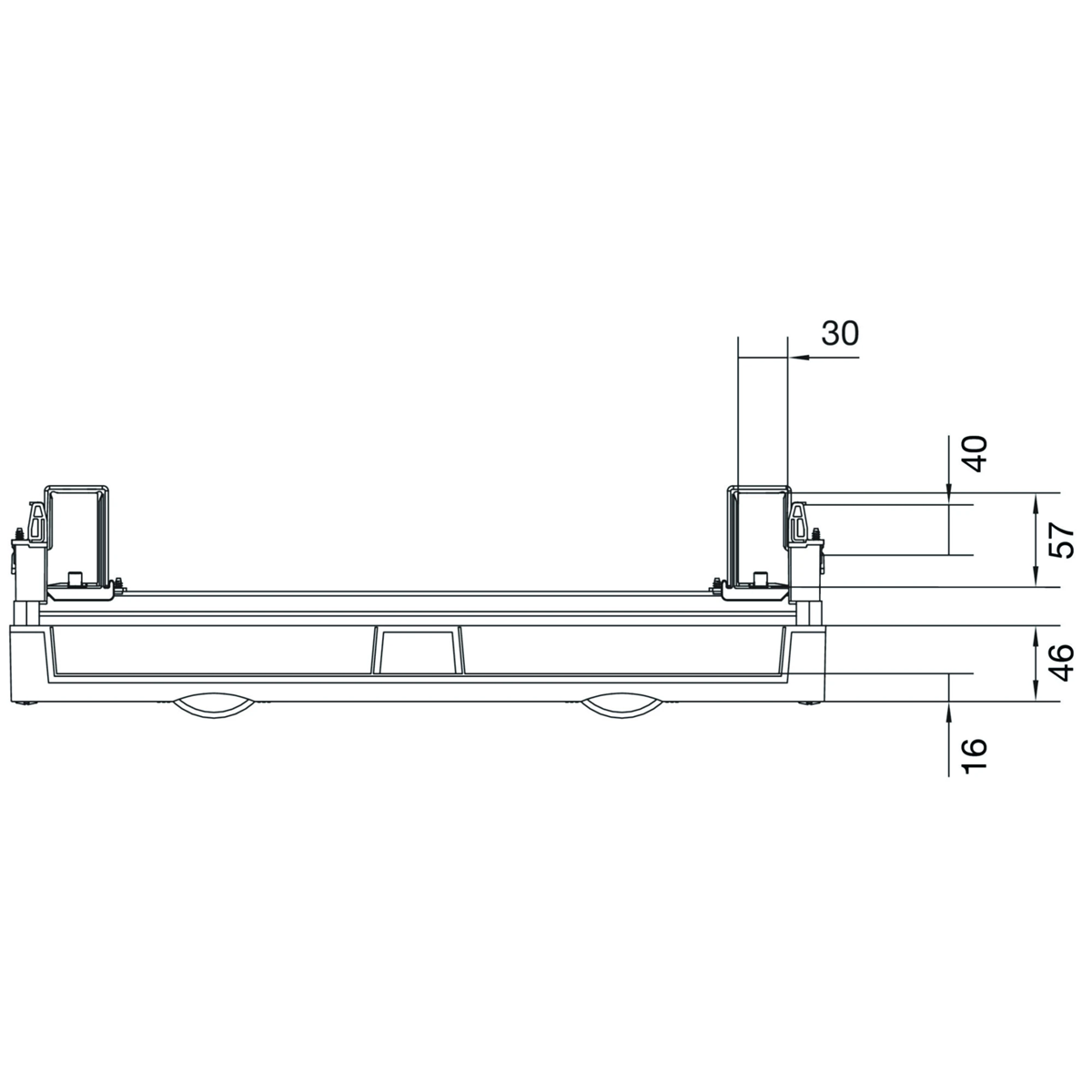

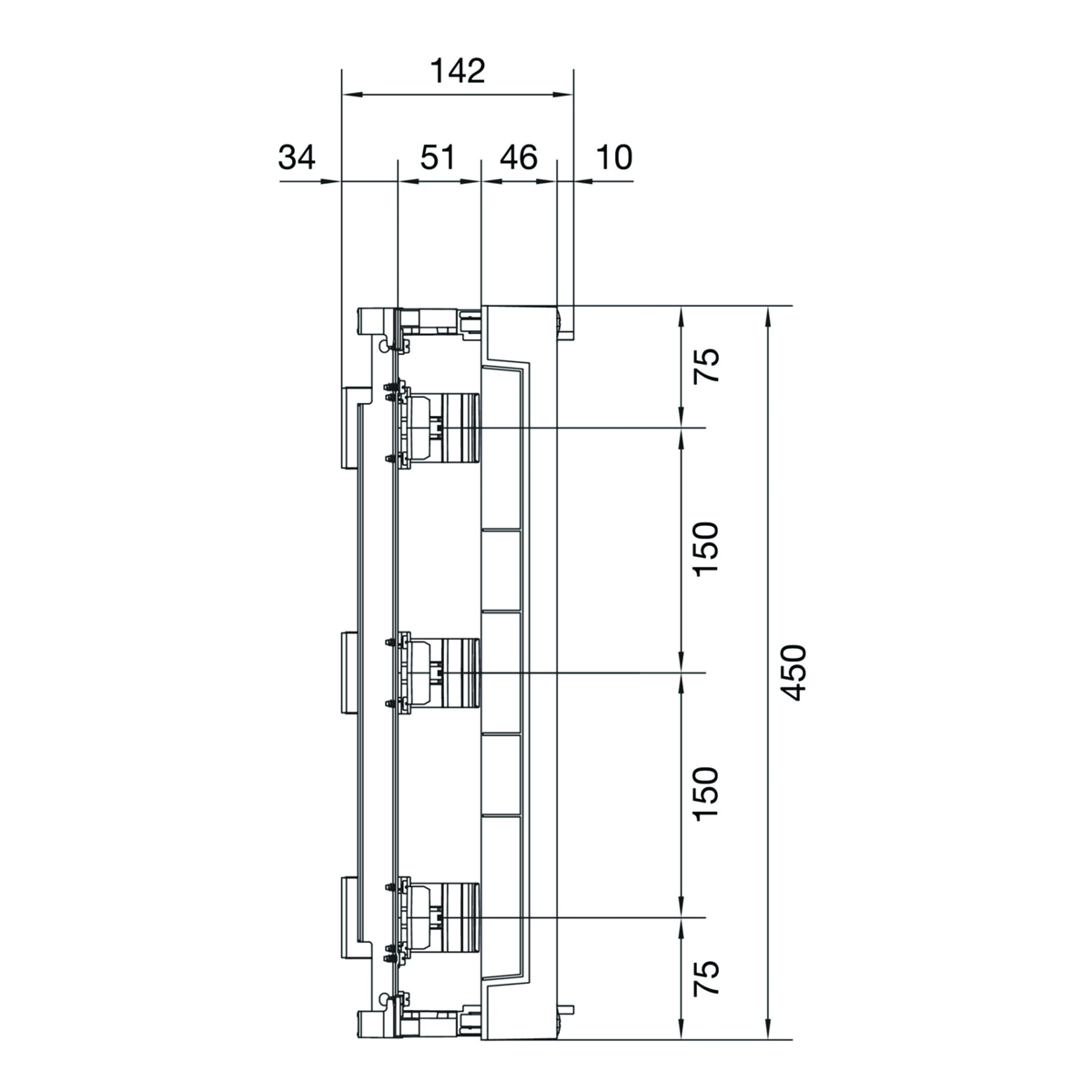

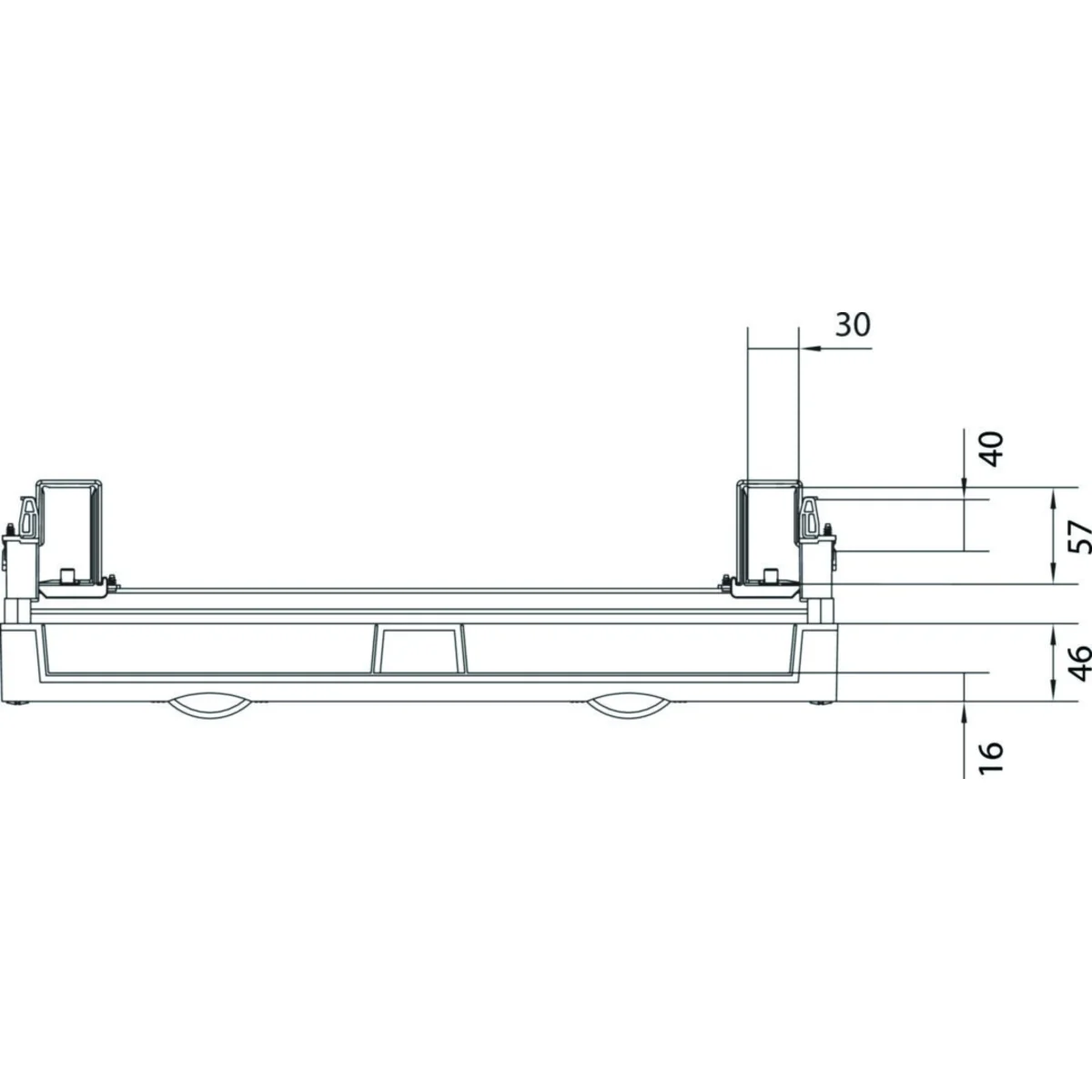

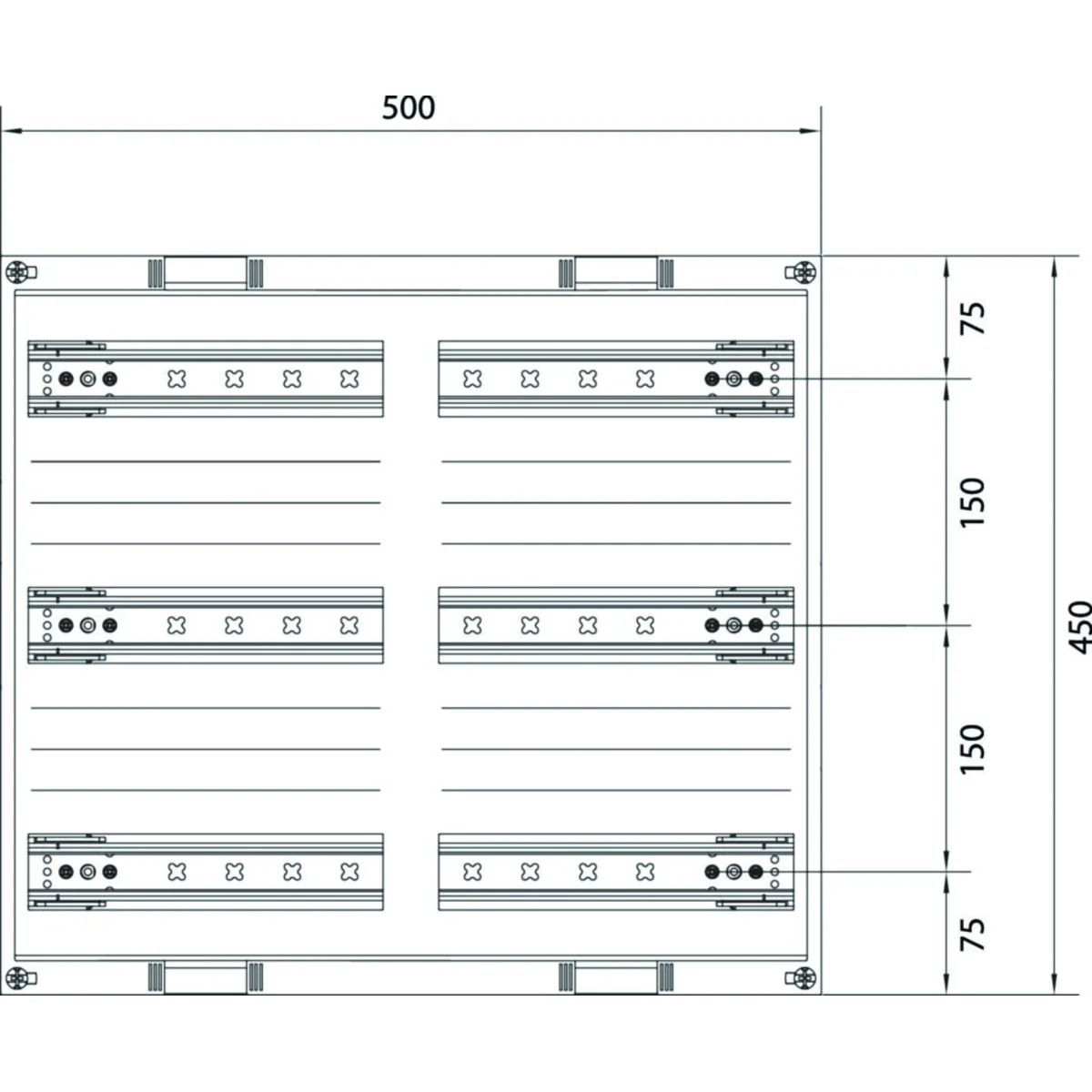

Technical data

  • Depth [mm]
    125
  • Number of rows
    3
  • Width [mm]
    500
  • Number of modules
    72
  • PKWIU
    27.12.40.0
  • Number of modules
    72
  • Color
    White
  • Height [mm]
    450
  • Accurate color
    White

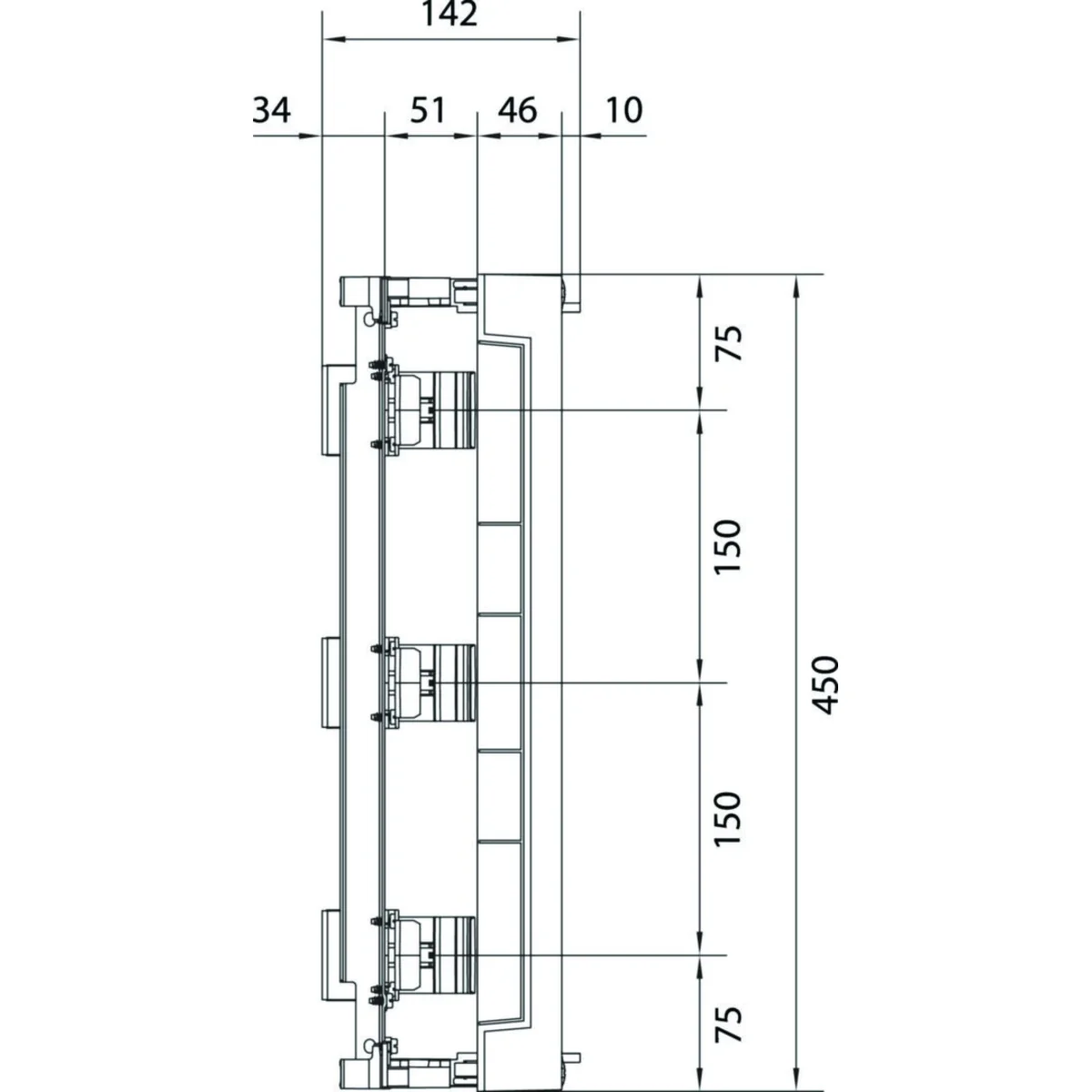

Other technical data

  • Height
    450 mm
  • Depth
    125 mm
  • Number of modular spacings per DIN-rail
    72
  • Extension possible
    Yes
  • Width
    500 mm
  • Number of DIN-rails
    6
  • Row distance
    150 mm
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 30 pcs.
Weight (kg) 2,900 3,240 122,200
Width (m) 0,510 0,465 0,800
Length (m) 0,120 0,120 1,235
Depth (m) 0,465 0,510 1,200
