UNIVERS N Block for 630A power switches 450x500mm UK32V1

local index:
RRR1V6HAGE
Catalog No:
UK32V1
EAN code:
3250616211100
Manufacturer: HAGER
Depth [mm]: 135
Color: White
Family: UNIVERS N
Price:
166,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

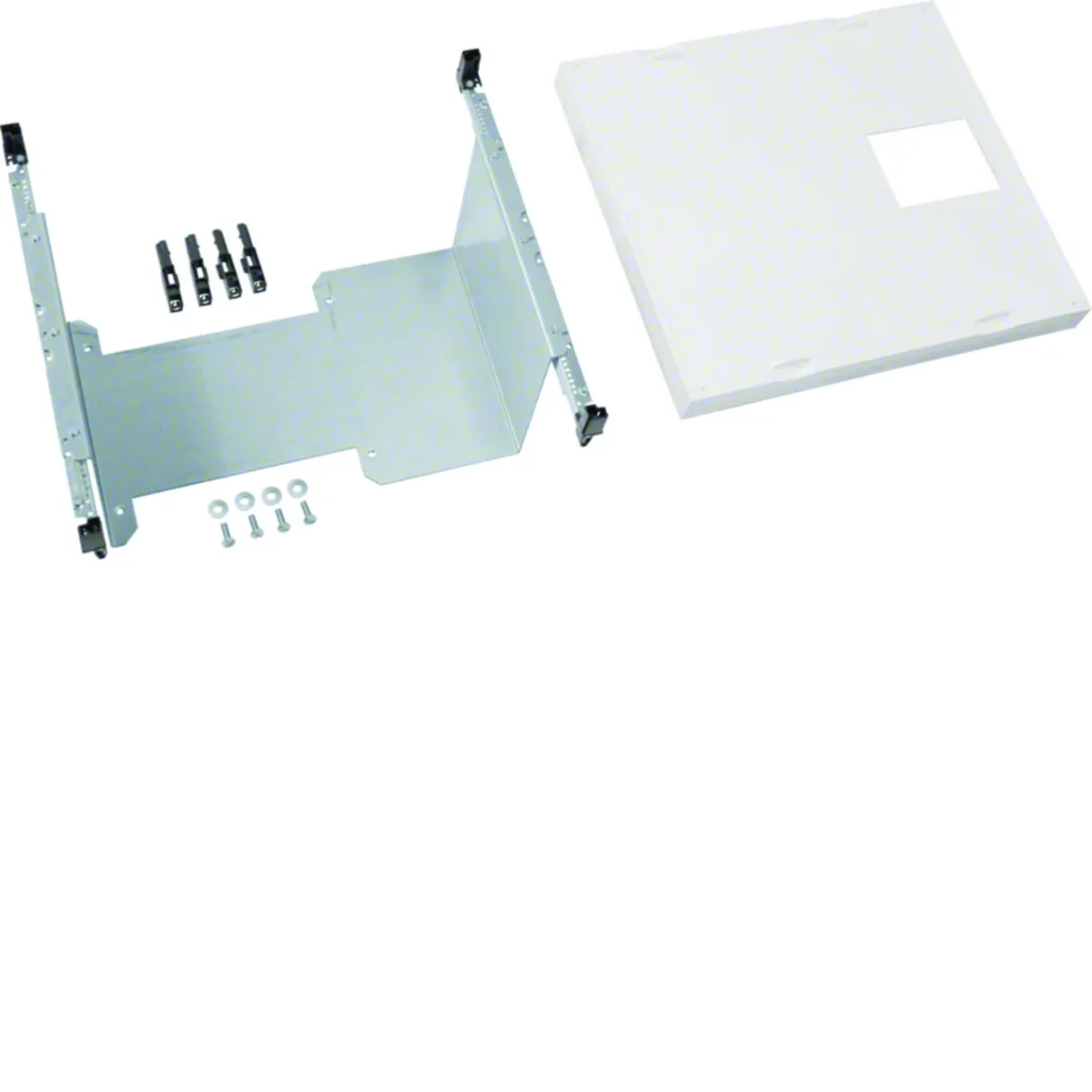

Block with a cover with a cut-out for power switches 630A, with a motor drive, from the univers N series, i.e. a switchgear enclosure system.

Technical data

  • Depth [mm]
    135
  • Family
    UNIVERS N
  • Height [mm]
    450
  • PKWIU
    27.12.40.0
  • Color
    White
  • Width [mm]
    500
  • Number of sections
    1

Other technical data

  • Height
    450 mm
  • Depth
    135 mm
  • Plastic cover plate
    Yes
  • Equipped with switch disconnector
    No
  • Equipped with power circuit-breaker
    No
  • Equipped with no-voltage switch
    No
  • Equipped with reverser
    No
  • Number of switches
    1
  • Width
    500 mm
  • With cover
    Yes
  • Suitable for switch disconnector
    No
  • Suitable for power circuit breaker
    No
  • Suitable for no-voltage switch
    Yes
  • Suitable for reverser
    Yes
  • Rated operation current
    630 A
  • With auxiliary terminal
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 6,500 6,600 64,600
Width (m) 0,520 0,520 0,800
Length (m) 0,325 0,325 1,120
Depth (m) 0,520 0,520 1,200
