UNIVERS N Block for 60mm horizontal busbars 4-pole 4xDII/3xDIII/6xD02 450x250mm UE31E3A

local index:
RRR1T1HAGE
Catalog No:
UE31E3A
EAN code:
3250616151130
Manufacturer: HAGER
Depth [mm]: 125
Color: White
Number of poles: 4P
Price:
188,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

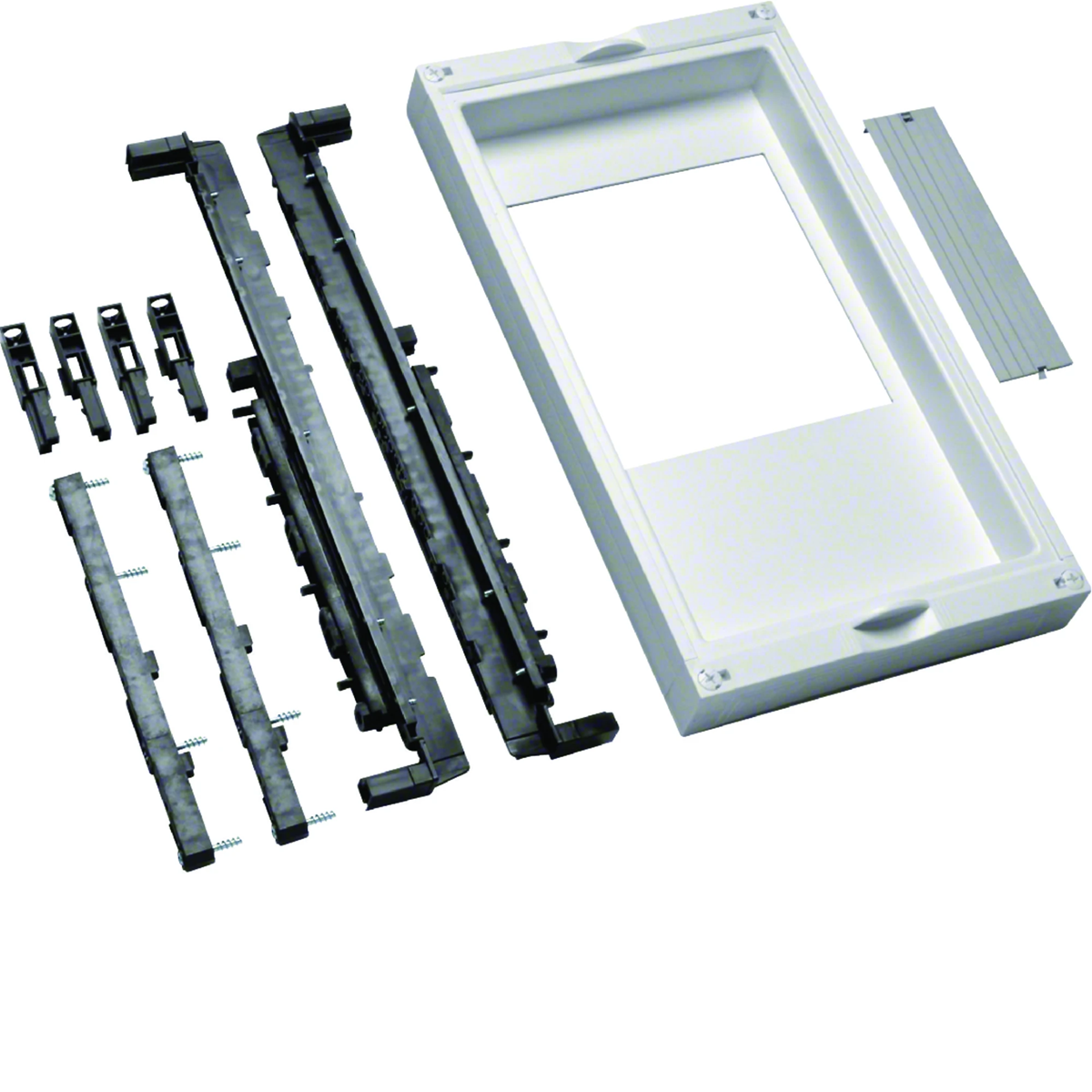

Block/subassembly with a cover with a cut-out, with a support for horizontal busbars and 4xDII/3xDIII/6xD02, from the univers N series, i.e. the switchgear building system.

Technical data

  • Depth [mm]
    125
  • Number of poles
    4P
  • Fixing
    rail system
  • Width [mm]
    250
  • Number of sections
    1
  • Busbar width [mm]
    12/20/30
  • PKWIU
    27.12.40.0
  • Color
    White
  • Material
    Plastic
  • Family
    UNIVERS N
  • Height [mm]
    450
  • The distance between the rails
    60mm
  • Busbar height [mm]
    5/10

Other technical data

  • Height
    450 mm
  • Depth
    125 mm
  • Number of poles
    4
  • Busbar height
    12 mm
  • Width
    250 mm
  • With cover
    Yes
  • Busbar distance
    60 mm
  • Busbar thickness
    5 mm

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 72 pcs.
Weight (kg) 1,300 1,461 130,192
Width (m) 0,260 0,260 0,800
Length (m) 0,100 0,100 1,120
Depth (m) 0,460 0,460 1,200
