UNIVERS N Block for 600x500mm horizontal terminal blocks UD42A1

local index:
RRR1P8HAGE
Catalog No:
UD42A1
EAN code:
3250616140998
Manufacturer: HAGER
Depth [mm]: 125
Number of rows: 4
Color: White
Price:
201,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

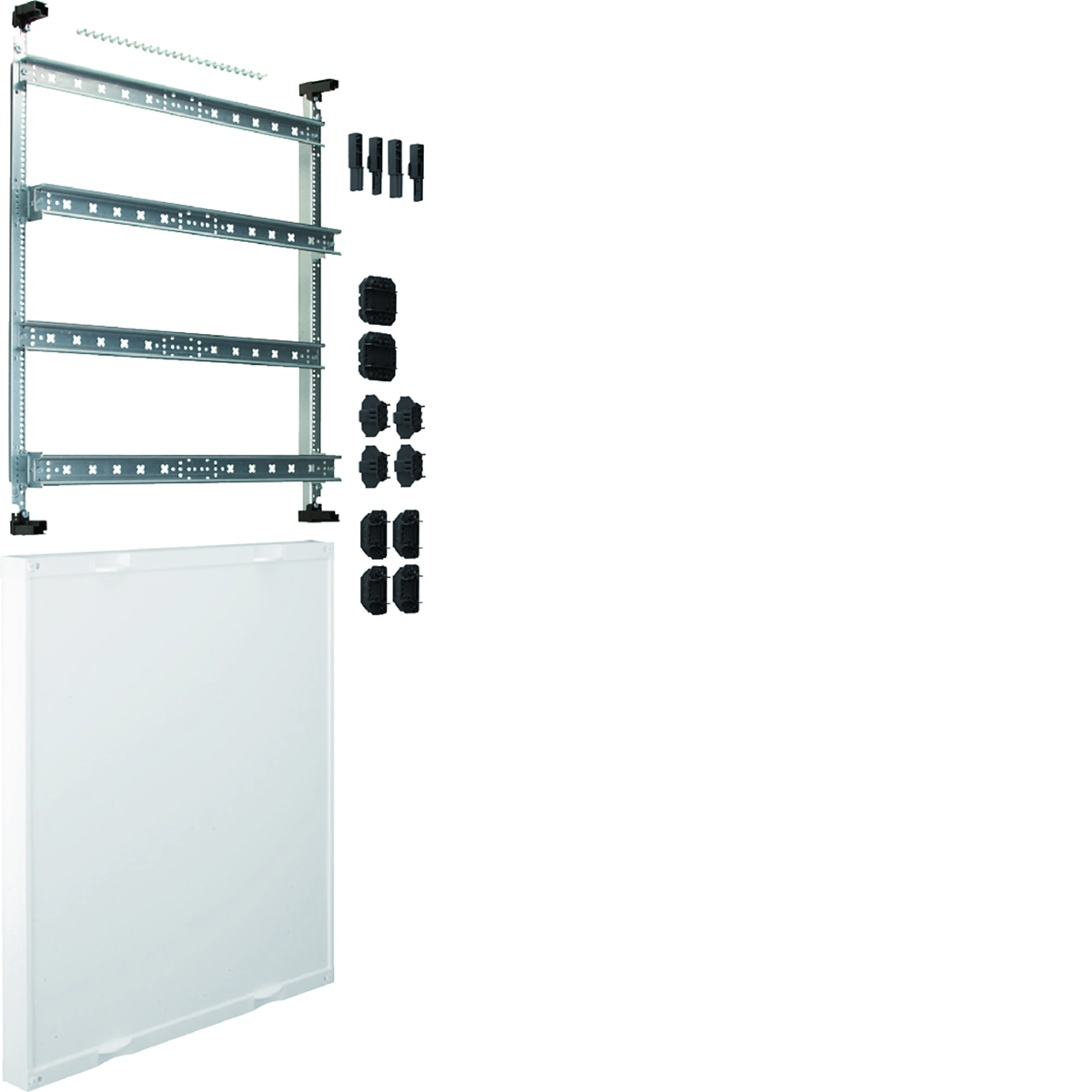

Block with a full cover for serial terminals, horizontal TS35 mounting rails, from the univers N series, i.e. the switchgear building system.

Technical data

  • Depth [mm]
    125
  • Color
    White
  • Family
    UNIVERS N
  • Height [mm]
    600
  • Number of rows for cameras
    4
  • Number of rows
    4
  • Material
    Plastic
  • Width [mm]
    500
  • Number of sections
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Height
    600 mm
  • Depth
    125 mm
  • Row distance
    150 mm
  • With busbar
    No
  • Width
    500 mm
  • Number of DIN-rails
    4
  • Extension possible
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 15 pcs.
Weight (kg) 3,970 4,020 85,300
Width (m) 0,510 0,260 0,800
Length (m) 0,120 0,110 1,110
Depth (m) 0,610 0,608 1,200
