UNIVERS N Block for 300x500mm vertical terminal blocks UD22A2

local index:
RRR1N5HAGE
Catalog No:
UD22A2
EAN code:
3250616141032
Manufacturer: HAGER
Depth [mm]: 125
Number of rows: 1
Color: White
Price:
133,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

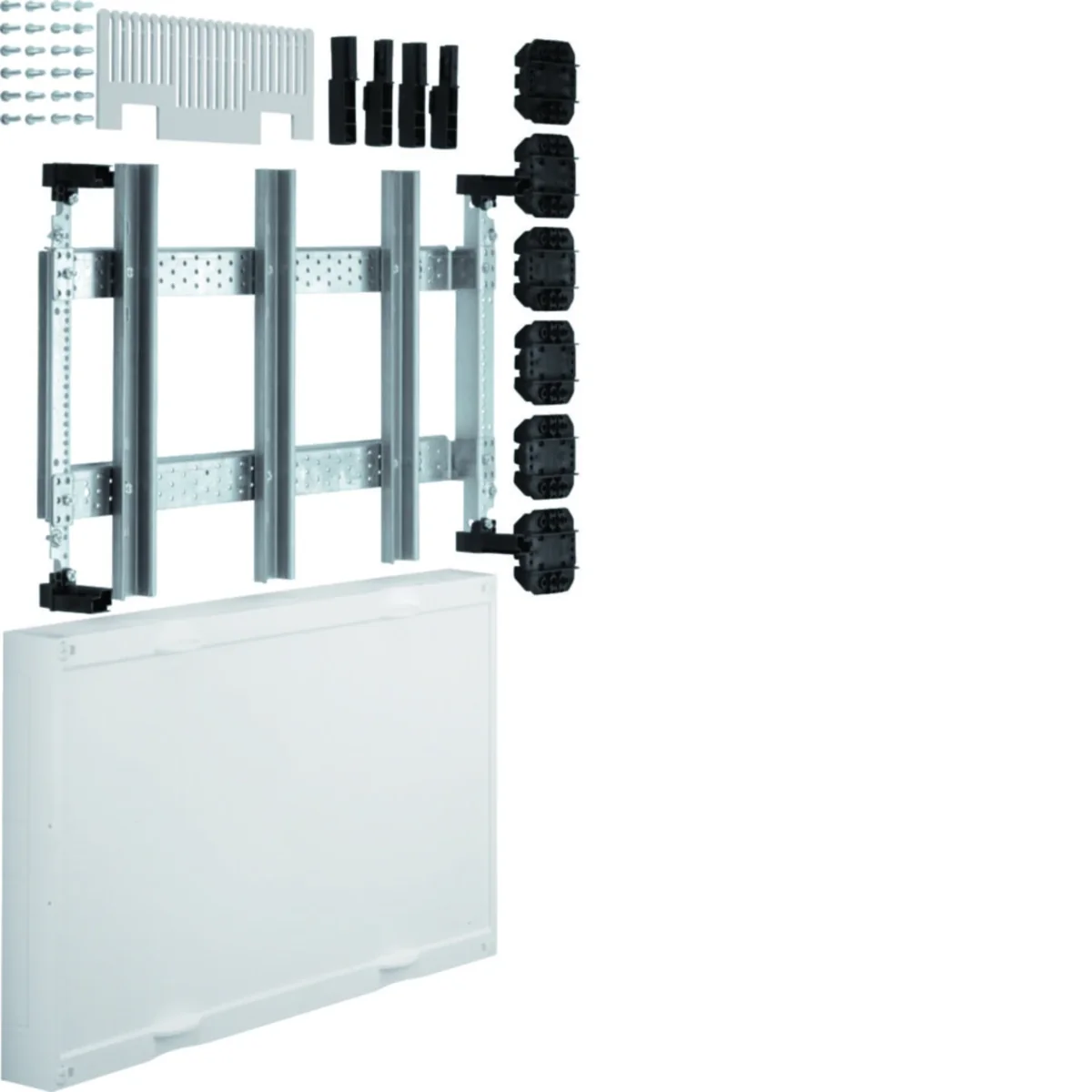

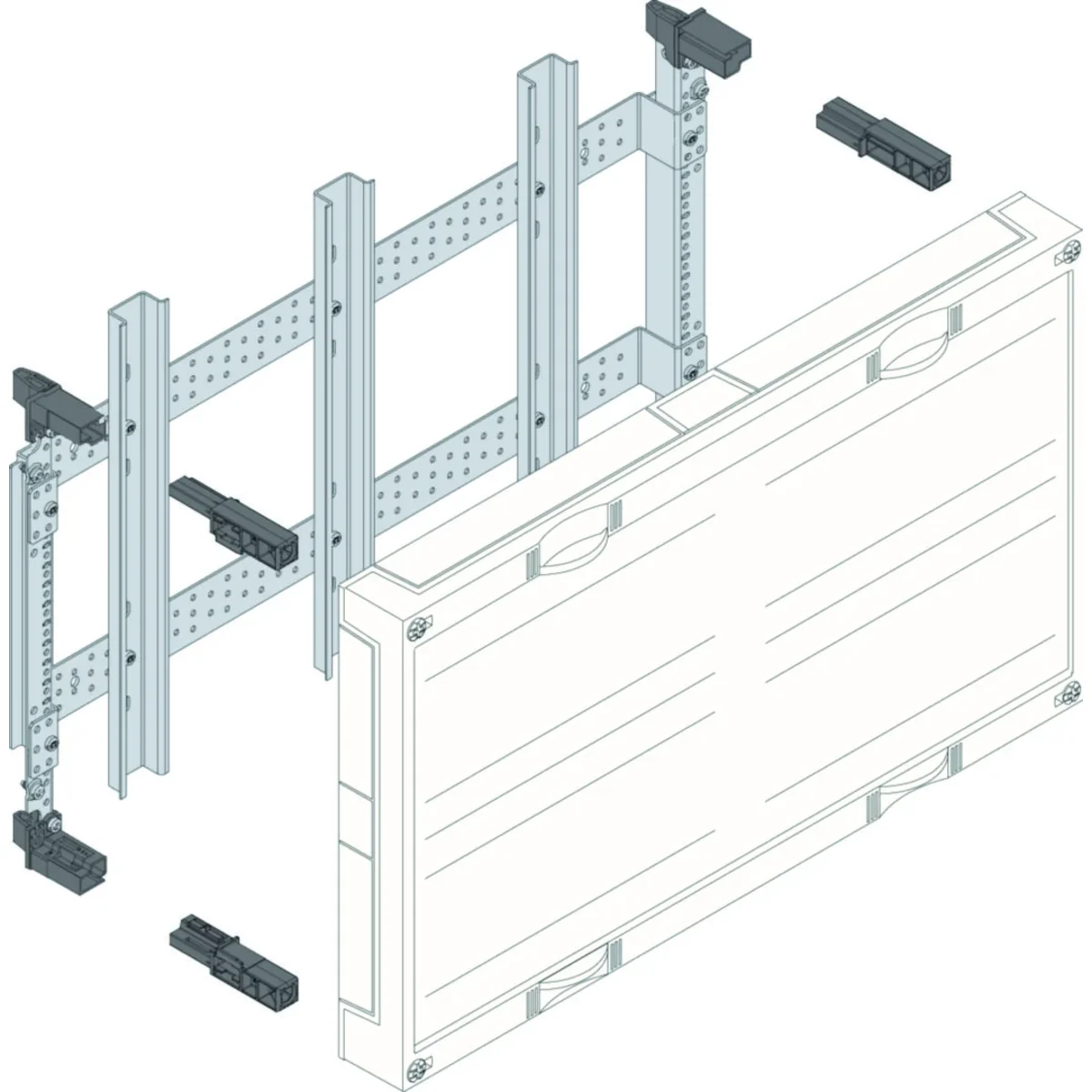

Block with a full cover for serial terminals, TS35 vertical mounting rails, univers N series, i.e. a switchgear building system.

Technical data

  • Depth [mm]
    125
  • Color
    White
  • Family
    UNIVERS N
  • Height [mm]
    300
  • Number of rows for cameras
    2
  • Number of rows
    1
  • Material
    Plastic
  • Width [mm]
    500
  • Number of sections
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Height
    300 mm
  • Depth
    125 mm

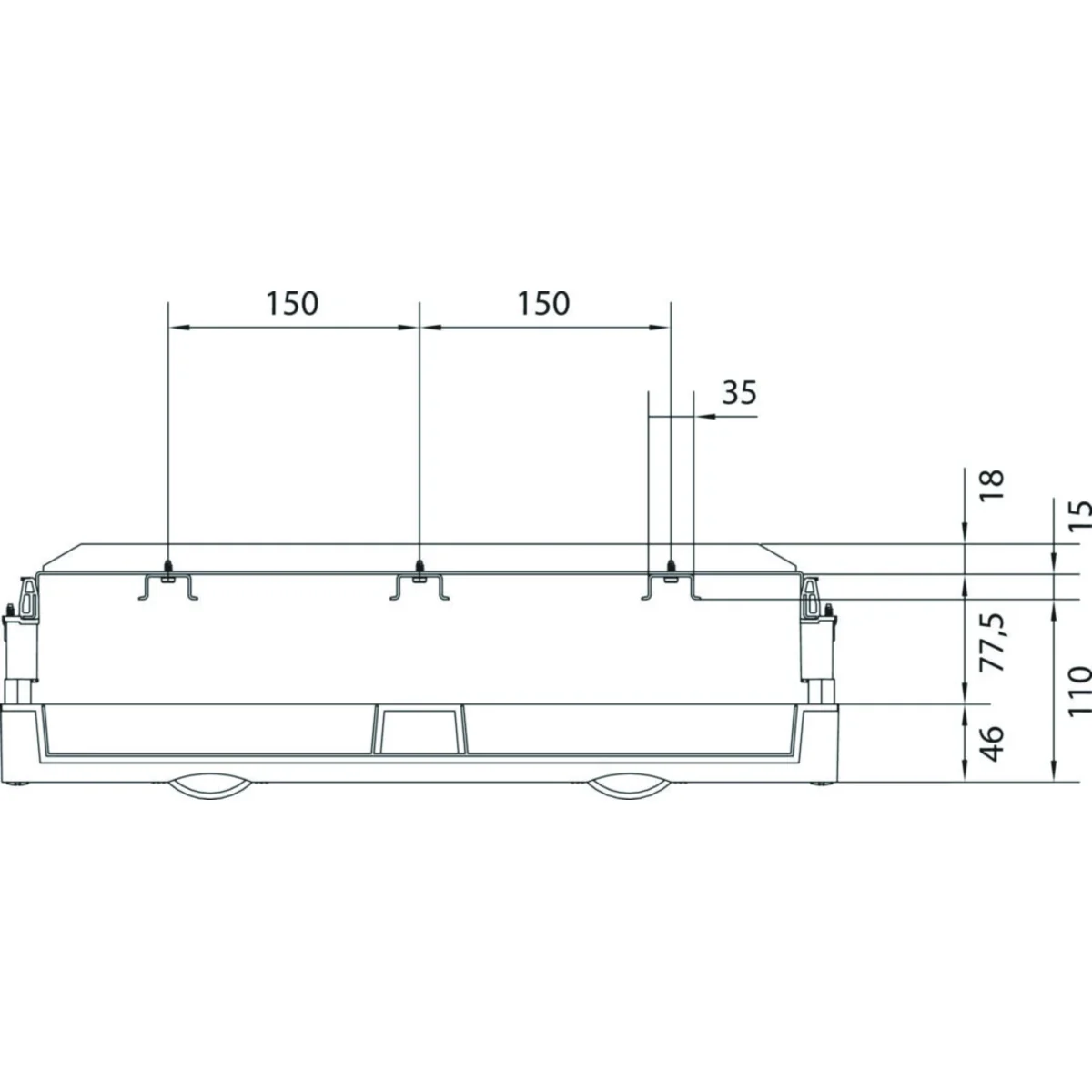

  • Row distance
    150 mm
  • With busbar
    No
  • Width
    500 mm
  • Number of DIN-rails
    3
  • Extension possible
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 2,700 2,800 193,000
Width (m) 0,510 0,510 0,800
Length (m) 0,120 0,120 1,350
Depth (m) 0,310 0,310 1,200
