UNIVERS Left transparent door IP54/II 1900x800mm FZ223SD

local index:
RRR0Y0HAGE
Catalog No:
FZ223SD
EAN code:
3250612795451
Manufacturer: HAGER
Depth [mm]: 20
Thickness [mm]: 1.5
Number of locks: 1
Price:
557,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

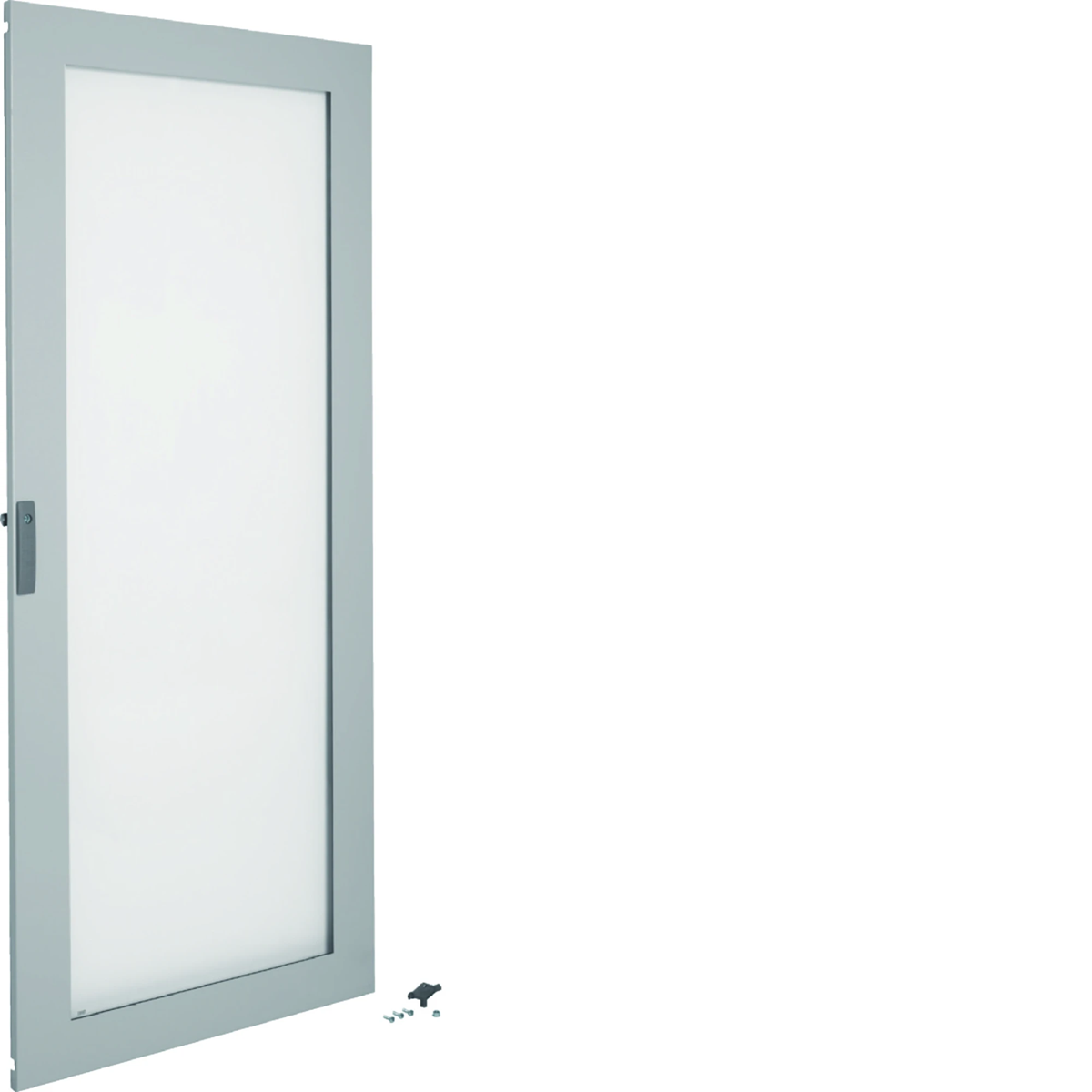

Left transparent doors from the univers series.

Series characteristics:

Wardrobe systems they are characterized by the functionality of the installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    20
  • Number of locks
    1
  • Material
    Miscellaneous materials
  • Family
    UNIVERS
  • Width [mm]
    800
  • Surface finish
    Powder coated
  • Lock type
    Triangular 7mm
  • Thickness [mm]
    1.5
  • Protection class
    II
  • Fixing
    QuickSet
  • Level of security
    IP54
  • Height [mm]
    1900
  • Number of sections
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Stop door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    1900 mm
  • Material
    Other
  • Colour
    Grey
  • Version as glazed door
    Yes
  • Width
    800 mm
  • Depth
    20 mm
  • Surface finishing
    Powder coating
  • Degree of protection (IP)
    IP54

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 19,999 24,500 270,000
Width (m) 0,800 0,820 1,170
Length (m) 1,900 0,030 1,050
Depth (m) 0,035 1,940 1,940
