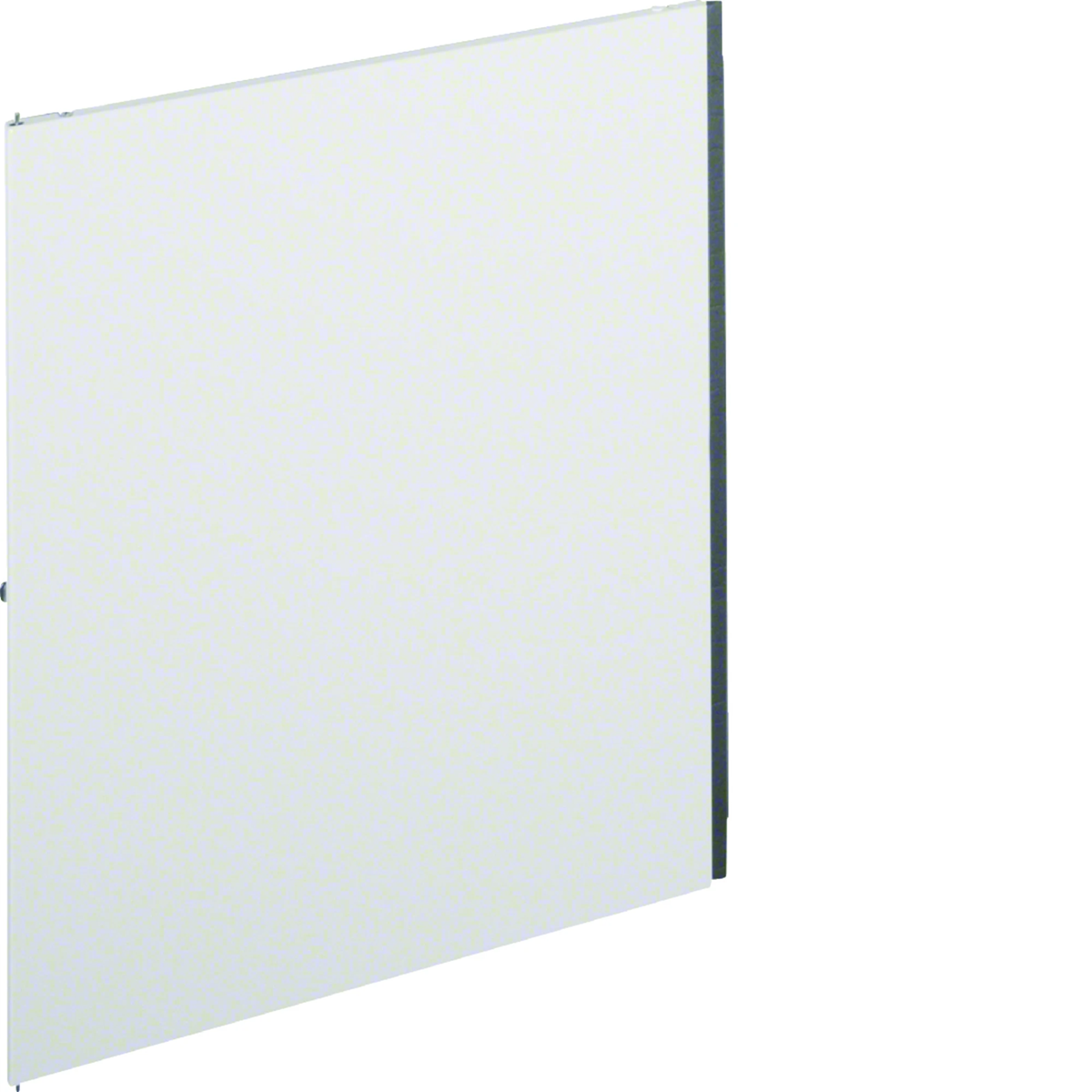

UNIVERS Left door for IP44 enclosure 619x498mm FZ008N

local index:
RRR0N8HAGE
Catalog No:
FZ008N
EAN code:
3250612776566
Manufacturer: HAGER
Depth [mm]: 12
Color: White
Material: Galvanized steel sheet
Price:
132,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Left door for enclosure, series univers.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    12
  • Material
    Galvanized steel sheet
  • Level of security
    IP54

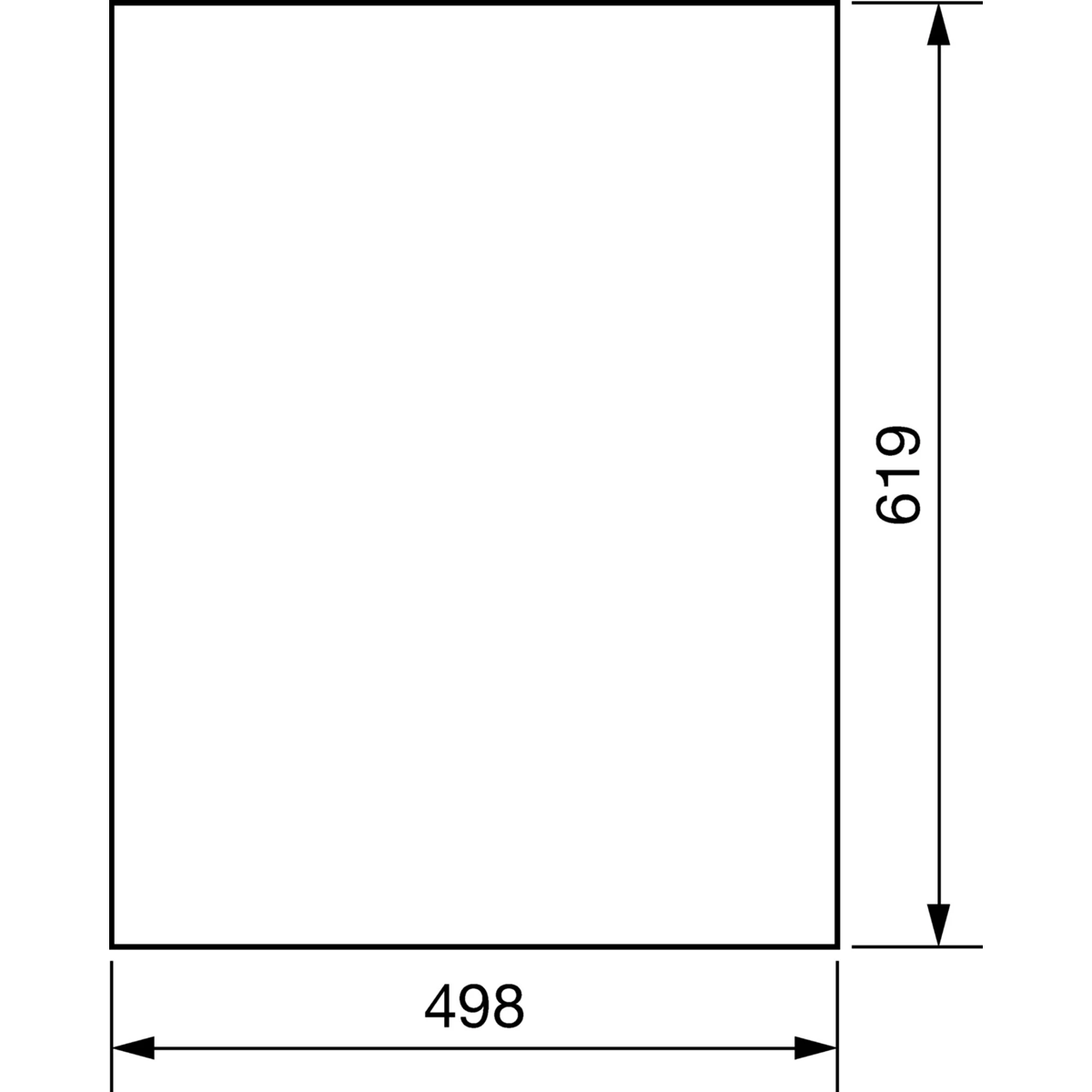

  • Height [mm]
    619
  • Number of sections
    2
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    498
  • Surface finish
    Powder coated
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Partial door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    619 mm
  • Material
    Steel
  • Colour
    White
  • Version as glazed door
    No
  • Width
    498 mm
  • Depth
    12 mm
  • Surface finishing
    Powder coating
  • Degree of protection (IP)
    IP54

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 3,399 3,500 170,000
Width (m) 0,650 0,055 0,800
Length (m) 0,050 0,640 1,400
Depth (m) 1,050 0,550 1,200
