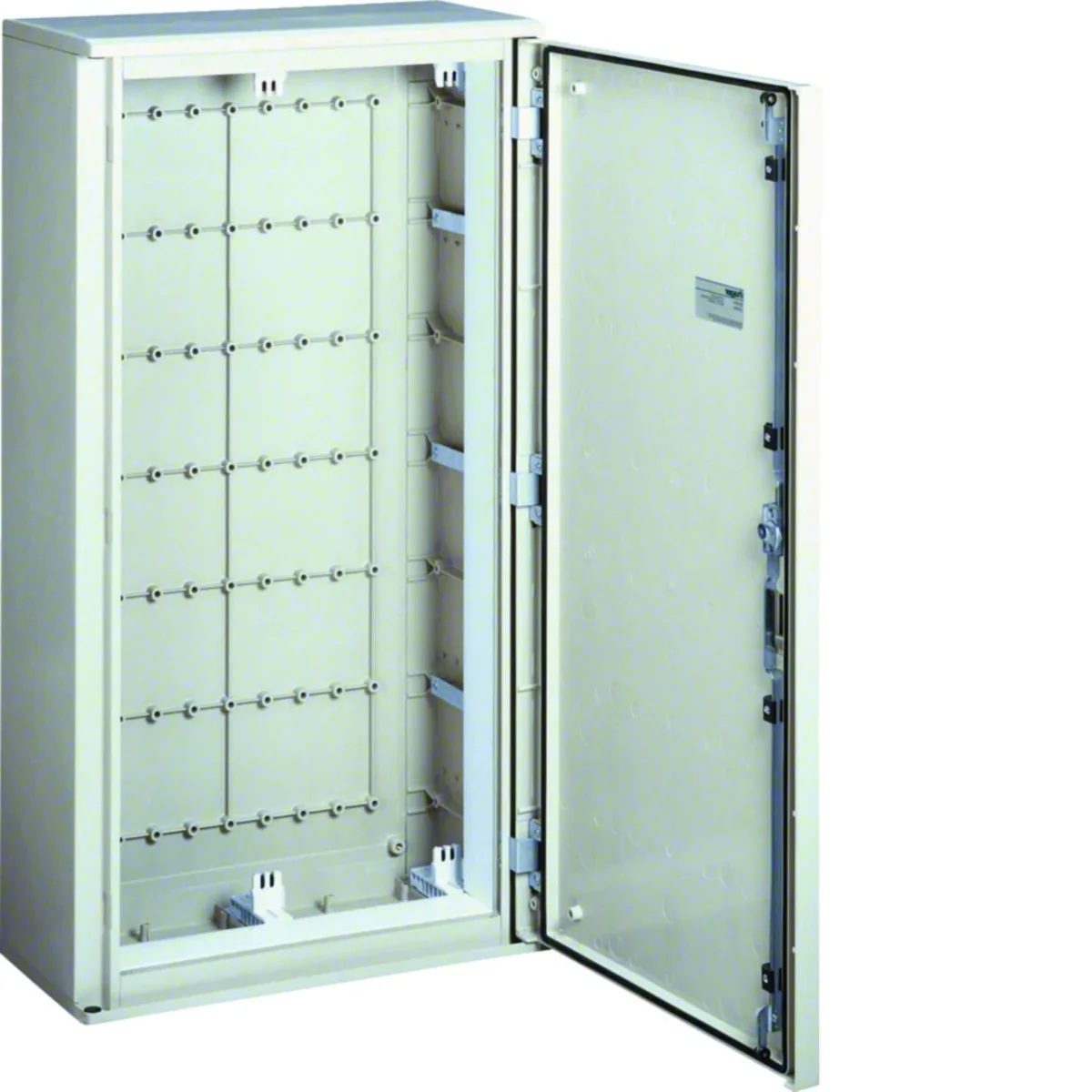

UNIVERS IP65 UV resistant polyester housing 1150x600mm FL72SP

local index:
RIH192HAGE
Catalog No:
FL72SP
EAN code:
3250612550357
Manufacturer: HAGER
Depth [mm]: 300
Thickness [mm]: 2
Number of doors: 1
Price:
1470,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

UV resistant housing from the univers series:

  • made of glass fiber reinforced polyester,
  • type lock: 8mm pin, 3-point.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.

Technical data

  • Depth [mm]
    300
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Polyester
  • Family
    UNIVERS
  • Width [mm]
    600
  • Number of sections
    2
  • Lock type
    8mm 3-point pin
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    Polyester
  • Installation
    Surface-mounted
  • Level of security
    IP65
  • Height [mm]
    1150
  • Number of rows for cameras
    7
  • Exact material
    Glass fiber reinforced polyester

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    400 A
  • Width
    600 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    168
  • Width in number of modular spacings
    24
  • Extension possible
    No
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    Yes
  • Height
    1150 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    7
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    2
  • Surface protection
    Other
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 3 pcs.
Weight (kg) 25,500 28,165 107,495
Width (m) 0,600 0,315 0,800
Length (m) 1,150 1,190 1,360
Depth (m) 0,300 0,610 1,200
