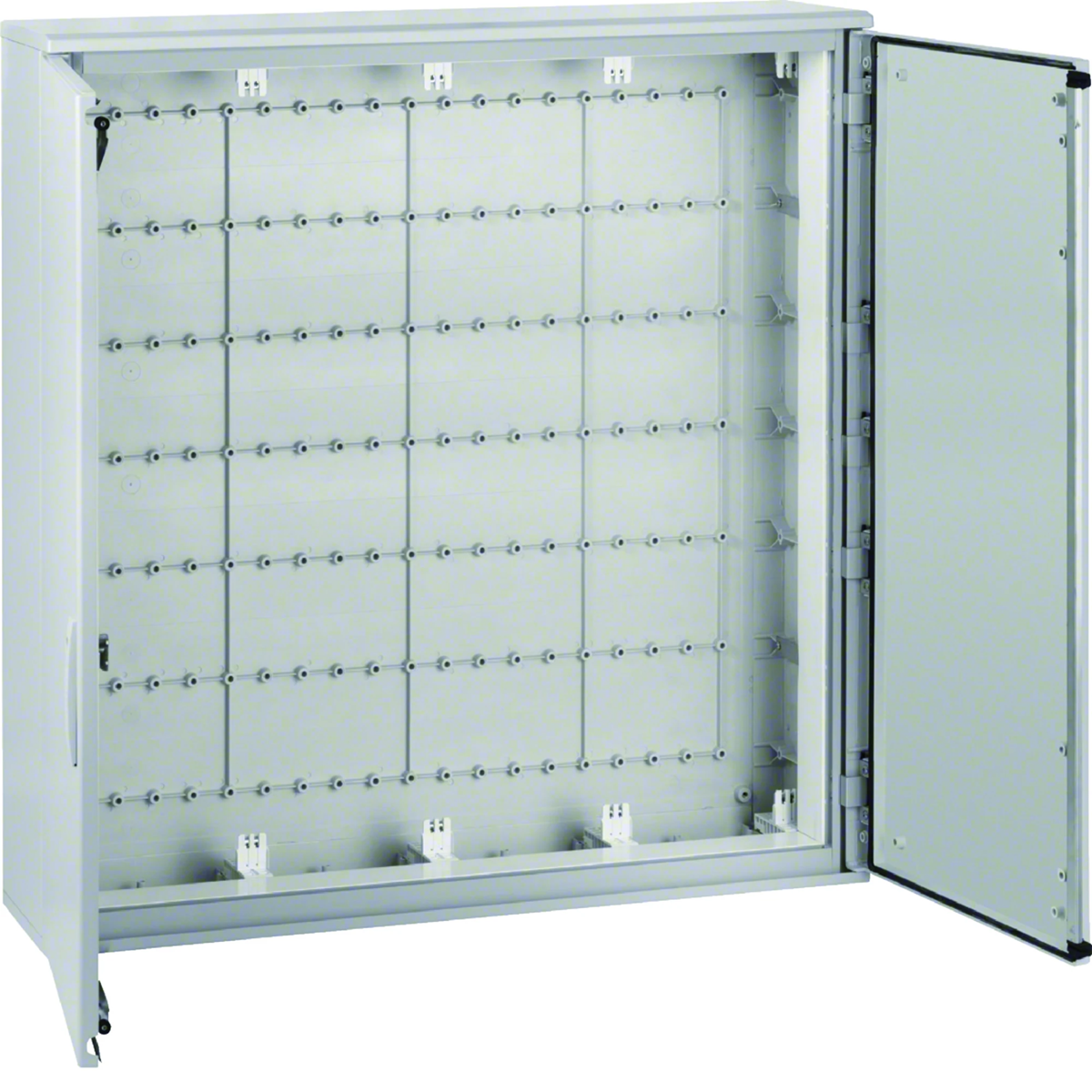

UNIVERS IP65 UV resistant polyester housing 1150x1100mm FL74SP

Name: UNIVERS IP65 UV resistant polyester housing 1150x1100mm
Brand: HAGER
SKU: RIH196HAGE
Price: 1908.58 PLN

Indeks lokalny:

RIH196HAGE

Nr katalogowy:

FL74SP

Kod EAN:

3250616000360

UNIVERS IP65 UV resistant polyester housing 1150x1100mm

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Depth [mm]: 300

Thickness [mm]: 2

Number of doors: 1

Zobacz cały opis

Cena:

1908,58 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

UV resistant housing from the univers series:

made of glass fiber reinforced polyester,
type lock pin: 8mm pin, 3-point.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.

Dane techniczne

Depth [mm]

300
Number of doors

1
Protection class

II
Housing material

Glass fiber reinforced polyester
Family

UNIVERS
Width [mm]

1100
Number of sections

4
Lock type

8mm 3-point pin
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Polyester
Installation

Surface-mounted
Level of security

IP65
Height [mm]

1150
Number of rows for cameras

7
Exact material

Glass fiber reinforced polyester

Pozostałe dane techniczne

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

630 A
Width

1100 mm
Built-in depth

300 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

336
Width in number of modular spacings

48
Extension possible

No
Surface protection

Untreated
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Type of covering

Door
Type of door

Single
With lock

Yes
Height

1150 mm
Depth

300 mm
Inner depth

300 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

7
Number of openings for flange plates

0
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

Yes
Protection class

II
Circuit integrity

None

Dane producenta

Producent

HAGER POLO Sp. z o. o.
Adres

43-100 Tychy Fabryczna 10
NIP

6460015532

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta
Ilość	1 szt.	2 szt.
Waga (kg)	42,705	108,410
Szerokość (m)	0,330	0,800
Długość (m)	1,200	1,360
Głębokość (m)	1,110	1,200
