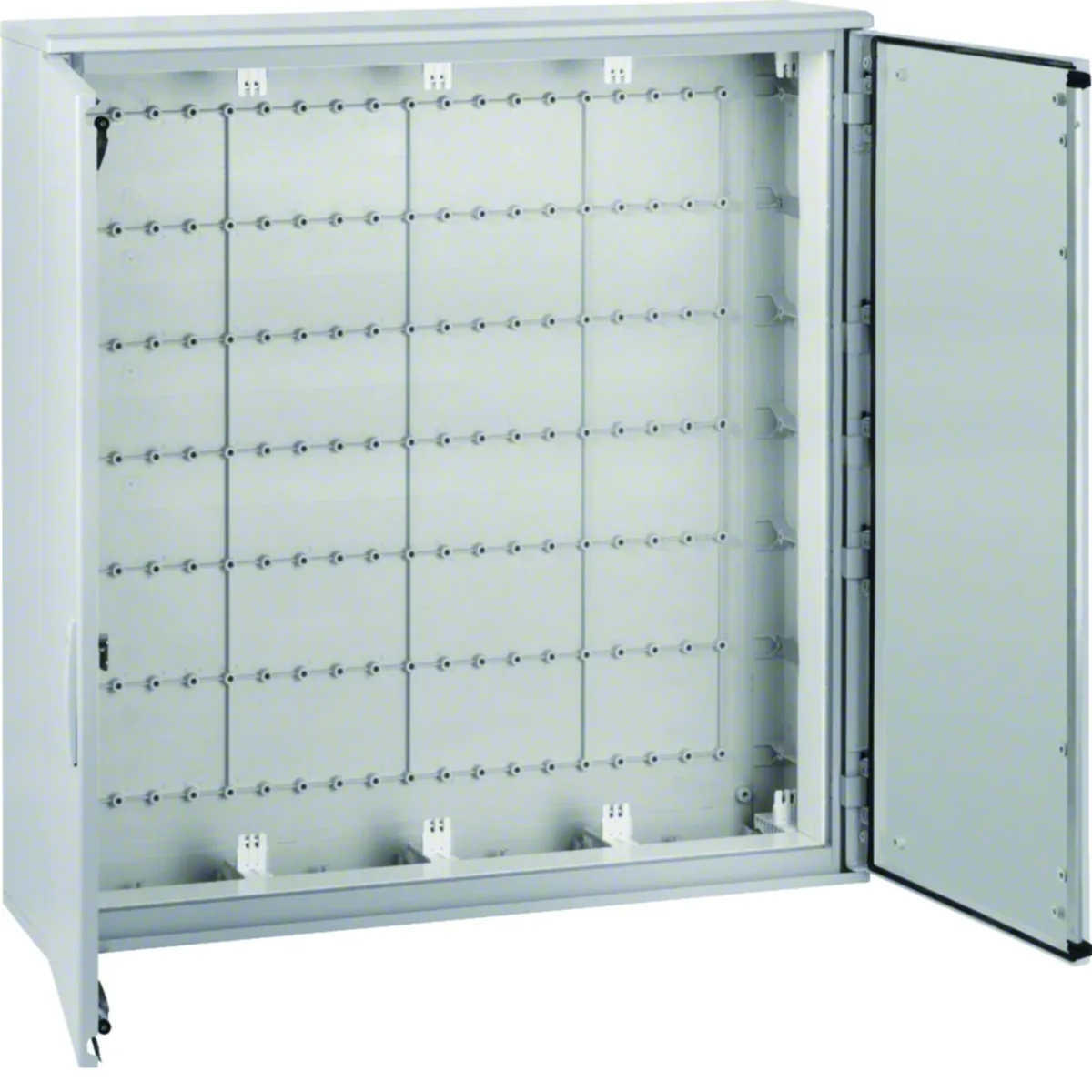

UNIVERS IP65 UV resistant polyester housing 1150x1100mm FL74SP

local index:
RIH196HAGE
Catalog No:
FL74SP
EAN code:
3250616000360
Manufacturer: HAGER
Depth [mm]: 300
Thickness [mm]: 2
Number of doors: 1
Price:
1798,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

UV resistant housing from the univers series:

  • made of glass fiber reinforced polyester,
  • type lock pin: 8mm pin, 3-point.

Series characteristics:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.

Technical data

  • Depth [mm]
    300
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Glass fiber reinforced polyester
  • Family
    UNIVERS
  • Width [mm]
    1100
  • Number of sections
    4
  • Lock type
    8mm 3-point pin
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    Polyester
  • Installation
    Surface-mounted
  • Level of security
    IP65
  • Height [mm]
    1150
  • Number of rows for cameras
    7
  • Exact material
    Glass fiber reinforced polyester

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    630 A
  • Width
    1100 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    336
  • Width in number of modular spacings
    48
  • Extension possible
    No
  • Surface protection
    Untreated
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    1150 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    7
  • Number of openings for flange plates
    0
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Protection class
    II
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 2 pcs.
Weight (kg) 39,000 42,705 108,410
Width (m) 1,150 0,330 0,800
Length (m) 1,100 1,200 1,360
Depth (m) 0,300 1,110 1,200
