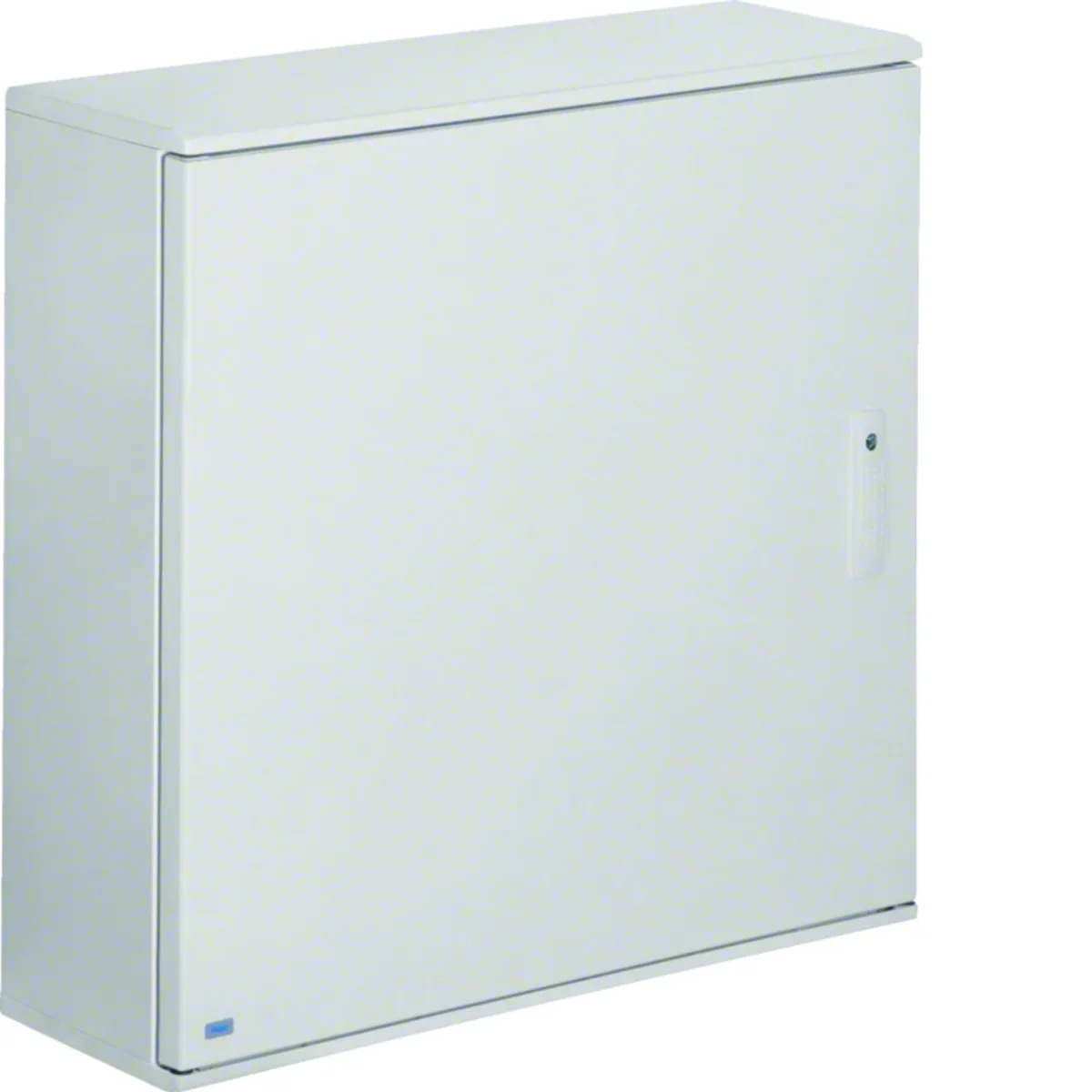

UNIVERS IP65 polyester enclosure 850x850mm FL53S

Indeks lokalny:
RIH187HAGE
Numer katalogowy:
FL53S
Kod EAN:
3250612550241
Producent: HAGER
Depth [mm]: 300
Thickness [mm]: 2
Number of doors: 1
Cena:
5 033,75 zł
gross / szt.
(w tym VAT 23%)
do 4 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Polyester housing conditionally resistant to UV, from the univers series.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dane techniczne

  • Depth [mm]
    300
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Polyester
  • Family
    UNIVERS
  • Width [mm]
    850
  • Number of sections
    3
  • Lock type
    8mm 3-point pin
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    Polyester
  • Installation
    Surface-mounted
  • Level of security
    IP65
  • Height [mm]
    850
  • Number of rows for cameras
    5
  • Exact material
    Glass fiber reinforced polyester

Pozostałe dane techniczne

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    400 A
  • Width
    850 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    180
  • Width in number of modular spacings
    36
  • Extension possible
    No
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    Yes
  • Height
    850 mm
  • Depth
    300 mm
  • Inner depth
    150 mm
  • Material plate thickness door/cover
    20 mm
  • RAL-number
    7035
  • Number of rows
    5
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Other
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
  • Cover with overpressure release
    No

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Karton Paleta
Ilość 1 szt. 3 szt.
Waga (kg) 27,000 106,000
Szerokość (m) 0,860 0,860
Długość (m) 0,890 1,040
Głębokość (m) 0,310 1,200
