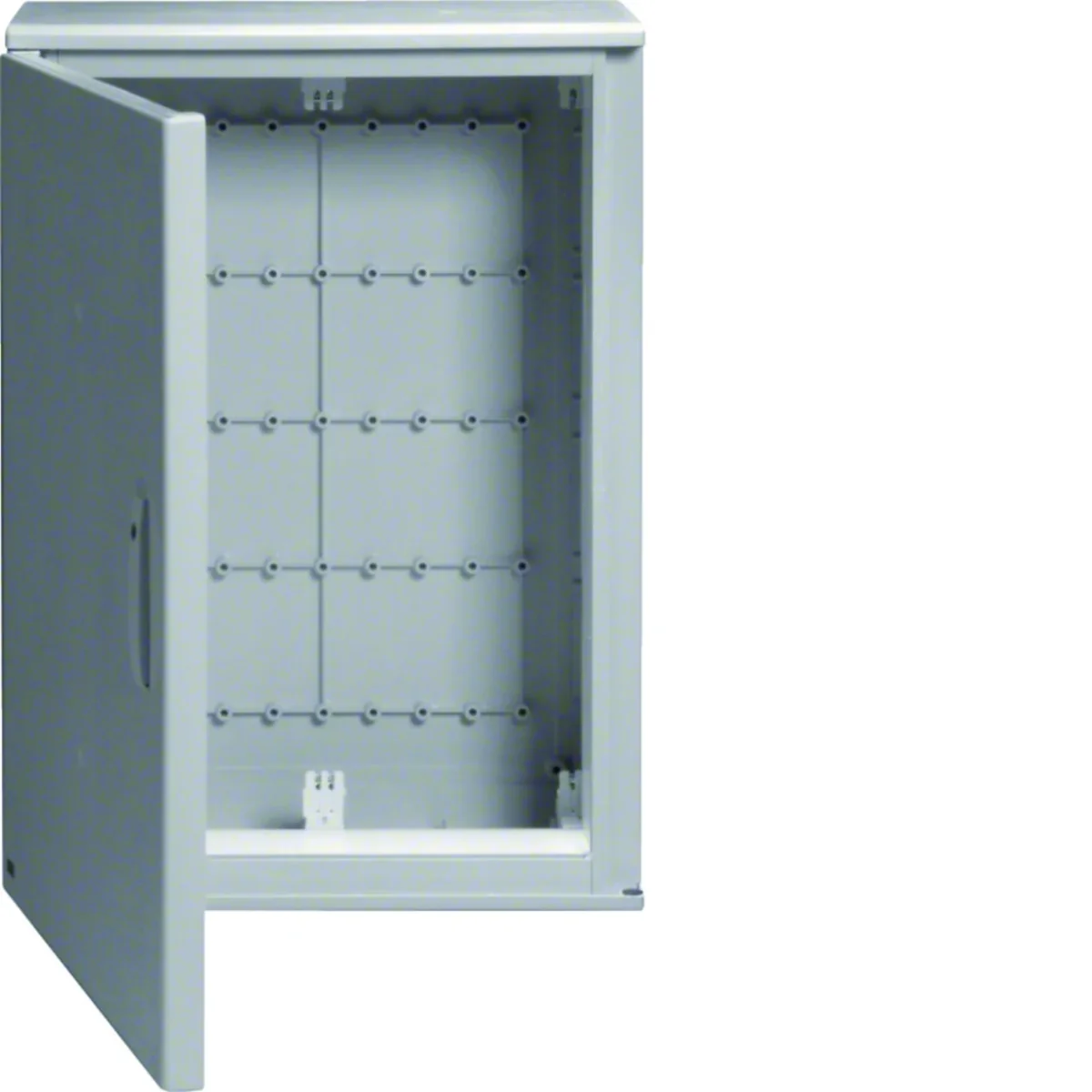

UNIVERS IP65 polyester enclosure 850x600mm FL52S

Index local:
RIH182HAGE
Numéro de catalogue:
FL52S
Code EAN:
3250612550234
Producteur: HAGER
Depth [mm]: 300
Thickness [mm]: 2
Number of doors: 1
Prix:
4 327,52 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Polyester housing conditionally resistant to UV, from the univers series.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Données techniques

  • Depth [mm]
    300
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Polyester
  • Family
    UNIVERS
  • Width [mm]
    600
  • Number of sections
    2
  • Lock type
    8mm 3-point pin
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    Polyester
  • Installation
    Surface-mounted
  • Level of security
    IP65
  • Height [mm]
    850
  • Number of rows for cameras
    5
  • Exact material
    Glass fiber reinforced polyester

Autres données techniques

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    630 A
  • Width
    600 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    120
  • Width in number of modular spacings
    24
  • Extension possible
    No
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    850 mm
  • Depth
    300 mm
  • Inner depth
    235 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    5
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Other
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
  • Cover with overpressure release
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Paleta
Quantité 1 pcs. 3 pcs.
poids (kg) 16,660 74,980
Largeur (m) 0,630 0,800
Longueur (m) 0,900 1,040
Profondeur (m) 0,330 1,200
