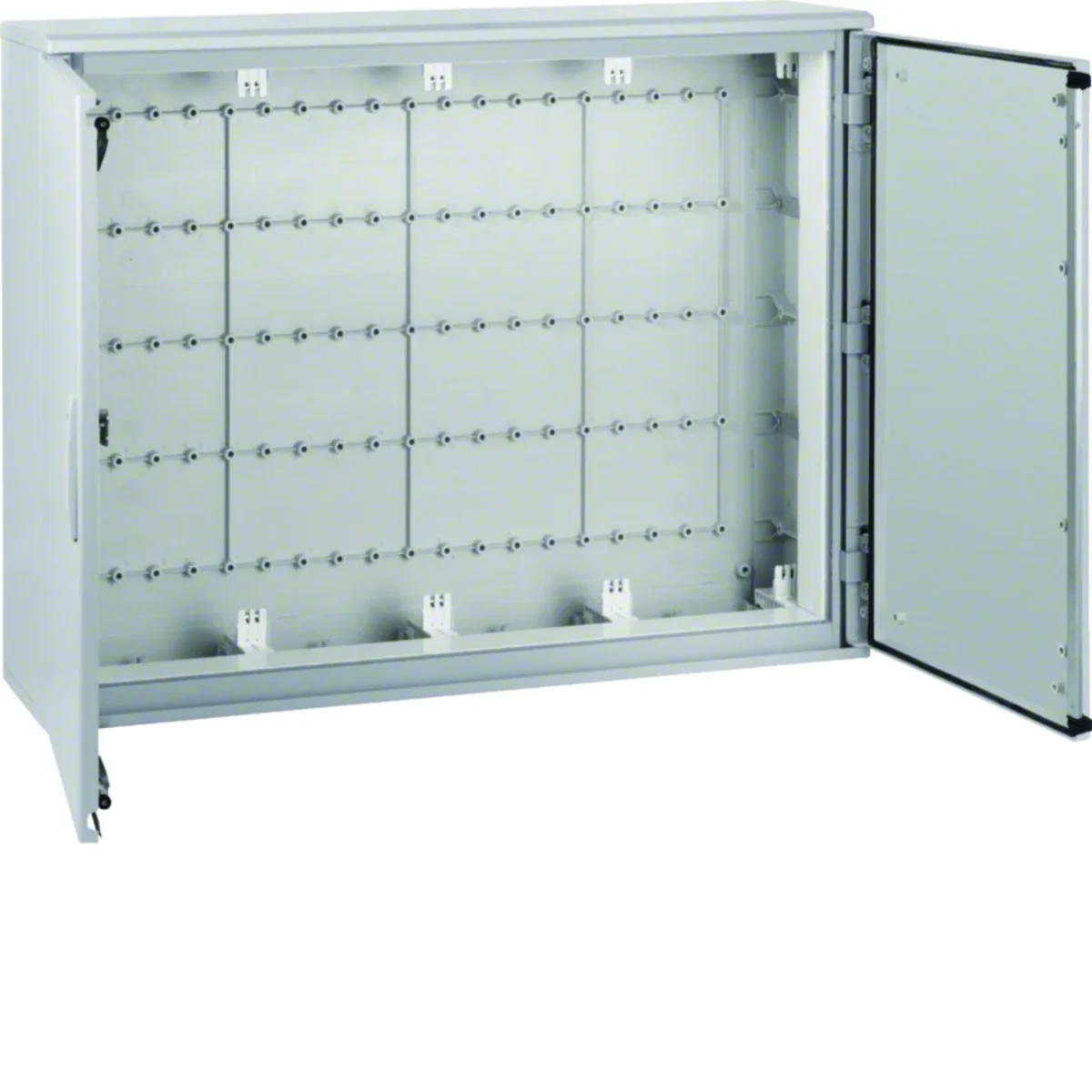

UNIVERS IP65 polyester enclosure 850x1100mm FL54S

Místní index:
RIH189HAGE
Katalogové číslo.:
FL54S
EAN kód:
3250616000339
Výrobce: HAGER
Depth [mm]: 300
Thickness [mm]: 2
Number of doors: 1
Cena:
5 383,66 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Polyester housing conditionally resistant to UV, from the univers series.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technické údaje

  • Depth [mm]
    300
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Glass fiber reinforced polyester
  • Family
    UNIVERS
  • Width [mm]
    1100
  • Number of sections
    4
  • Lock type
    8mm 3-point pin
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Number of locks
    1
  • Material
    Polyester
  • Installation
    Surface-mounted
  • Level of security
    IP65
  • Height [mm]
    850
  • Number of rows for cameras
    5
  • Exact material
    Glass fiber reinforced polyester

Další technické údaje

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    630 A
  • Width
    1100 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    240
  • Width in number of modular spacings
    48
  • Extension possible
    No
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    850 mm
  • Depth
    300 mm
  • Inner depth
    150 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    5
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Untreated
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
  • Cover with overpressure release
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Paleta
Množství 1 kusů. 2 kusů.
Hmotnost (kg) 33,000 88,000
Šířka (m) 0,030 0,800
Délka (m) 1,120 1,050
Hloubka (m) 0,880 1,200
