UNIVERS IP65 polyester enclosure 550x600mm FL32S

Name: UNIVERS IP65 polyester enclosure 550x600mm
Brand: HAGER
SKU: RIH146HAGE
Price: 3175.98 PLN

local index:

RIH146HAGE

Catalog No:

FL32S

EAN code:

3250612550227

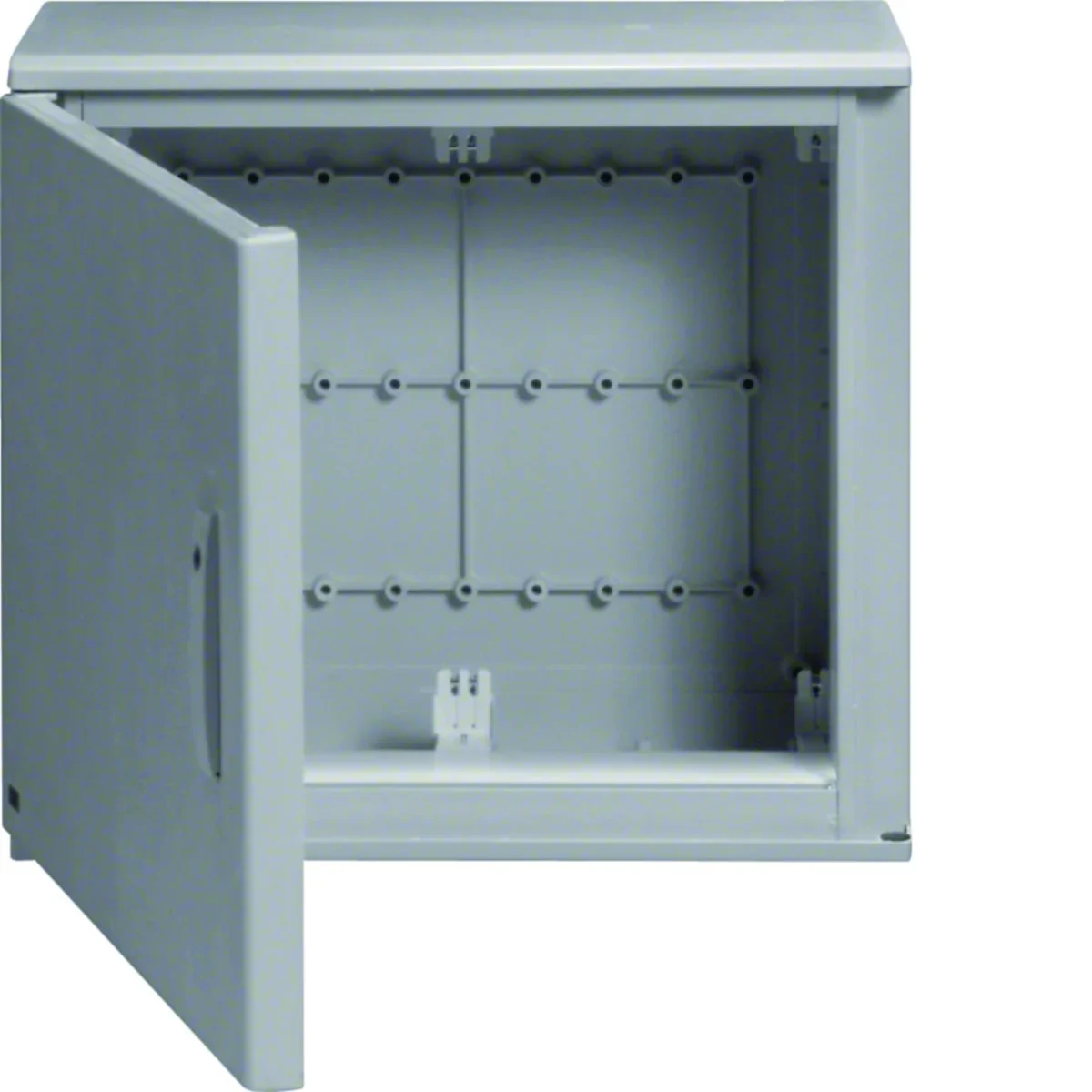

UNIVERS IP65 polyester enclosure 550x600mm

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 300

Thickness [mm]: 2

Number of doors: 1

See full description

Price:

3175,98 zł

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Polyester housing conditionally resistant to UV, from the univers series.

Series characteristics:

Cabinet systems are functional, not only as distribution switchgears (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Depth [mm]

300
Number of doors

1
Protection class

II
Housing material

Polyester
Family

UNIVERS
Width [mm]

600
Number of sections

2
Lock type

8mm 3-point pin
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Polyester
Installation

Surface-mounted
Level of security

IP65
Height [mm]

550
Number of rows for cameras

3
Exact material

Glass fiber reinforced polyester

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

400 A
Width

600 mm
Built-in depth

300 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

72
Width in number of modular spacings

24
Extension possible

No
Surface protection

Other
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Type of covering

Door
Type of door

Single
With lock

Yes
Height

550 mm
Depth

300 mm
Inner depth

150 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

3
Number of openings for flange plates

0
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

Yes
Protection class

II
Circuit integrity

None

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Paleta
Quantity	1 pcs.	4 pcs.
Weight (kg)	16,450	65,800
Width (m)	0,610	0,800
Length (m)	0,590	0,740
Depth (m)	0,320	1,240
