330021
0

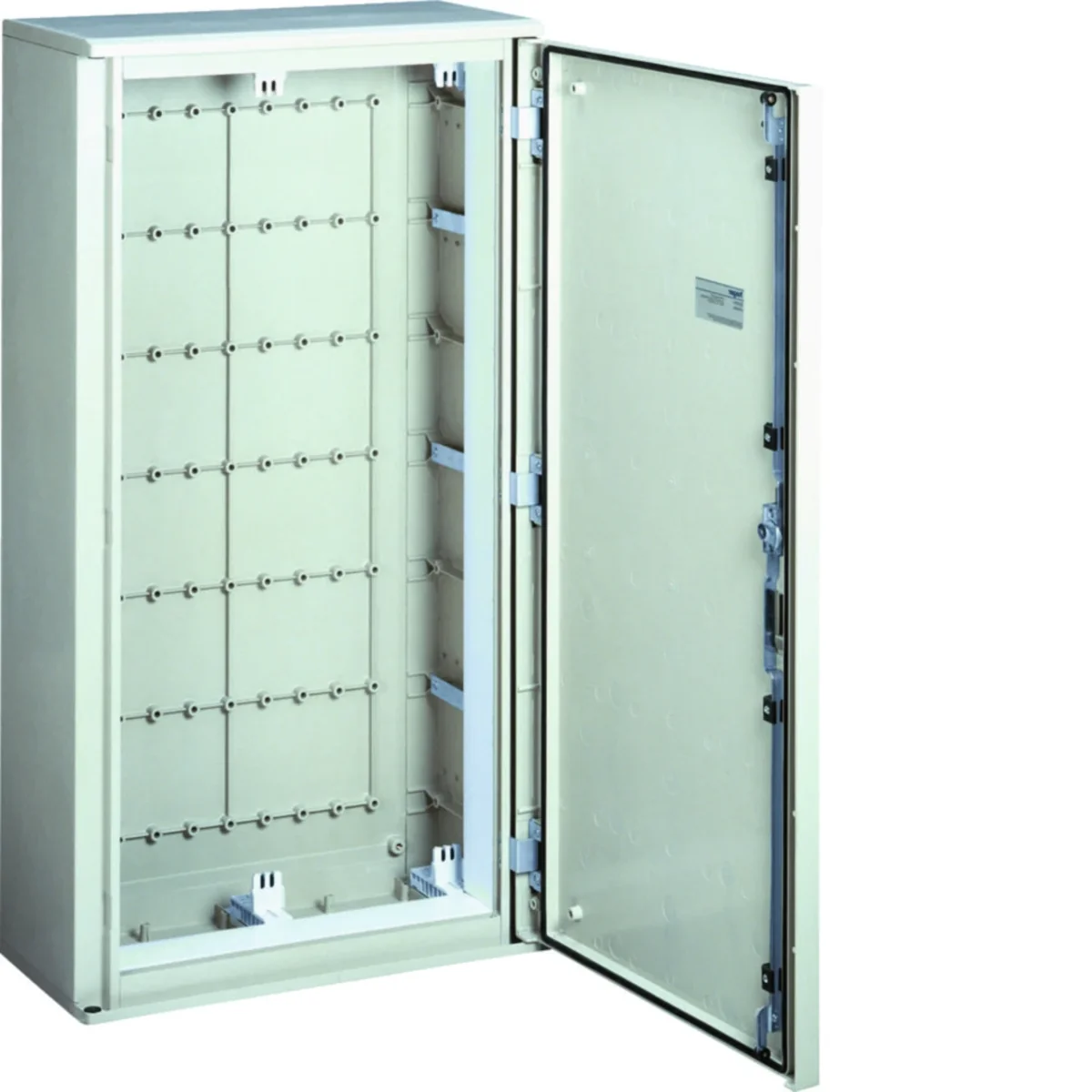

UNIVERS IP65 polyester enclosure 1150x850mm FL73S
local index:
RIH193HAGE
Catalog No:
FL73S
EAN code:
3250612550265
Price:
1588,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Housing from the univers series:
- made of glass fiber reinforced polyester,
- type of lock: pin 8mm 3-point.
Characteristics of the series:
Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.
Technical data
-
Depth [mm]300
-
Number of doors1
-
Protection classII
-
Housing materialPolyester
-
FamilyUNIVERS
-
Width [mm]850
-
Number of sections3
-
Lock type8mm 3-point pin
-
PKWIU27.12.40.0
-
Thickness [mm]2
-
Number of locks1
-
MaterialPolyester
-
InstallationSurface-mounted
-
Level of securityIP65
-
Height [mm]1150
-
Number of rows for cameras7
-
Exact materialGlass fiber reinforced polyester
Other technical data
-
Mounting methodSurface mounted
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)400 A
-
Width850 mm
-
Built-in depth300 mm
-
Material plate thickness cabinet2 mm
-
ColourGrey
-
Number of modules252
-
Width in number of modular spacings36
-
Extension possibleNo
-
Housing materialPlastic
-
With mounting plateNo
-
Suitable for lightning protectionYes
-
Protection classII
-
Circuit integrityNone
-
Type of coveringCover
-
Type of doorSingle
-
With lockYes
-
Height1150 mm
-
Depth300 mm
-
Inner depth300 mm
-
Material plate thickness door/cover2 mm
-
RAL-number7035
-
Number of rows7
-
Number of openings for flange plates0
-
Number of conduit inlets3
-
Surface protectionOther
-
Suitable for outdoor useYes
-
Degree of protection (IP)IP65
-
Impact strengthIK10
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 3 pcs. |
| Weight (kg) | 32,990 | 33,000 | 124,000 |
| Width (m) | 0,850 | 0,850 | 0,860 |
| Length (m) | 1,150 | 1,150 | 1,340 |
| Depth (m) | 0,300 | 0,300 | 1,200 |
