UNIVERS IP65 polyester enclosure 1150x600mm FL72S

Name: UNIVERS IP65 polyester enclosure 1150x600mm
Brand: HAGER
SKU: RIH191HAGE
Price: 1150.81 PLN

Indeks lokalny:

RIH191HAGE

Nr katalogowy:

FL72S

Kod EAN:

3250612550258

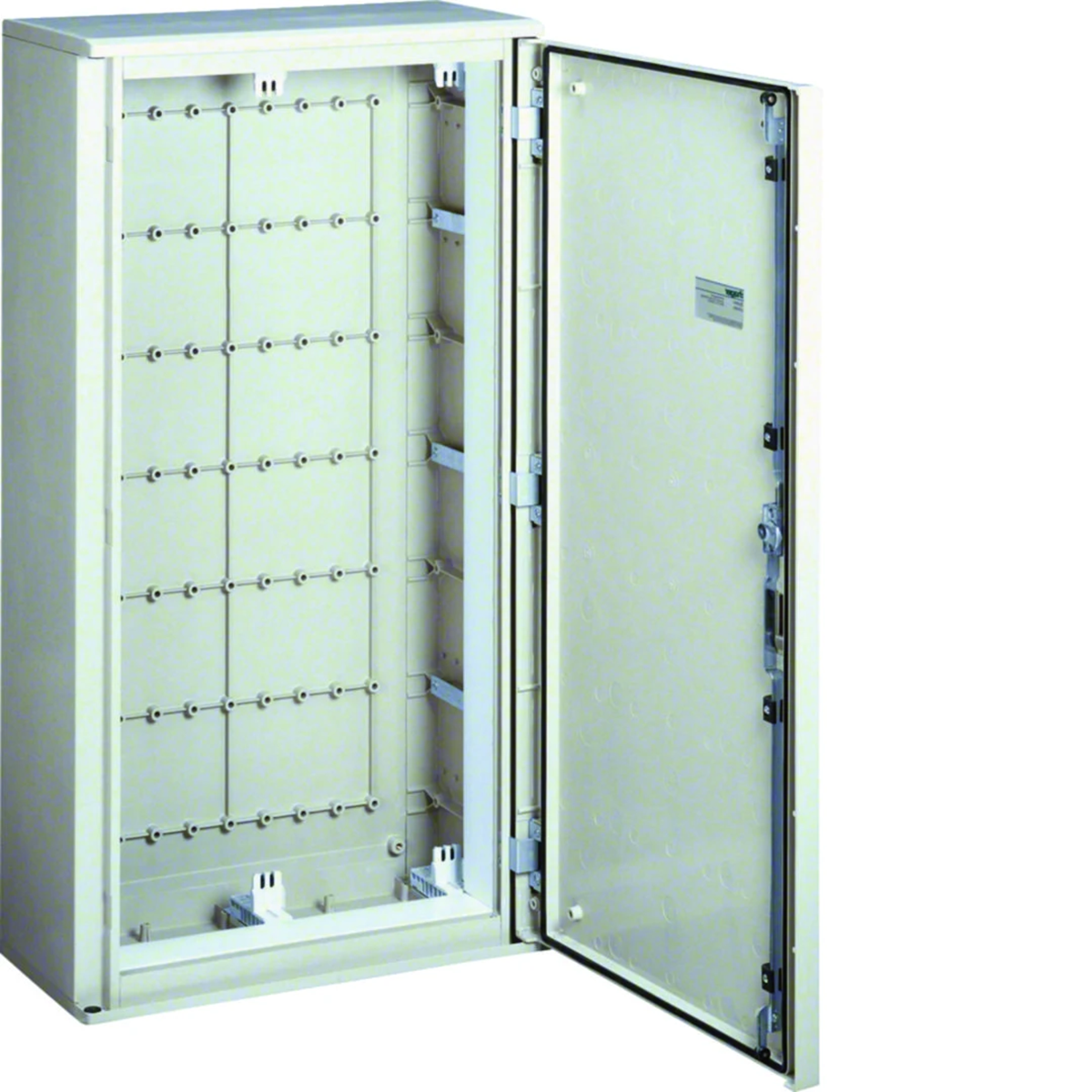

UNIVERS IP65 polyester enclosure 1150x600mm

Kliknij zdjęcie, aby powiększyć

Producent: HAGER

Depth [mm]: 300

Thickness [mm]: 2

Number of doors: 1

Zobacz cały opis

Cena:

1150,81 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 10 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Housing from the univers series:

made of glass fiber reinforced polyester,
type of lock: pin 8mm 3-point.

Characteristics of the series:

Cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.

Dane techniczne

Depth [mm]

300
Number of doors

1
Protection class

II
Housing material

Polyester
Family

UNIVERS
Width [mm]

600
Number of sections

2
Lock type

8mm 3-point pin
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Polyester
Installation

Surface-mounted
Level of security

IP65
Height [mm]

1150
Number of rows for cameras

7
Exact material

Glass fiber reinforced polyester

Pozostałe dane techniczne

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

400 A
Width

600 mm
Built-in depth

300 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

168
Width in number of modular spacings

24
Extension possible

No
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

Yes
Protection class

II
Circuit integrity

None

Type of covering

Cover
Type of door

Single
With lock

Yes
Height

1150 mm
Depth

300 mm
Inner depth

300 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

7
Number of openings for flange plates

0
Number of conduit inlets

2
Surface protection

Other
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Dane producenta

Producent

Hager Electro GmbH & Co KG
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Paleta
Ilość	1 szt.	3 szt.
Waga (kg)	24,900	74,700
Szerokość (m)	0,620	0,800
Długość (m)	1,180	1,330
Głębokość (m)	0,320	1,200
