UNIVERS IP65 850x600mm polyester housing, UV resistant FL52SP

Name: UNIVERS IP65 850x600mm polyester housing, UV resistant
Brand: HAGER
SKU: RIH183HAGE
Price: 5490.42 PLN
Availability: BackOrder

Index local:

RIH183HAGE

Numéro de catalogue:

FL52SP

Code EAN:

3250612550333

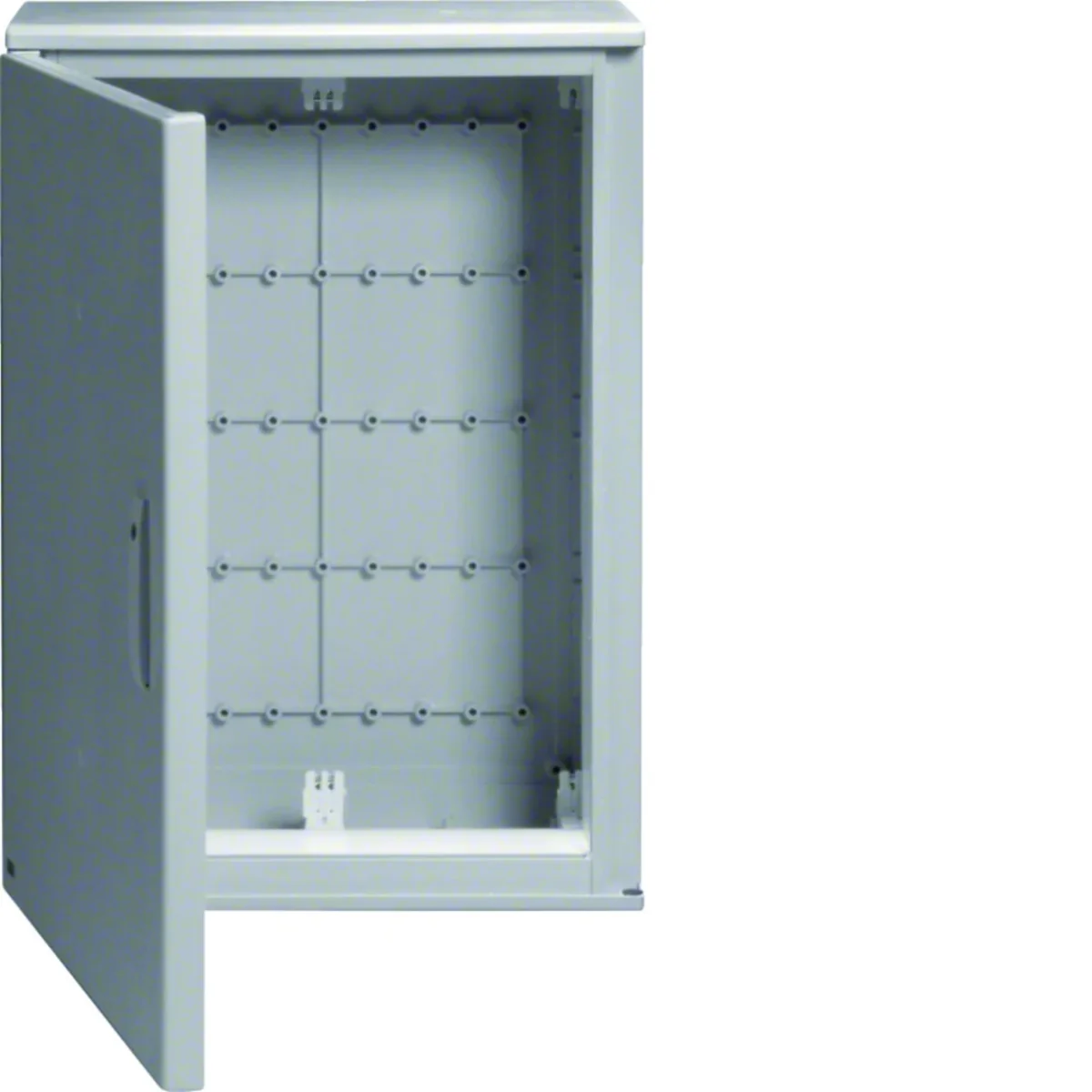

UNIVERS IP65 850x600mm polyester housing, UV resistant

Cliquer sur la photo pour l'agrandir

Producteur: HAGER

Depth [mm]: 300

Thickness [mm]: 2

Number of doors: 1

Voir la description complète

Prix:

5 490,42 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

UV-resistant polyester housing from the univers series.

Series characteristics:

Systems cabinets are functional, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Données techniques

Depth [mm]

300
Number of doors

1
Protection class

II
Housing material

Polyester
Family

UNIVERS
Width [mm]

600
Number of sections

2
Lock type

8mm 3-point pin
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Polyester
Installation

Surface-mounted
Level of security

IP65
Height [mm]

850
Number of rows for cameras

5
Exact material

Glass fiber reinforced polyester

Autres données techniques

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

400 A
Width

600 mm
Built-in depth

300 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

120
Width in number of modular spacings

24
Extension possible

No
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

Yes
Protection class

II
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

850 mm
Depth

300 mm
Inner depth

235 mm
Material plate thickness door/cover

20 mm
RAL-number

7035
Number of rows

5
Number of openings for flange plates

0
Number of conduit inlets

0
Surface protection

Other
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10
Cover with overpressure release

No

Détails du fabricant

Producteur

Hager Electro GmbH & Co KG
Adresse

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Emballage en vrac

Une sorte de paquet	Karton	Paleta	Karton	Paleta
Quantité	1 pcs.	3 pcs.	1 pcs.	3 pcs.
poids (kg)	21,210	88,630	21,210	88,630
Largeur (m)	0,600	0,800	0,600	0,800
Longueur (m)	0,310	1,040	0,310	1,040
Profondeur (m)	0,880	1,200	0,880	1,200
