UNIVERS IP65 550x600mm polyester housing, UV resistant FL32SP

Name: UNIVERS IP65 550x600mm polyester housing, UV resistant
Brand: HAGER
SKU: RIH147HAGE
Price: 4285.02 PLN
Availability: BackOrder

Indice locale:

RIH147HAGE

Numero di catalogo:

FL32SP

Codice EAN:

3250612550326

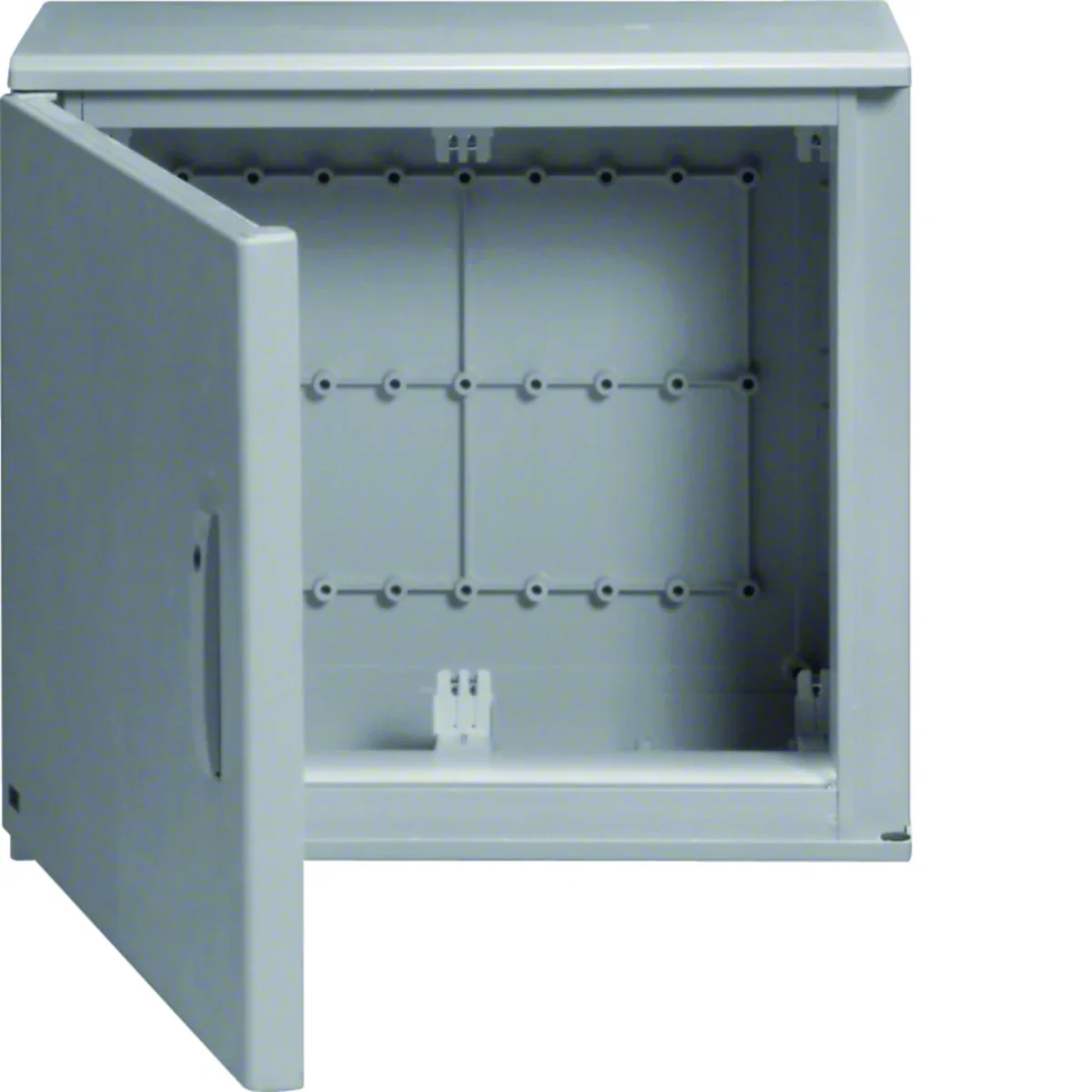

UNIVERS IP65 550x600mm polyester housing, UV resistant

Clicca sulla foto per ingrandire

Produttore: HAGER

Depth [mm]: 300

Thickness [mm]: 2

Number of doors: 1

Vedi la descrizione completa

Prezzo:

4 285,02 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

UV-resistant polyester housing from the univers series.

Series characteristics:

Systems cabinets are functional, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Dati tecnici

Depth [mm]

300
Number of doors

1
Protection class

II
Housing material

Polyester
Family

UNIVERS
Width [mm]

600
Number of sections

2
Lock type

8mm 3-point pin
PKWIU

27.12.40.0

Thickness [mm]

2
Number of locks

1
Material

Polyester
Installation

Surface-mounted
Level of security

IP65
Height [mm]

550
Number of rows for cameras

3
Exact material

Glass fiber reinforced polyester

Altri dati tecnici

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

400 A
Width

600 mm
Built-in depth

300 mm
Material plate thickness cabinet

2 mm
Colour

Grey
Number of modules

72
Width in number of modular spacings

24
Extension possible

No
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

Yes
Protection class

II
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

550 mm
Depth

300 mm
Inner depth

150 mm
Material plate thickness door/cover

2 mm
RAL-number

7035
Number of rows

3
Number of openings for flange plates

0
Number of conduit inlets

0
Surface protection

Other
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10
Cover with overpressure release

No

Dettagli del produttore

Produttore

Hager Electro GmbH & Co KG
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Paleta	Karton	Paleta
Quantità	1 pezzi	6 pezzi	1 pezzi	6 pezzi
Peso (kg)	18,056	131,333	18,056	131,333
Larghezza (m)	0,570	0,800	0,570	0,800
Lunghezza (m)	0,320	1,350	0,320	1,350
Profondità (m)	0,600	1,200	0,600	1,200
