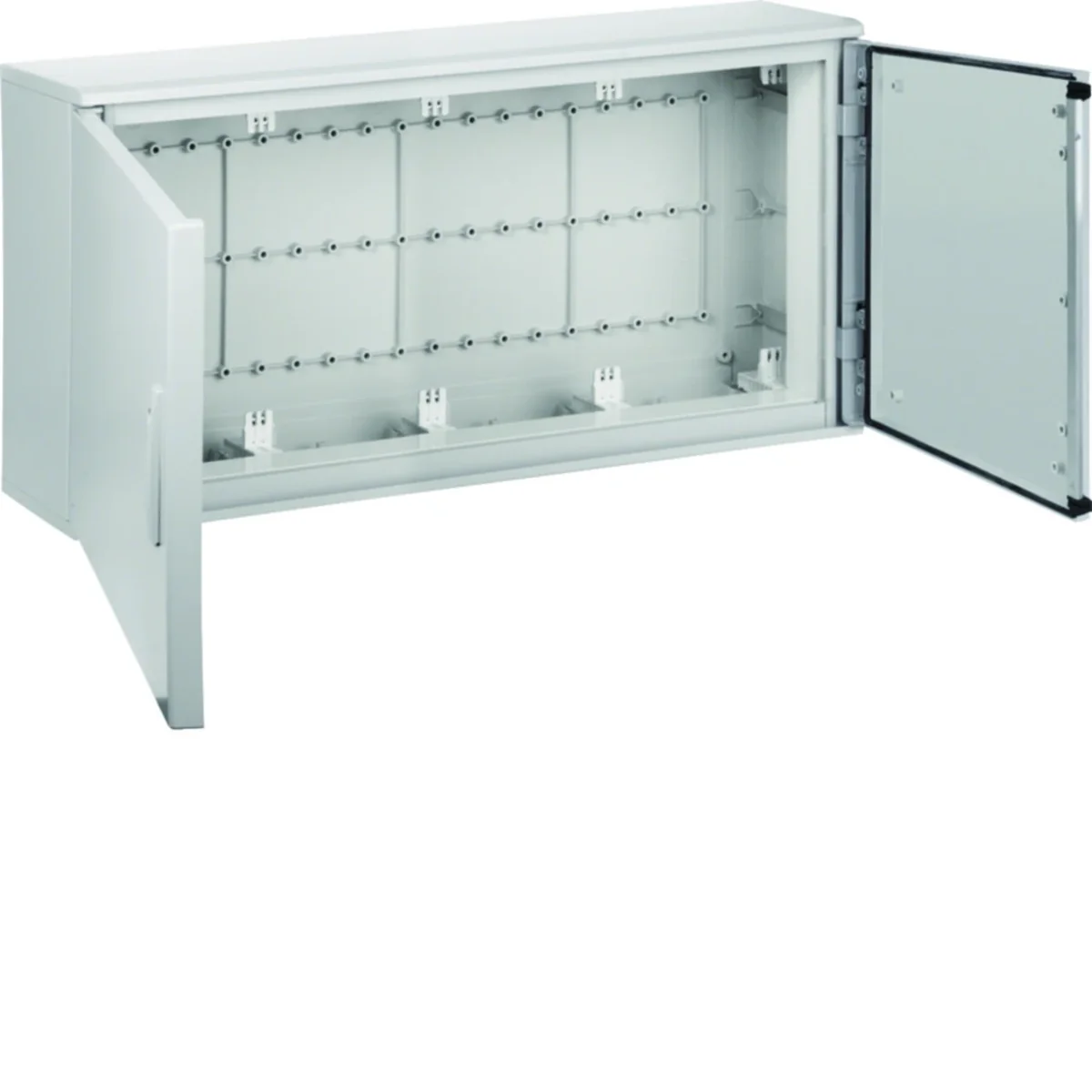

UNIVERS IP65 550x1100mm polyester housing, UV resistant FL34SP
local index:
RIH157HAGE
Catalog No:
FL34SP
EAN code:
3250616000322
Price:
1086,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
UV-resistant polyester housing from the univers series.
Series characteristics:
Systems cabinets are functional, not only as distribution switchboards (main power supply), but also as metering cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]300
-
Number of doors1
-
Protection classII
-
Housing materialGlass fiber reinforced polyester
-
FamilyUNIVERS
-
Width [mm]1100
-
Number of sections4
-
Lock type8mm 3-point pin
-
PKWIU27.12.40.0
-
Thickness [mm]2
-
Number of locks1
-
MaterialPolyester
-
InstallationSurface-mounted
-
Level of securityIP65
-
Height [mm]550
-
Number of rows for cameras3
-
Exact materialGlass fiber reinforced polyester
Other technical data
-
Mounting methodSurface mounted
-
Cover modelClosed
-
Transparent cover/doorNo
-
Nominal current (In)630 A
-
Width1100 mm
-
Built-in depth300 mm
-
Material plate thickness cabinet2 mm
-
ColourGrey
-
Number of modules144
-
Width in number of modular spacings48
-
Extension possibleNo
-
Surface protectionUntreated
-
Suitable for outdoor useYes
-
Degree of protection (IP)IP65
-
Impact strengthIK10
-
Type of coveringCover
-
Type of doorSingle
-
With lockYes
-
Height550 mm
-
Depth300 mm
-
Inner depth150 mm
-
Material plate thickness door/cover2 mm
-
RAL-number7035
-
Number of rows3
-
Number of openings for flange plates0
-
Housing materialPlastic
-
With mounting plateNo
-
Suitable for lightning protectionYes
-
Protection classII
-
Circuit integrityNone
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 4 pcs. |
| Weight (kg) | 23,300 | 23,400 | 118,600 |
| Width (m) | 0,305 | 0,305 | 0,800 |
| Length (m) | 0,580 | 0,580 | 1,260 |
| Depth (m) | 1,110 | 1,110 | 1,200 |
