UNIVERS IP41 upper enclosure closing cover with 2 holes for 600x400 field FZ882WF

Name: UNIVERS IP41 upper enclosure closing cover with 2 holes for 600x400 field
Brand: HAGER
SKU: RRR3M9HAGE
Price: 99.19 PLN

local index:

RRR3M9HAGE

Catalog No:

FZ882WF

EAN code:

7611919290739

UNIVERS IP41 upper enclosure closing cover with 2 holes for 600x400 field

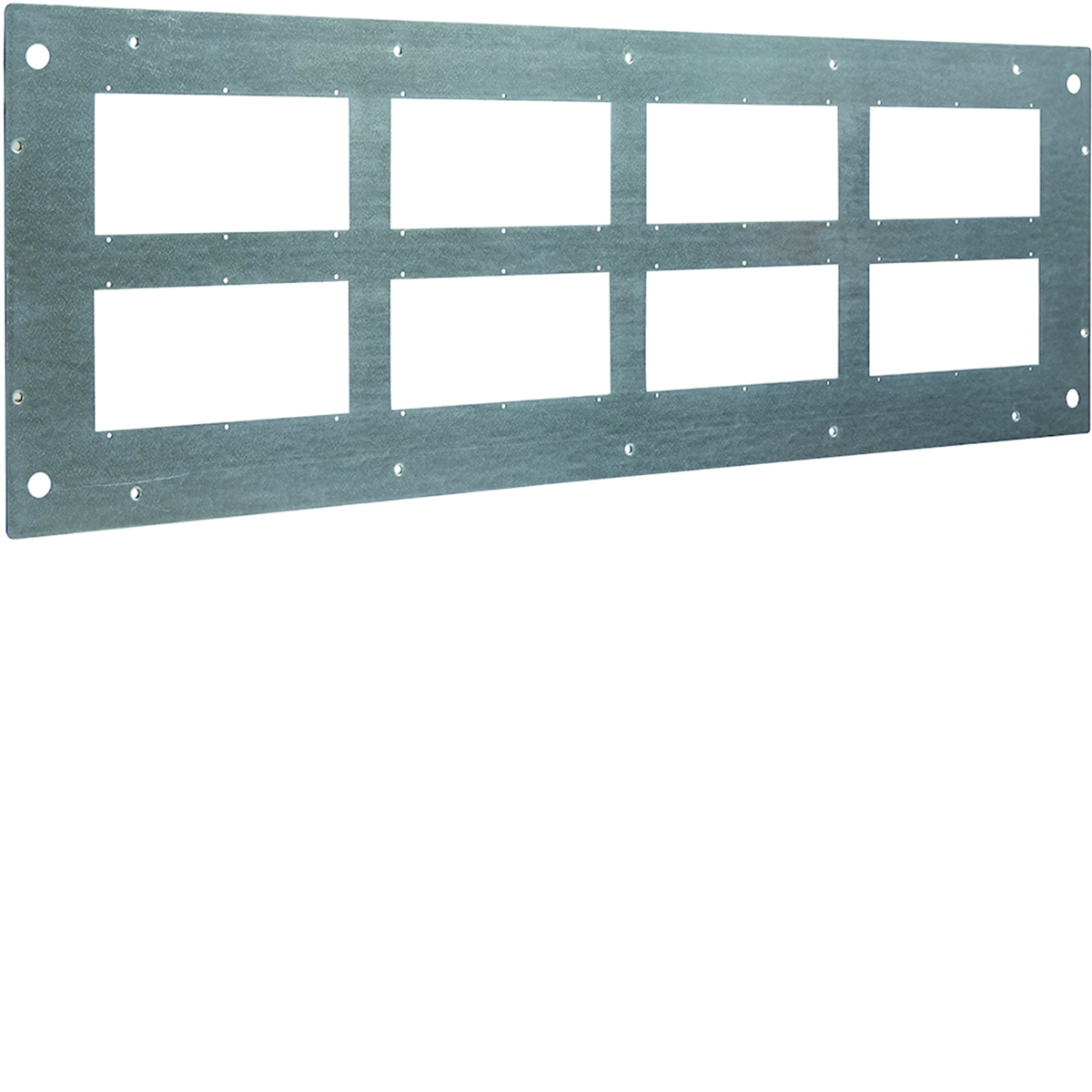

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 400

Thickness [mm]: 1

Material: Galvanized steel sheet

See full description

Price:

99,19 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Closing cover for floor-standing housing, top, with 2 holes per bay, univers N HC series.

Series characteristics:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Depth [mm]

400
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

600
Surface finish

Galvanized
PKWIU

27.12.40.0

Thickness [mm]

1
Fixing

screwed
Level of security

IP41
Height [mm]

1.5
Number of cable entries

4

Other technical data

Suitable for roof planking

Yes
Width

600 mm
Depth

373 mm
Suitable for enclosure building depth

400 mm
Colour

Other
Suitable for outdoor set-up

No

Suitable for bottom planking

No
Height

1.25 mm
Suitable for enclosure building width

600 mm
Material

Steel
With de-aeration

No
With cable entry

Yes

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	100 pcs.
Weight (kg)	1,530	1,540	179,000
Width (m)	0,375	0,375	0,800
Length (m)	0,025	0,025	0,700
Depth (m)	0,600	0,600	1,200
