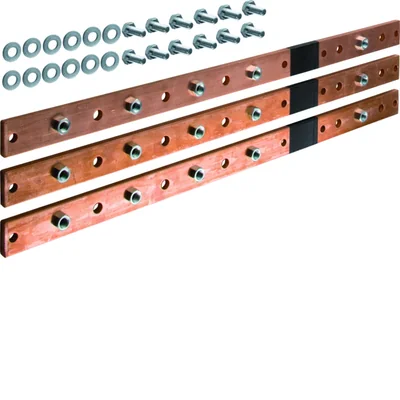

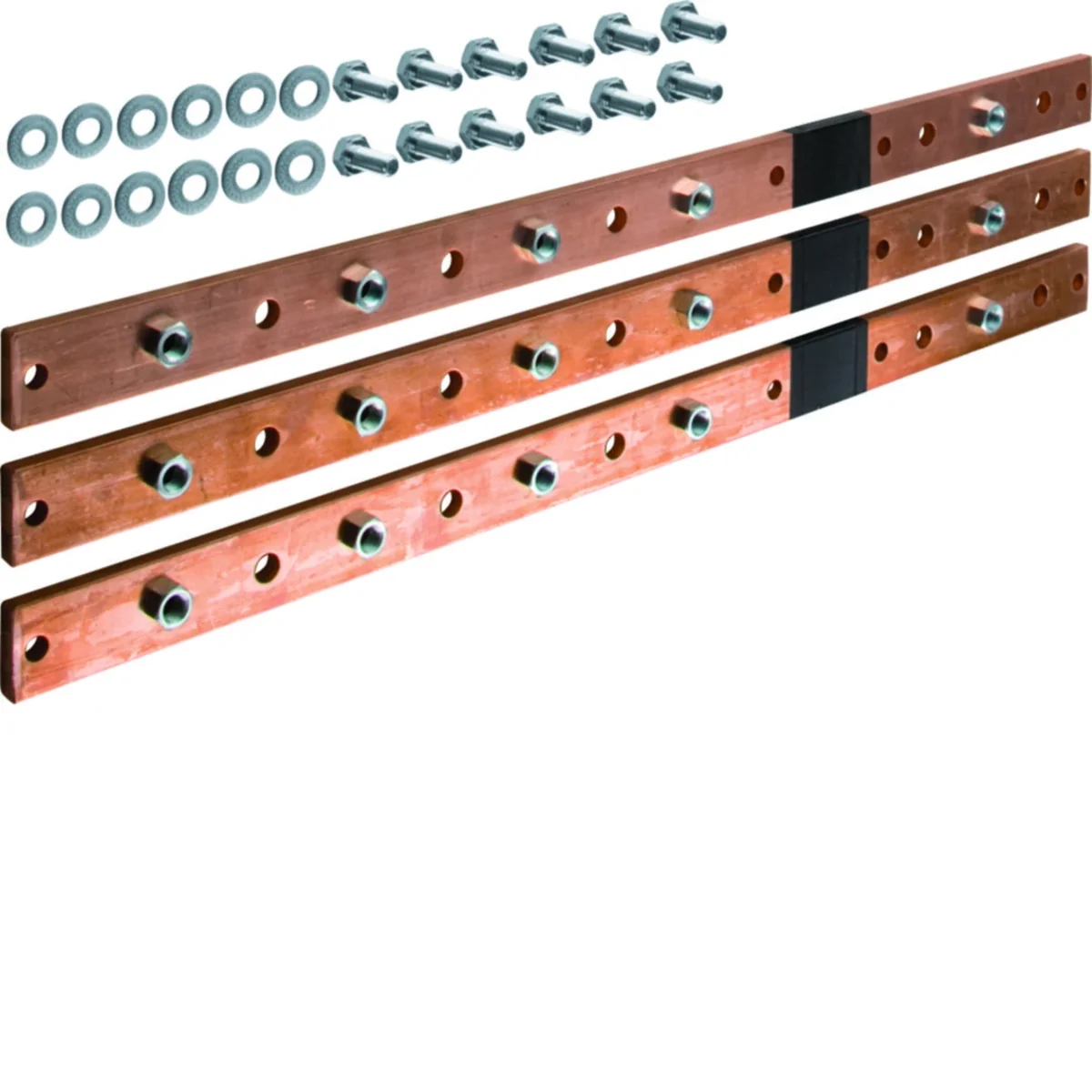

UNIVERS Horizontal rail for NH1/2/3 3-pole 40x10mm switch disconnectors UM04K

local index:
RPU072HAGE
Catalog No:
UM04K
EAN code:
3250616230781
Manufacturer: HAGER
Length [mm]: 745
Depth [mm]: 10
Material: Copper
Price:
370,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Horizontal rail for NH1/2/3 3-pole switch disconnectors, univers series. Made of copper.

Technical data

  • Length [mm]
    745
  • Material
    Copper
  • Family
    UNIVERS
  • Height [mm]
    40
  • Busbar width [mm]
    40
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    800
  • Width [mm]
    745
  • Number of sections
    3
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    800 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 7,378 7,550 400,500
Width (m) 0,745 0,055 0,800
Length (m) 0,040 0,055 0,475
Depth (m) 0,010 0,700 1,200
