UNIVERS Horizontal rail for NH1/2/3 2-pole 40x10mm switch disconnectors UM04M

local index:
RPU074HAGE
Catalog No:
UM04M
EAN code:
3250616230804
Manufacturer: HAGER
Length [mm]: 495
Depth [mm]: 10
Material: Copper
Price:
186,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

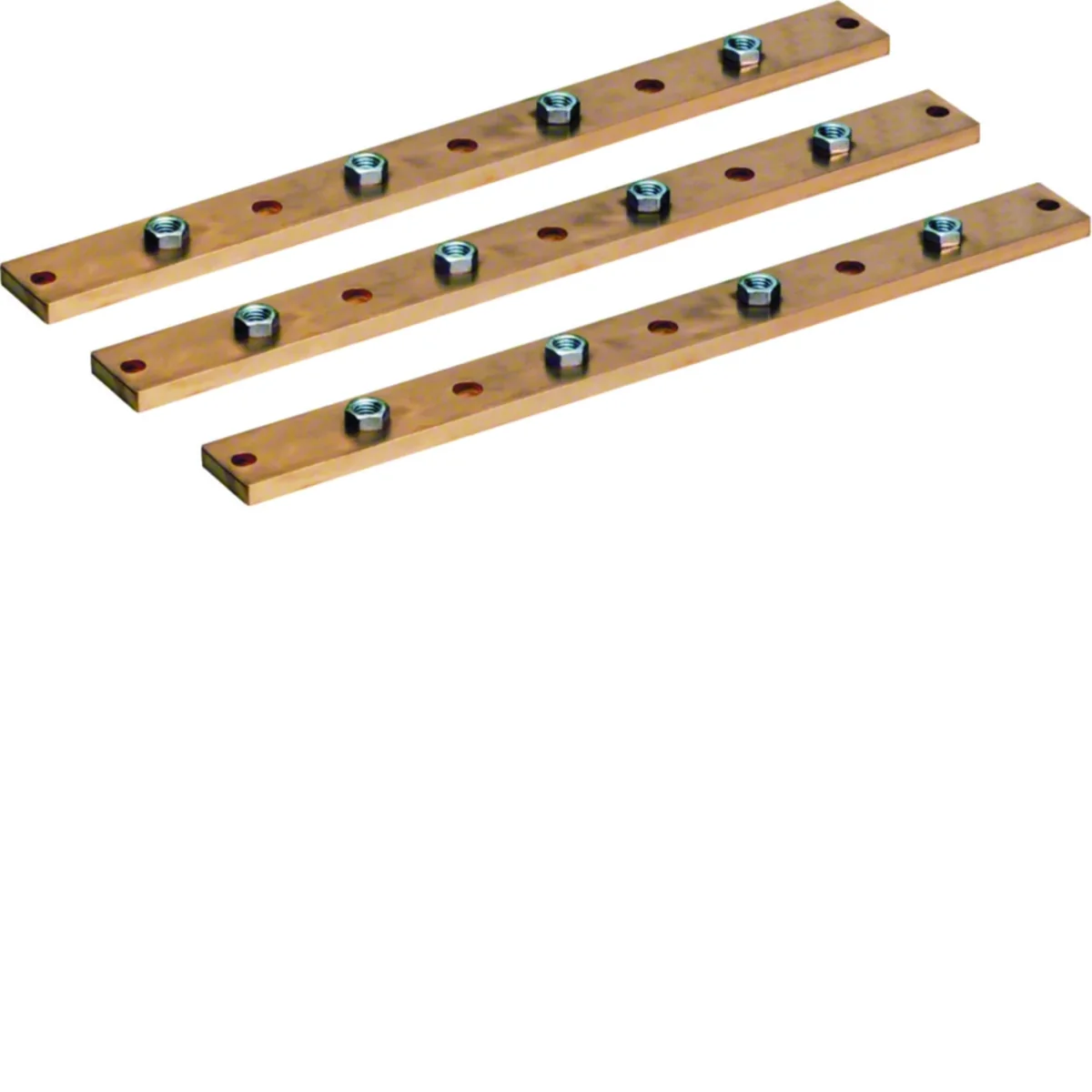

Horizontal rail for NH1/2/3 2-pole switch disconnectors, univers series. Made of copper.

Technical data

  • Length [mm]
    495
  • Material
    Copper
  • Family
    UNIVERS
  • Height [mm]
    40
  • Busbar width [mm]
    40
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    800
  • Width [mm]
    495
  • Number of sections
    2
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    800 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 100 pcs.
Weight (kg) 4,639 4,750 498,000
Width (m) 0,495 0,060 0,800
Length (m) 0,040 0,060 0,420
Depth (m) 0,010 0,450 1,200
