UNIVERS Horizontal rail for NH1/2/3 1-pole 40x10mm switch disconnectors UM01K

local index:
RPU071HAGE
Catalog No:
UM01K
EAN code:
3250616230798
Manufacturer: HAGER
Length [mm]: 190
Depth [mm]: 10
Material: Copper
Price:
79,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

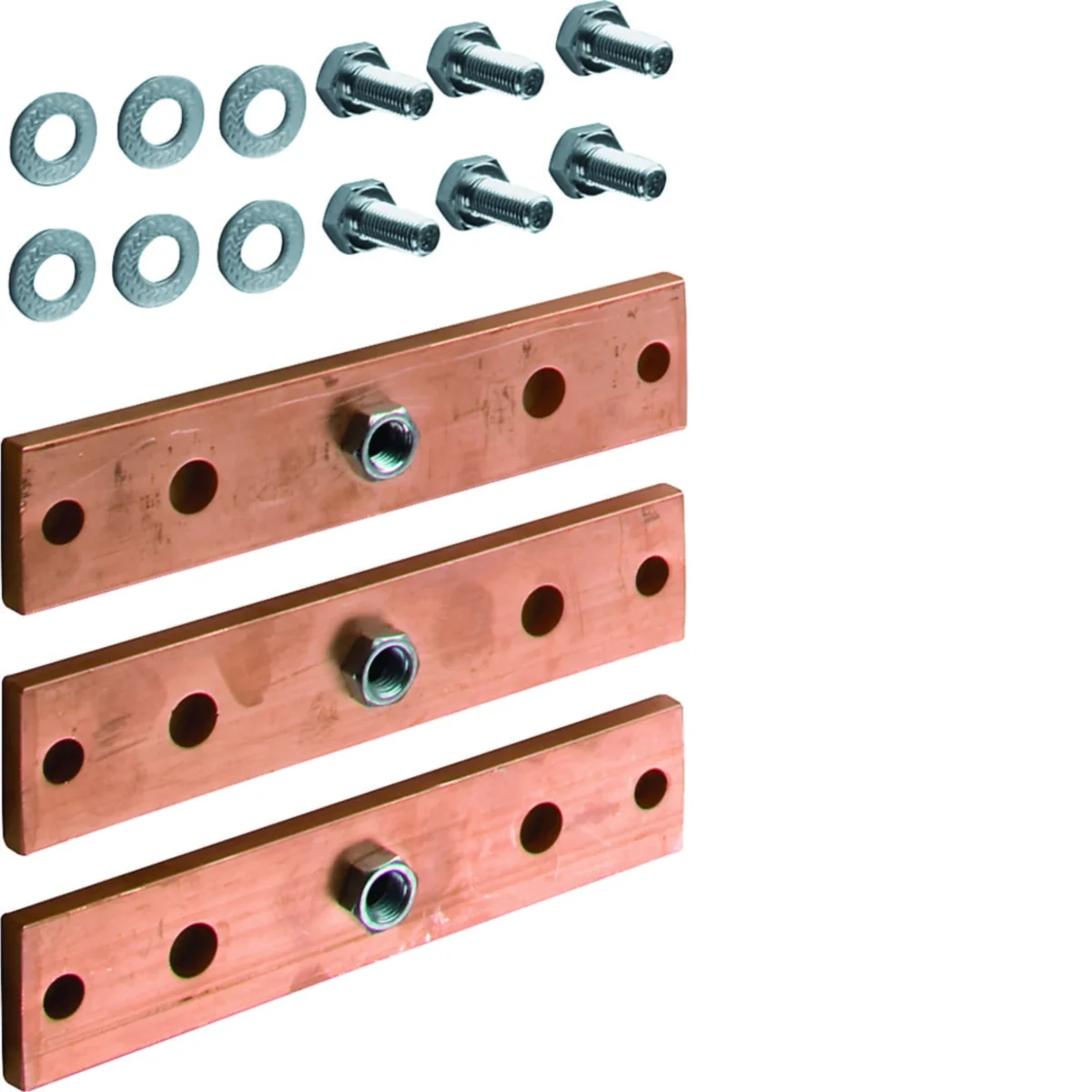

Horizontal rail for NH1/2/3 1-pole switch disconnectors, univers series. Made of copper.

Technical data

  • Length [mm]
    190
  • Material
    Copper
  • Family
    UNIVERS
  • Height [mm]
    40
  • Busbar width [mm]
    40
  • Coverage
    Tin plated
  • Depth [mm]
    10
  • Rated current [A]
    800
  • Width [mm]
    245
  • Number of sections
    1
  • Busbar height [mm]
    10
  • PKWIU
    24.44.22.0

Other technical data

  • Rated current In
    800 A
  • Surface protection
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 200 pcs.
Weight (kg) 2,050 2,110 420,600
Width (m) - 0,140 0,800
Length (m) - 0,025 0,420
Depth (m) - 0,255 1,200
