UNIVERS Full steel door for IP41 enclosure 2000x850mm FZ233XG
local index:
RRR3D6HAGE
Catalog No:
FZ233XG
EAN code:
7611919291606
Price:
493,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Steel full door for enclosures, univers series.
Series characteristics:
Hager cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]20
-
Number of locks1
-
InstallationSurface-mounted
-
Level of securityIP41
-
Height [mm]1900
-
Lock type3mm double closures
-
Thickness [mm]2
-
MaterialGalvanized steel sheet
-
FamilyUNIVERS
-
Width [mm]850
-
Surface finishPowder coated
-
PKWIU27.12.40.0
Other technical data
-
ModelStop door
-
Version as door for disconnecting switch interlockingNo
-

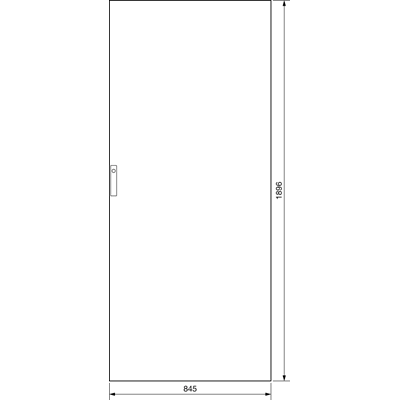

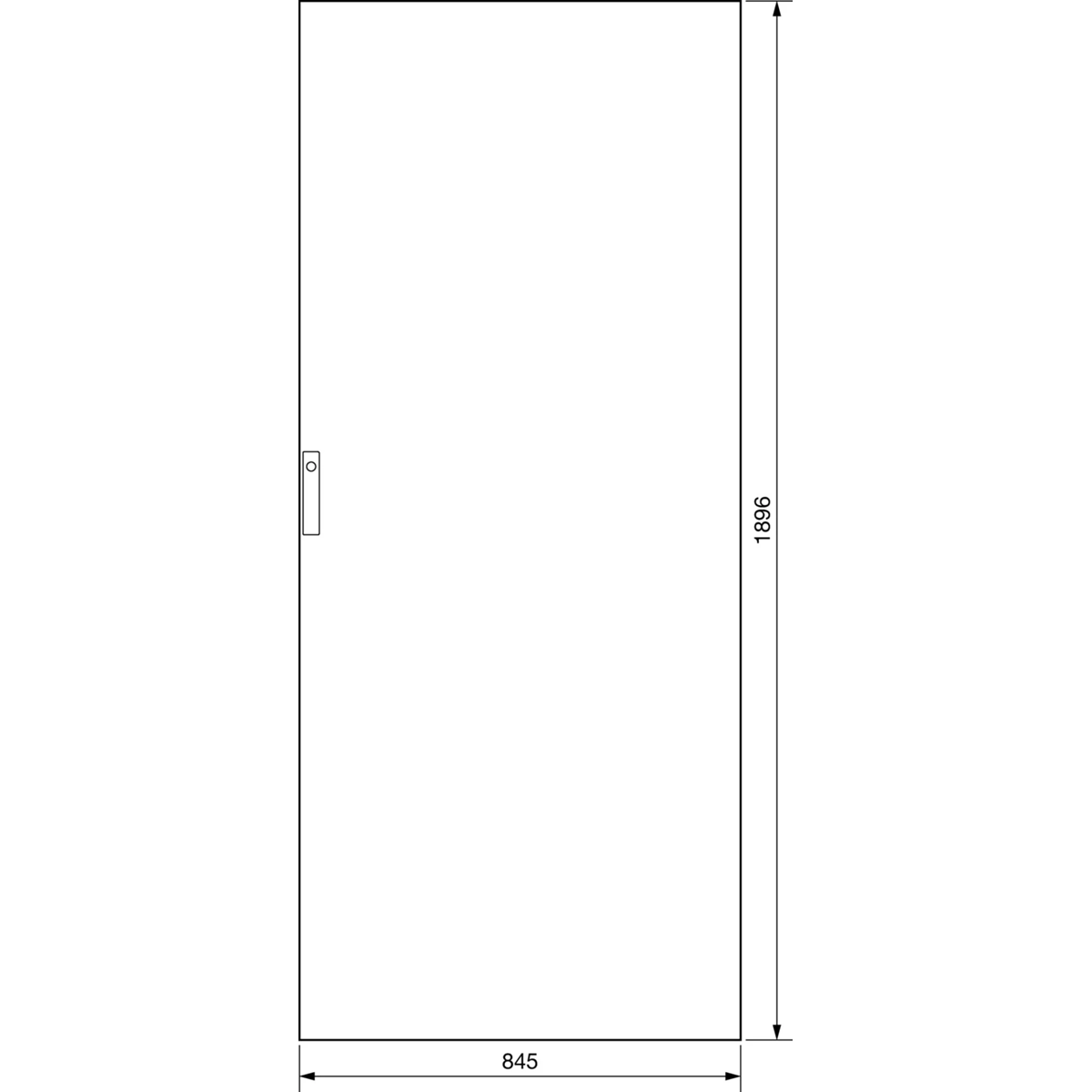

Height1896 mm
-
MaterialSteel
-
ColourGrey
-
Version as glazed doorNo
-
Width845 mm
-
Depth20 mm
-
Surface finishingPowder coating
-
Degree of protection (IP)IP41
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 28,199 | 28,200 | 305,000 |
| Width (m) | 0,845 | 0,850 | 0,800 |
| Length (m) | 1,896 | 0,030 | 2,050 |
| Depth (m) | 0,020 | 1,900 | 1,200 |
