UNIVERS Full steel door for IP41 enclosure 2000x350mm FZ231XG

local index:
RRR3D5HAGE
Catalog No:
FZ231XG
EAN code:
7611919291583
Manufacturer: HAGER
Depth [mm]: 20
Thickness [mm]: 2
Number of locks: 1
Price:
322,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

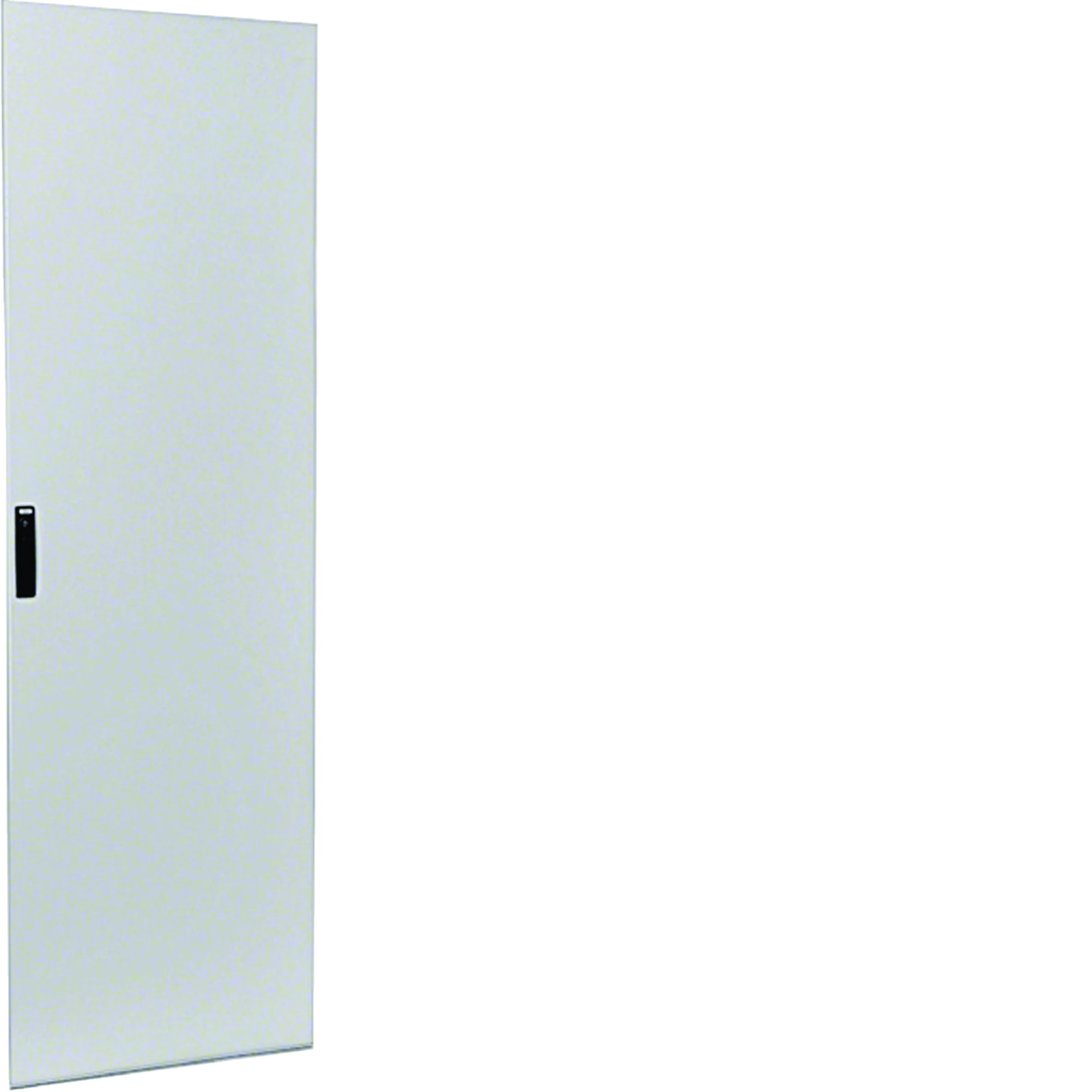

Steel full door for enclosures, univers series.

Series characteristics:

Hager cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    20
  • Number of locks
    1
  • Installation
    Surface-mounted
  • Level of security
    IP41
  • Height [mm]
    1900
  • Lock type
    3mm double closures
  • Thickness [mm]
    2
  • Material
    Galvanized steel sheet
  • Family
    UNIVERS
  • Width [mm]
    350
  • Surface finish
    Powder coated
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Stop door
  • Version as door for disconnecting switch interlocking
    No

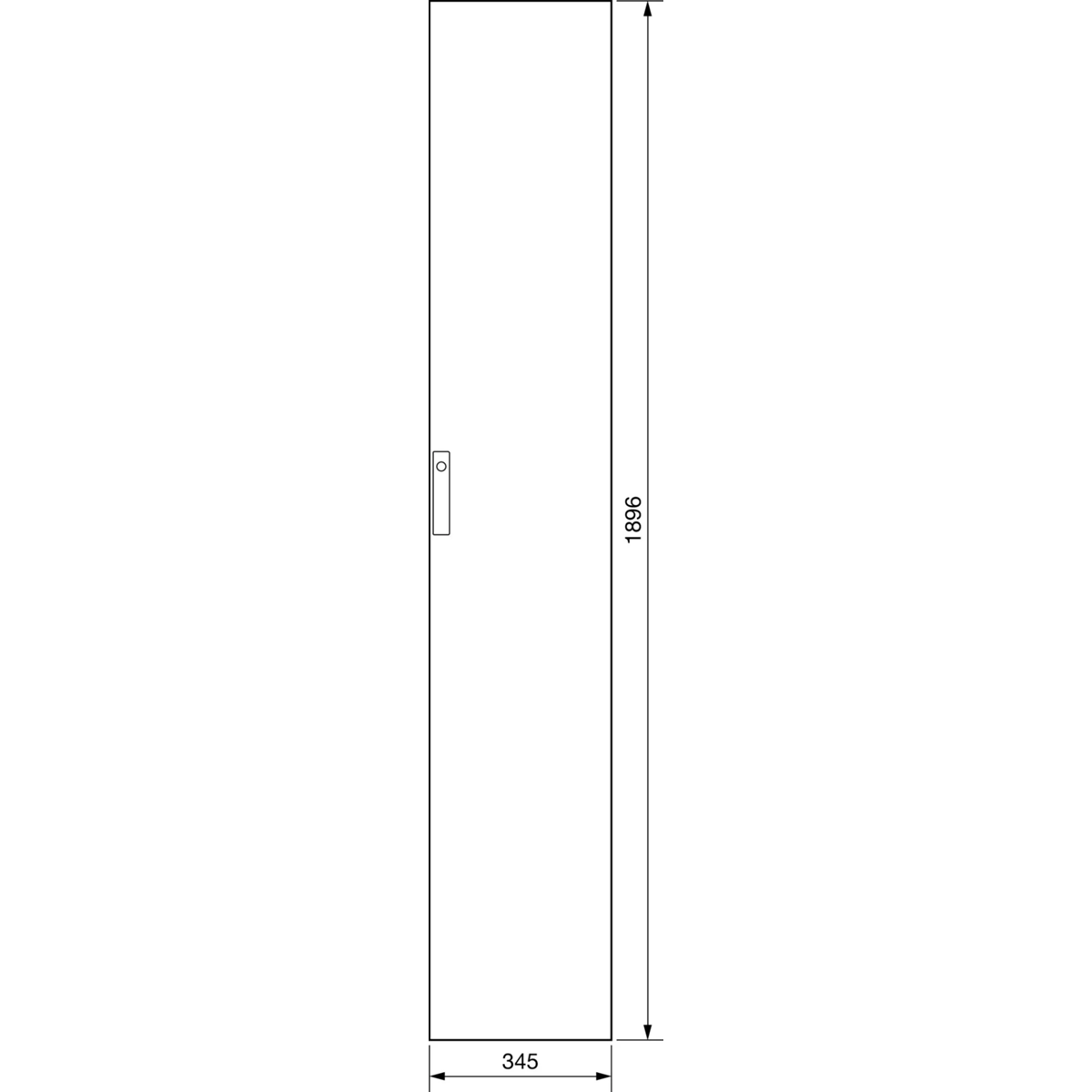

  • Height
    1896 mm
  • Material
    Steel
  • Colour
    Grey
  • Version as glazed door
    No
  • Width
    345 mm
  • Depth
    20 mm
  • Surface finishing
    Powder coating
  • Degree of protection (IP)
    IP41

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 25 pcs.
Weight (kg) 12,599 12,600 315,000
Width (m) 0,345 0,345 1,170
Length (m) 1,896 1,900 1,050
Depth (m) 0,020 0,020 1,900
