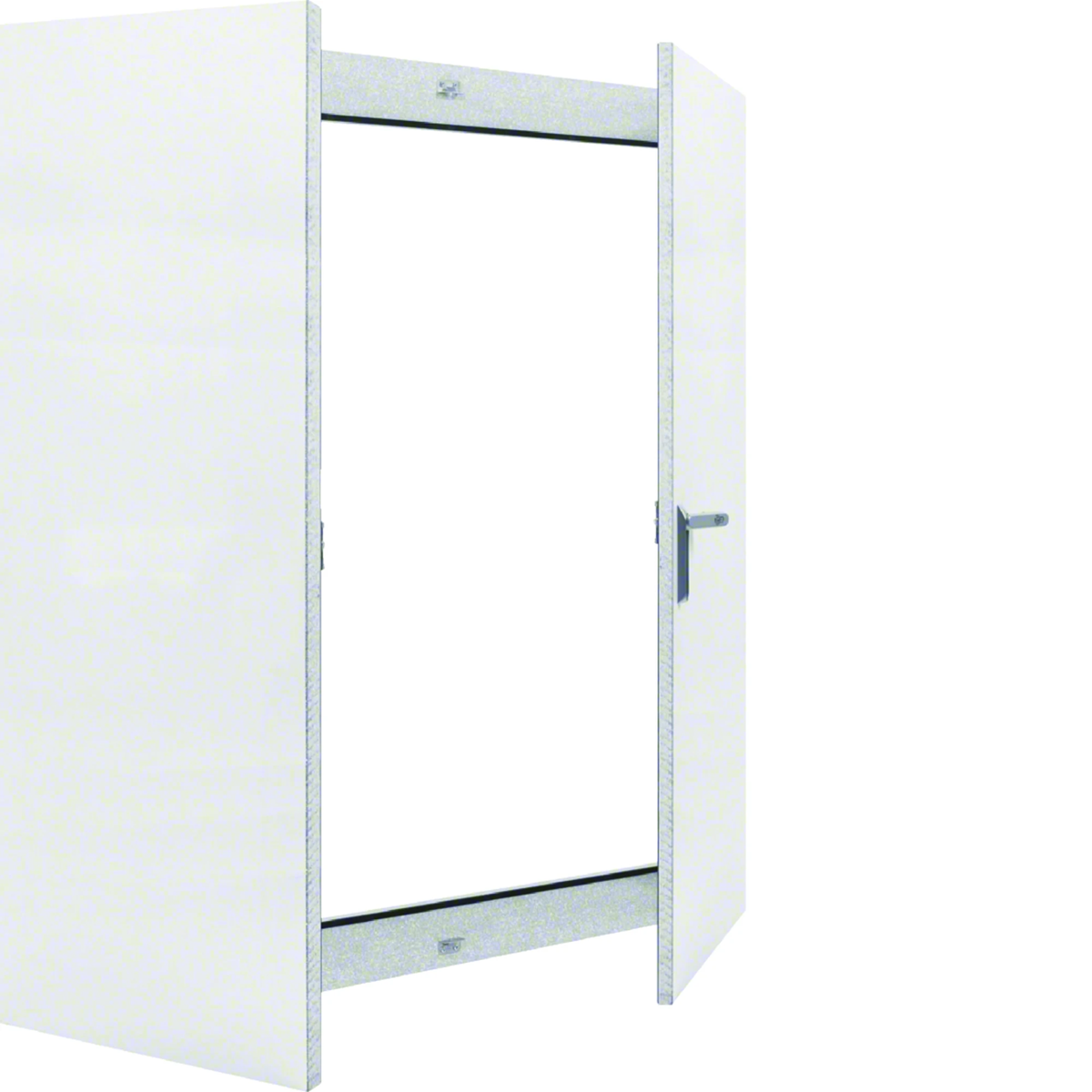

UNIVERS Fire-resistant embedded door I30/F30 1495x1295mm FB84WLN

local index:
RRR2X2HAGE
Catalog No:
FB84WLN
EAN code:
3250612520565
Manufacturer: HAGER
Depth [mm]: 51
Number of doors: 2
Number of locks: 1
Price:
4062,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fireproof door for wall mounting, series univers:

  • type of lock: rotary lever of a semi-cylinder insert,
  • < li> fire resistance: F30/I30,
  • housing material: DIN 4102 Teil1A1 / 2 fire protection panels, fire resistant,

Series characteristics:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    51
  • Number of locks
    1
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    1295
  • Surface finish
    Lacquered
  • Fire resistance
    F30/I30
  • Number of doors
    2
  • Protection class
    II
  • Installation
    Surface-mounted
  • Level of security
    IP42
  • Height [mm]
    1495
  • Number of sections
    4
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Stop door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    1495 mm
  • Material
    Other
  • Colour
    White
  • Version as glazed door
    No
  • Width
    1295 mm
  • Depth
    51 mm
  • Surface finishing
    Lacquered
  • Degree of protection (IP)
    IP42

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 171,000 172,000 1057,000
Width (m) 0,860 0,860 0,860
Length (m) 0,335 0,335 1,950
Depth (m) 1,600 1,600 1,600
