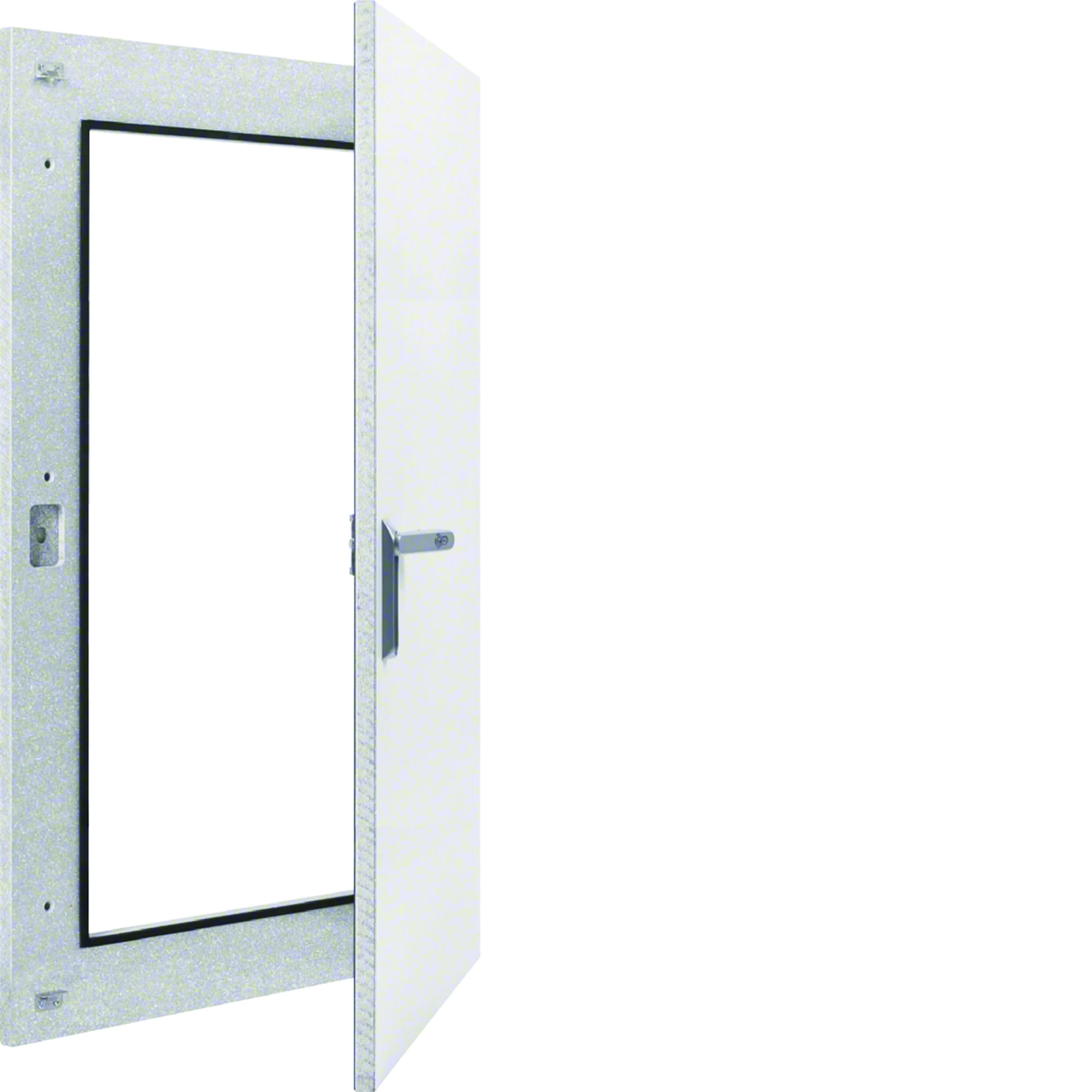

UNIVERS Fire-resistant embedded door I30/F30 1195x575mm FB61WLN

local index:
RRR2W4HAGE
Catalog No:
FB61WLN
EAN code:
3250612520824
Manufacturer: HAGER
Depth [mm]: 51
Number of doors: 1
Number of locks: 1
Price:
1748,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Fireproof door for wall mounting, series univers:

  • lock type: semi-cylinder rotary lever,
  • < li> fire resistance: F30/I30,
  • housing material: DIN 4102 Teil1A1 / 2 fire protection panels, fire resistant,

Series characteristics:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    51
  • Number of locks
    1
  • Color
    White
  • Family
    UNIVERS
  • Width [mm]
    575
  • Surface finish
    Lacquered
  • Fire resistance
    F30/I30
  • Number of doors
    1
  • Protection class
    II
  • Installation
    Surface-mounted
  • Level of security
    IP42
  • Height [mm]
    1195
  • Number of sections
    1
  • PKWIU
    27.12.40.0

Other technical data

  • Model
    Stop door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    1195 mm
  • Material
    Other
  • Colour
    White
  • Version as glazed door
    No
  • Width
    575 mm
  • Depth
    51 mm
  • Surface finishing
    Lacquered
  • Degree of protection (IP)
    IP42

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 5 pcs.
Weight (kg) 93,300 93,400 492,000
Width (m) 0,800 0,800 0,800
Length (m) 0,260 0,260 1,300
Depth (m) 1,300 1,300 1,300
