UNIVERS Embedded fire-resistant door I30/F30 1195x795mm FB62WLN

Name: UNIVERS Embedded fire-resistant door I30/F30 1195x795mm
Brand: HAGER
SKU: RRR2W5HAGE
Price: 1836.96 PLN

local index:

RRR2W5HAGE

Catalog No:

FB62WLN

EAN code:

3250612520831

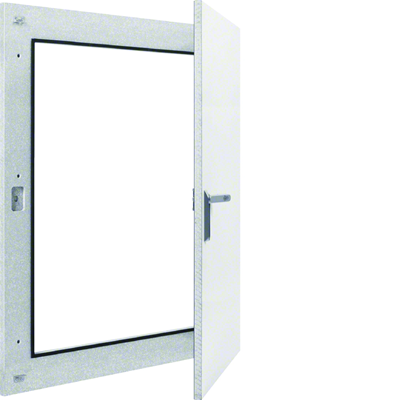

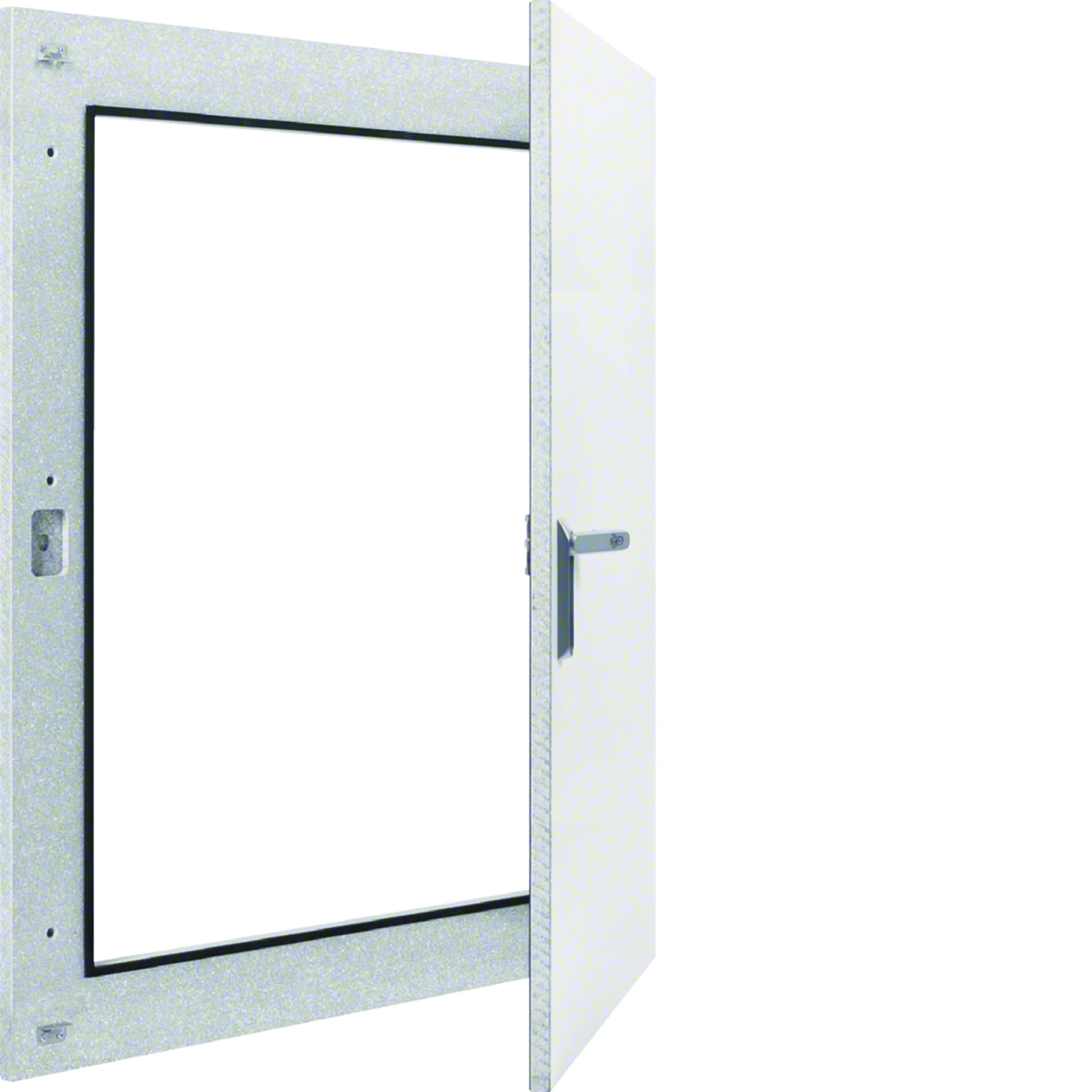

UNIVERS Embedded fire-resistant door I30/F30 1195x795mm

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 51

Number of doors: 1

Number of locks: 1

See full description

Price:

1836,96 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Fireproof door for wall mounting, series univers:

lock type: semi-cylinder rotary lever,
housing material: DIN 4102 Teil1A1 / 2 fire protection panels, fire resistant,

Series characteristics:

The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

Depth [mm]

51
Number of locks

1
Color

White
Family

UNIVERS
Width [mm]

795
Surface finish

Lacquered
Fire resistance

F30/I30

Number of doors

1
Protection class

II
Installation

Surface-mounted
Level of security

IP42
Height [mm]

1195
Number of sections

2
PKWIU

27.12.40.0

Other technical data

Model

Stop door
Version as door for disconnecting switch interlocking

No
Height

1195 mm
Material

Other
Colour

White

Version as glazed door

No
Width

795 mm
Depth

51 mm
Surface finishing

Lacquered
Degree of protection (IP)

IP42

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.
Weight (kg)	107,600	107,700	455,800
Width (m)	0,900	0,900	0,900
Length (m)	0,260	0,260	1,040
Depth (m)	1,300	1,300	1,300
