UNIVERS Distribution box FW empty IP44/II 800x300x160mm FWB51D

local index:
RIH100HAGE
Catalog No:
FWB51D
EAN code:
3250612736812
Manufacturer: HAGER
Depth [mm]: 161
Number of doors: 1
Installation: Flush or surface or semi-recessed
Price:
190,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

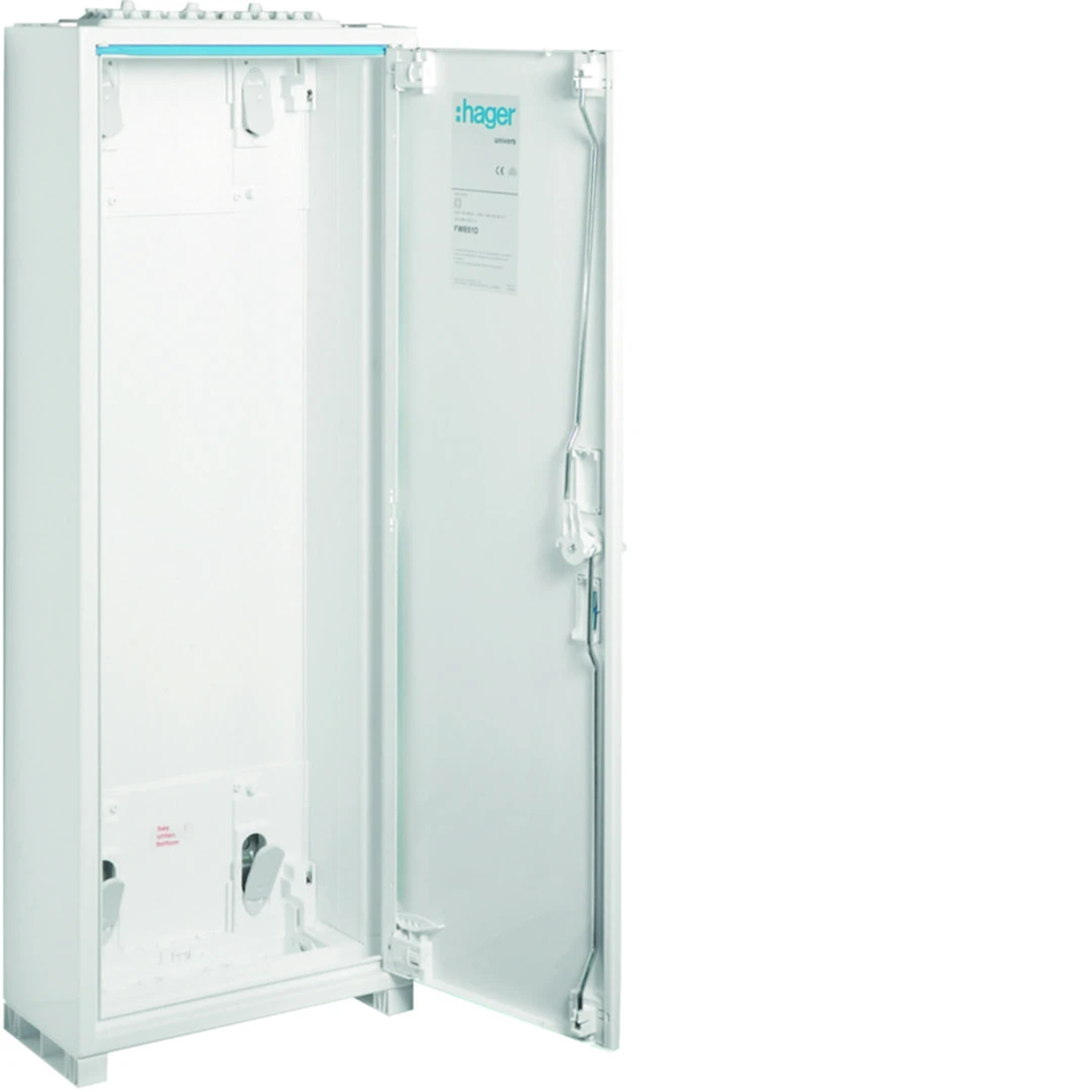

UNIVERS Empty switchgear FW, protection class II

Technical data

  • Depth [mm]
    161
  • Installation
    Flush or surface or semi-recessed
  • Width [mm]
    300
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Level of security
    IP44
  • Height [mm]
    800

Other technical data

  • Mounting method
    Surface mounted/recessed mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Steel
  • Width
    300 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    0
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    800 mm
  • Depth
    161 mm
  • Inner depth
    160 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP44
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 14 pcs.
Weight (kg) 8,200 8,800 148,200
Width (m) 0,300 0,175 0,860
Length (m) 0,800 0,860 0,800
Depth (m) 0,160 0,320 1,200
