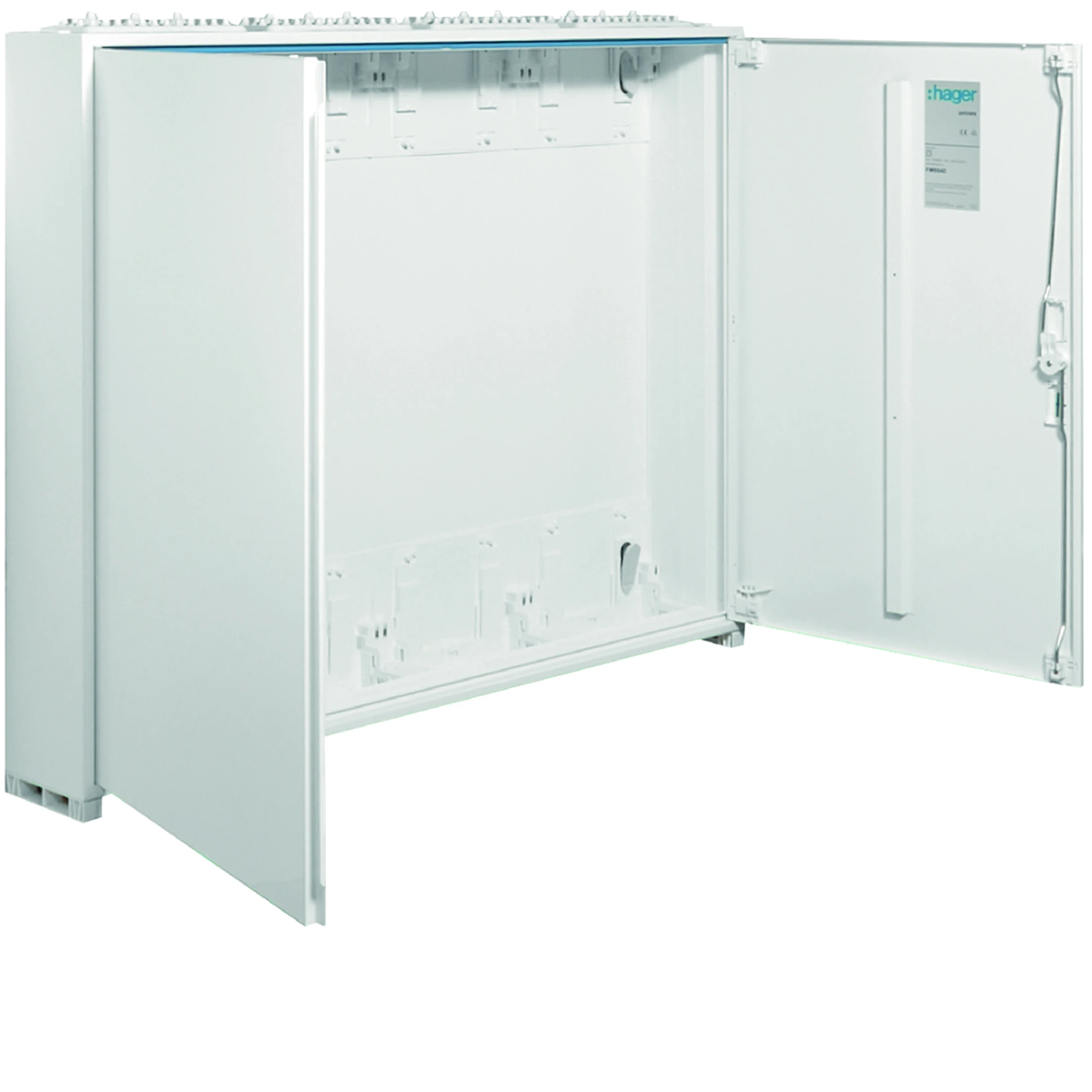

UNIVERS Distribution box FW empty IP44/II 800x1050x160mm FWB54D

local index:
RIH099HAGE
Catalog No:
FWB54D
EAN code:
3250612736843
Manufacturer: HAGER
Depth [mm]: 161
Number of doors: 2
Installation: Flush or surface or semi-recessed
Price:
448,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

UNIVERS Empty switchgear FW, protection class II

Technical data

  • Depth [mm]
    161
  • Installation
    Flush or surface or semi-recessed
  • Width [mm]
    1050
  • PKWIU
    27.12.40.0
  • Number of doors
    2
  • Level of security
    IP44
  • Height [mm]
    800

Other technical data

  • Mounting method
    Surface mounted/recessed mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Steel
  • Width
    1050 mm
  • Inner depth
    156.4 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP44
  • Type of closure
    Other
  • Number of rows
    0
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    800 mm
  • Depth
    161 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 5 pcs.
Weight (kg) 21,400 21,500 132,500
Width (m) 0,170 0,170 0,875
Length (m) 0,850 0,850 0,990
Depth (m) 1,095 1,095 1,200
