UNIVERS Connection socket IP44 housing form 500x1050x205 ZB014S

local index:
RRR4B5HAGE
Catalog No:
ZB014S
EAN code:
3250617620437
Manufacturer: HAGER
Depth [mm]: 205
Number of doors: 2
Number of locks: 1
Price:
338,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

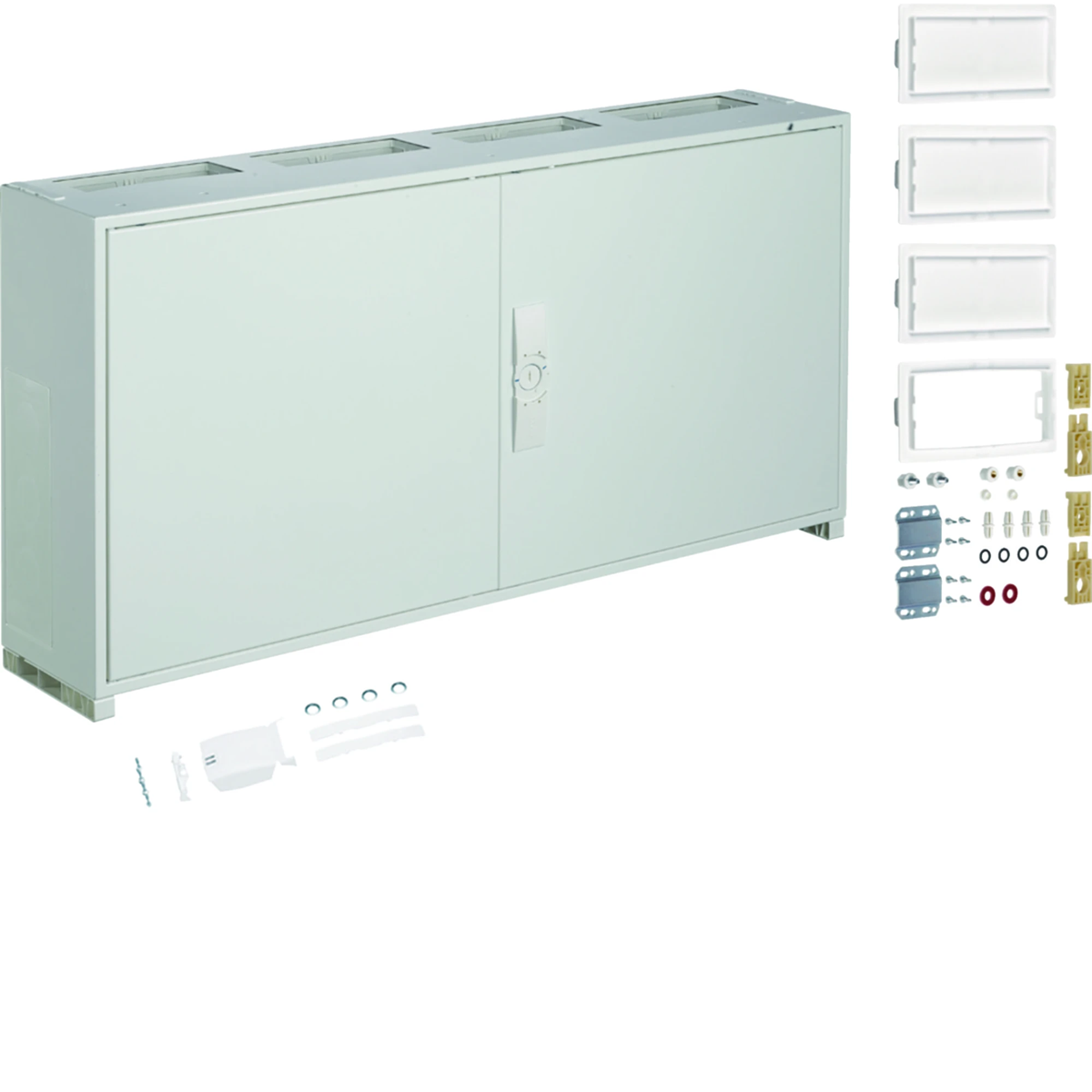

Connection plinth in the form of a housing, from the univers N series.

Series characteristics:

< p> The cabinet systems are functional, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Technical data

  • Depth [mm]
    205
  • Number of locks
    1
  • Color
    White
  • Housing material
    Steel plate
  • Level of security
    IP44
  • Height [mm]
    500
  • Number of sections
    4
  • PKWIU
    27.12.40.0
  • Number of doors
    2
  • Protection class
    II
  • Material
    Galvanized steel sheet
  • Family
    UNIVERS
  • Width [mm]
    1050
  • Surface finish
    Powder coated
  • Number of rows for cameras
    12

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    0 A
  • Width
    1050 mm
  • Built-in depth
    205 mm
  • Material plate thickness door/cover
    1 mm
  • RAL-number
    9010
  • Number of rows
    12
  • Extension possible
    Yes
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP44
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    No
  • Height
    500 mm
  • Depth
    205 mm
  • Material plate thickness cabinet
    1 mm
  • Colour
    White
  • Number of modules
    144
  • Number of openings for flange plates
    4
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 8 pcs.
Weight (kg) 16,049 16,050 153,400
Width (m) 1,050 1,050 0,860
Length (m) 0,500 0,500 1,220
Depth (m) 0,205 0,161 1,200
