UNIVERS Closing plate top closed 1-field depth 400mm II class FZ881SD
local index:
RRR1G2HAGE
Catalog No:
FZ881SD
EAN code:
3250612794249
Price:
59,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

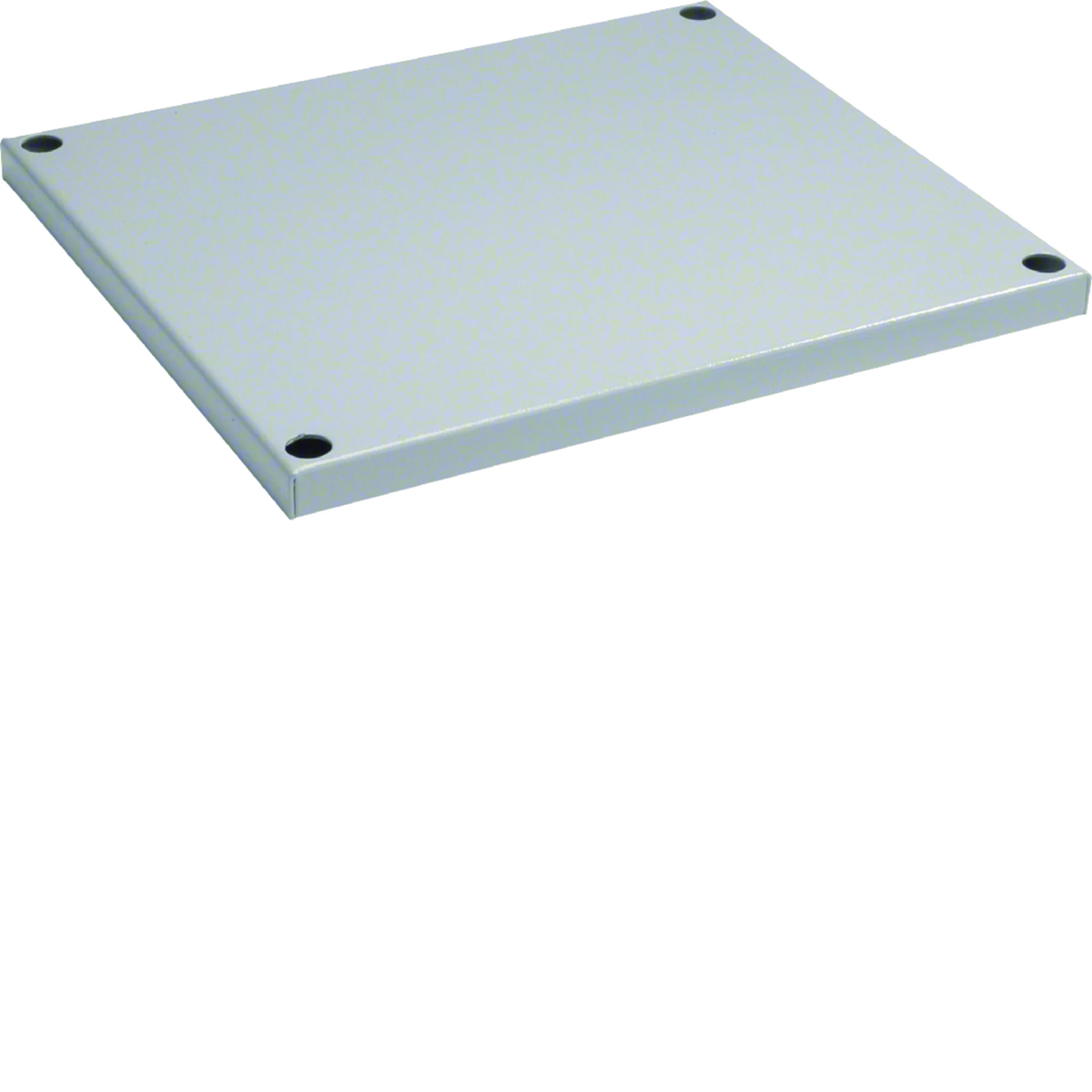

Closing cover for floor-standing housing, top, closed, 1-pole, univers series.
Series characteristics:
Cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.
Technical data
-
Depth [mm]400
-
Protection classII
-
FamilyUNIVERS
-
Height [mm]20
-
PKWIU27.12.40.0
-
Thickness [mm]1.5
-
Materialsteel
-
Width [mm]350
-
Surface finishPowder coated
Other technical data
-
Suitable for roof plankingYes
-
Width350 mm
-
Depth400 mm
-
Surface finishingPowder coating
-
RAL-number7035
-
Suitable for outdoor set-upNo
-
Suitable for bottom plankingYes
-
Height20 mm
-
MaterialSteel
-
ColourGrey
-
With de-aerationNo
-
With cable entryNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 100 pcs. |
| Weight (kg) | 2,510 | 2,520 | 277,000 |
| Width (m) | 0,390 | 0,390 | 0,800 |
| Length (m) | 0,025 | 0,025 | 0,650 |
| Depth (m) | 0,325 | 0,325 | 1,200 |
