UNIVERS Closing cover of IP41 housing, top full without ribs 600x400 FZ882WE

Name: UNIVERS Closing cover of IP41 housing, top full without ribs 600x400
Brand: HAGER
SKU: RRR3M8HAGE
Price: 393.35 PLN
Availability: BackOrder

Índice local:

RRR3M8HAGE

Número de catálogo:

FZ882WE

Código EAN:

7611919323468

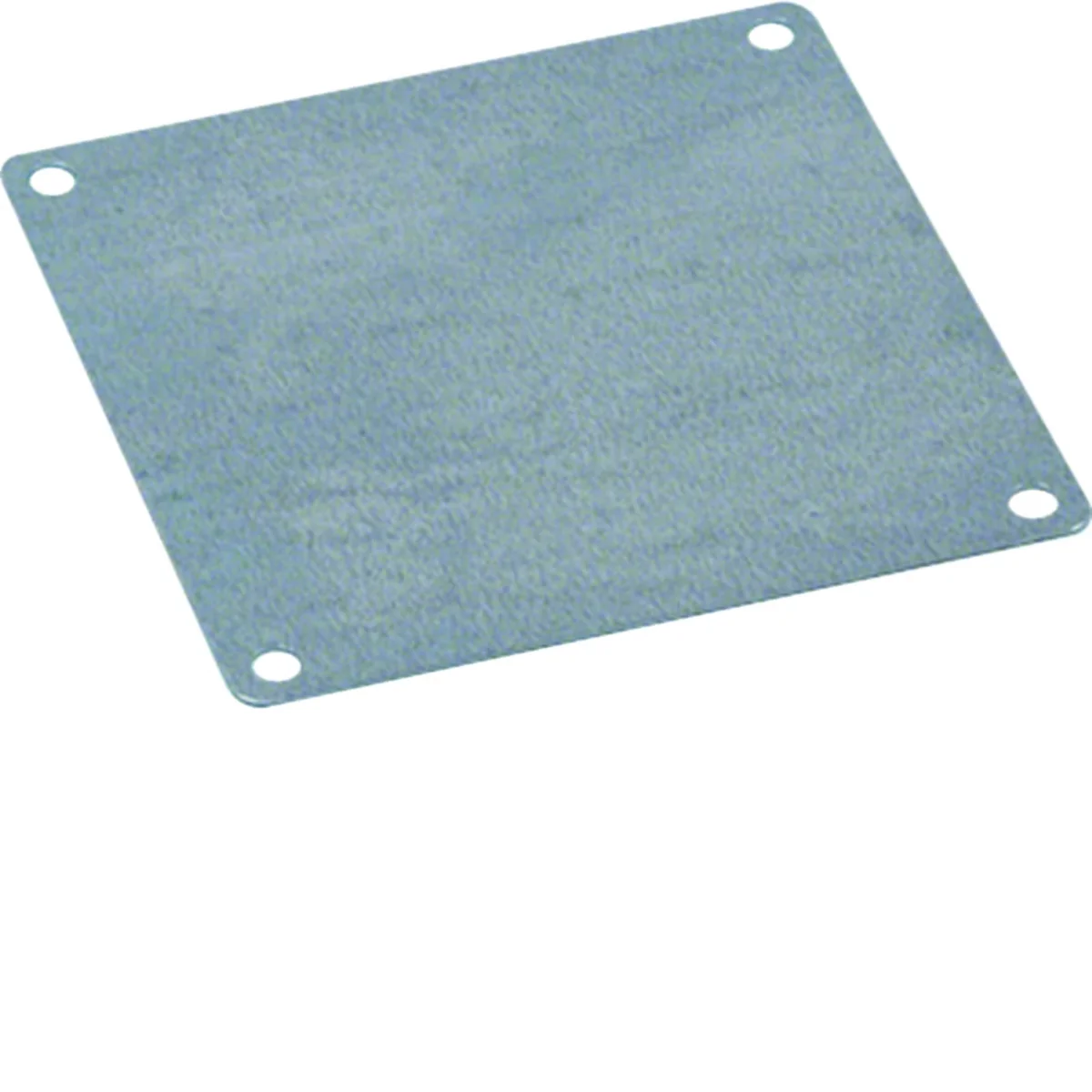

UNIVERS Closing cover of IP41 housing, top full without ribs 600x400

Haga clic en la foto para ampliar

Fabricante: HAGER

Depth [mm]: 400

Thickness [mm]: 1

Material: Galvanized steel sheet

Ver descripción completa

Precio:

393,35 zł

gross / uds.

(IVA incluido 23%)

hasta 10 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Closing cover for a standing enclosure, top, full, without ribs, univers N HC series.

Series characteristics: < /p>

Cabinet systems are characterized by the functionality of installation, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one, compact whole, while guaranteeing maximum safety.

Datos técnicos

Depth [mm]

400
Material

Galvanized steel sheet
Family

UNIVERS
Width [mm]

600
Surface finish

Galvanized
PKWIU

27.12.40.0

Thickness [mm]

1
Fixing

screwed
Level of security

IP41
Height [mm]

1.5
Number of cable entries

4

Otros datos técnicos

Suitable for roof planking

Yes
Width

600 mm
Depth

373 mm
Suitable for enclosure building depth

400 mm
Surface finishing

Galvanized
With de-aeration

No
With cable entry

No

Suitable for bottom planking

No
Height

1.25 mm
Suitable for enclosure building width

600 mm
Material

Steel
Colour

Other
Suitable for outdoor installation

No

Detalles del fabricante

Fabricante

Hager Electro GmbH & Co KG
Dirección

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Empaquetado a granel

una especie de paquete	Karton	Paleta	Karton	Paleta
Cantidad	1 uds.	50 uds.	1 uds.	50 uds.
Peso (kg)	2,400	120,000	2,400	120,000
Ancho (m)	0,380	0,800	0,380	0,800
Longitud (m)	0,020	0,540	0,020	0,540
Profundidad (m)	0,610	1,200	0,610	1,200
