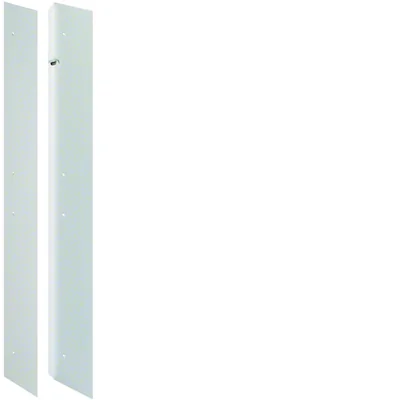

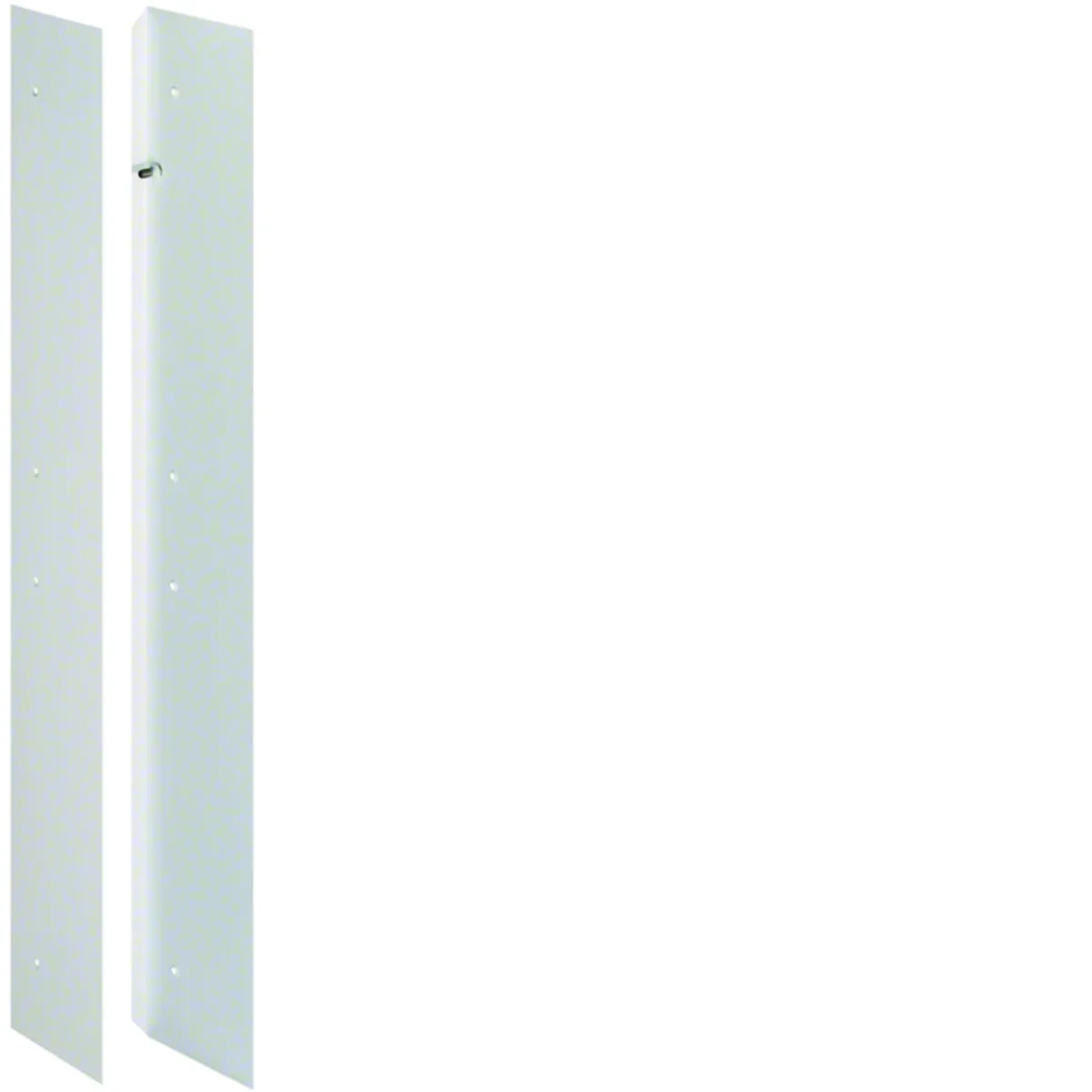

UNIVERS AP Shaft frames - side walls left/right 1700mm FR110A

local index:
RRR4D0HAGE
Catalog No:
FR110A
EAN code:
3250612680153
Manufacturer: HAGER
Depth [mm]: 157
Color: White
Material: Galvanized steel sheet
Price:
107,66 €
gross / set
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity set
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface mounted shaft frames, left/right side walls, univers AP series:

  • Degree of protection: IP30,
  • Protection class I.

Series characteristics:

The cabinet systems are characterized by built-in functionality, not only as distribution switchboards (main power supply), but also as meter cabinets - they always form one compact whole, guaranteeing maximum safety.

Technical data

  • Depth [mm]
    157
  • Material
    Galvanized steel sheet
  • Height [mm]
    1700
  • PKWIU
    27.12.40.0
  • Color
    White
  • Family
    UNIVERS AP
  • Surface finish
    Lacquered

Other technical data

  • Suitable as side panel
    Yes
  • Suitable for enclosure building depth
    160 mm
  • Height
    1700 mm
  • Surface finishing
    Lacquered
  • RAL-number
    9010
  • Suitable as rear panel
    No
  • Width
    160 mm
  • Material
    Steel
  • Colour
    Grey

Bulk packaging

A kind of package Karton Paleta
Quantity 1 set 1 set 50 set
Weight (kg) 5,200 5,600 305,000
Width (m) 0,190 0,190 1,170
Length (m) 0,050 0,050 1,050
Depth (m) 1,740 1,740 1,740
