UNIbox Uni-2 enclosure 43.2

local index:
RIH013ELOP
Catalog No:
43.2
EAN code:
5905548285726
Depth [mm]: 196
Level of security: IP65
Width [mm]: 400
Price:
74,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

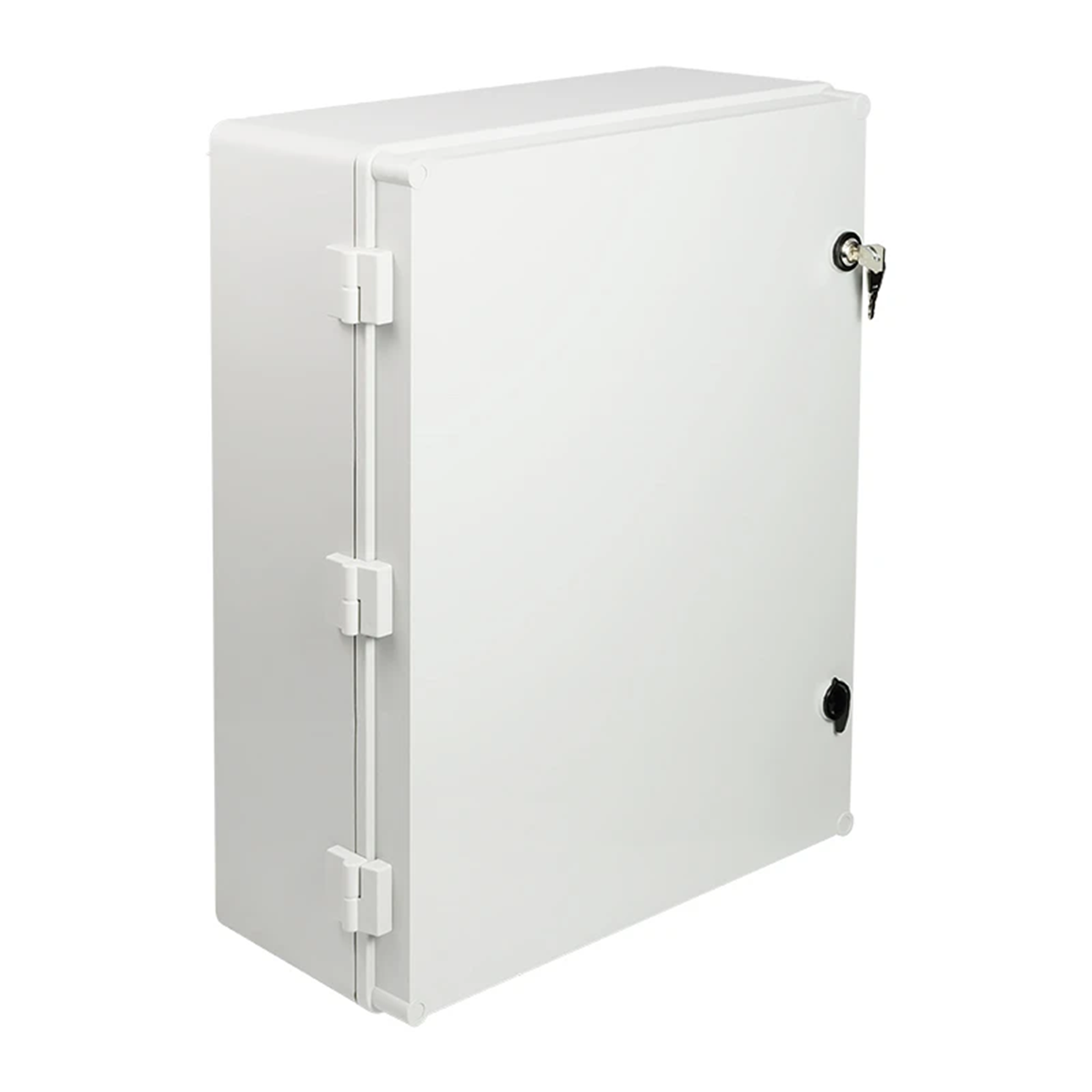

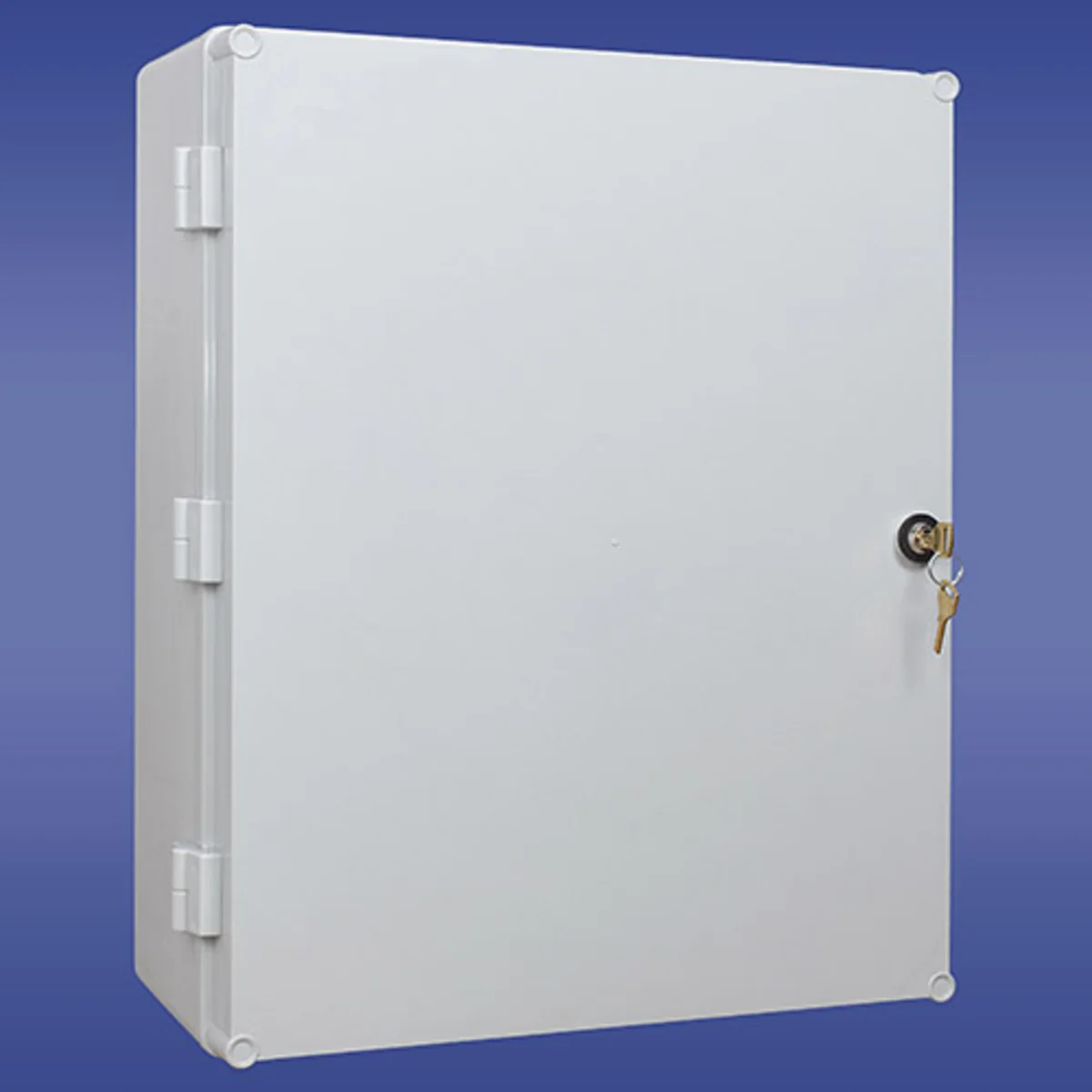

Uni-box enclosures are constructions that are a safe and aesthetic product for mounting low voltage units, "S" type fuse units, single and three-phase meters, control devices as well as other electrical devices. The enclosures are made of PC plastic (polycarbonate) in the color gray, equipped with a seal that allows for high tightness parameters, a perforated mounting plate, doors in gray or transparent on hinges closed with one or two locks with a key. Versatility of use and carefully made elements in the end result in a solidly made and aesthetically-looking housing.

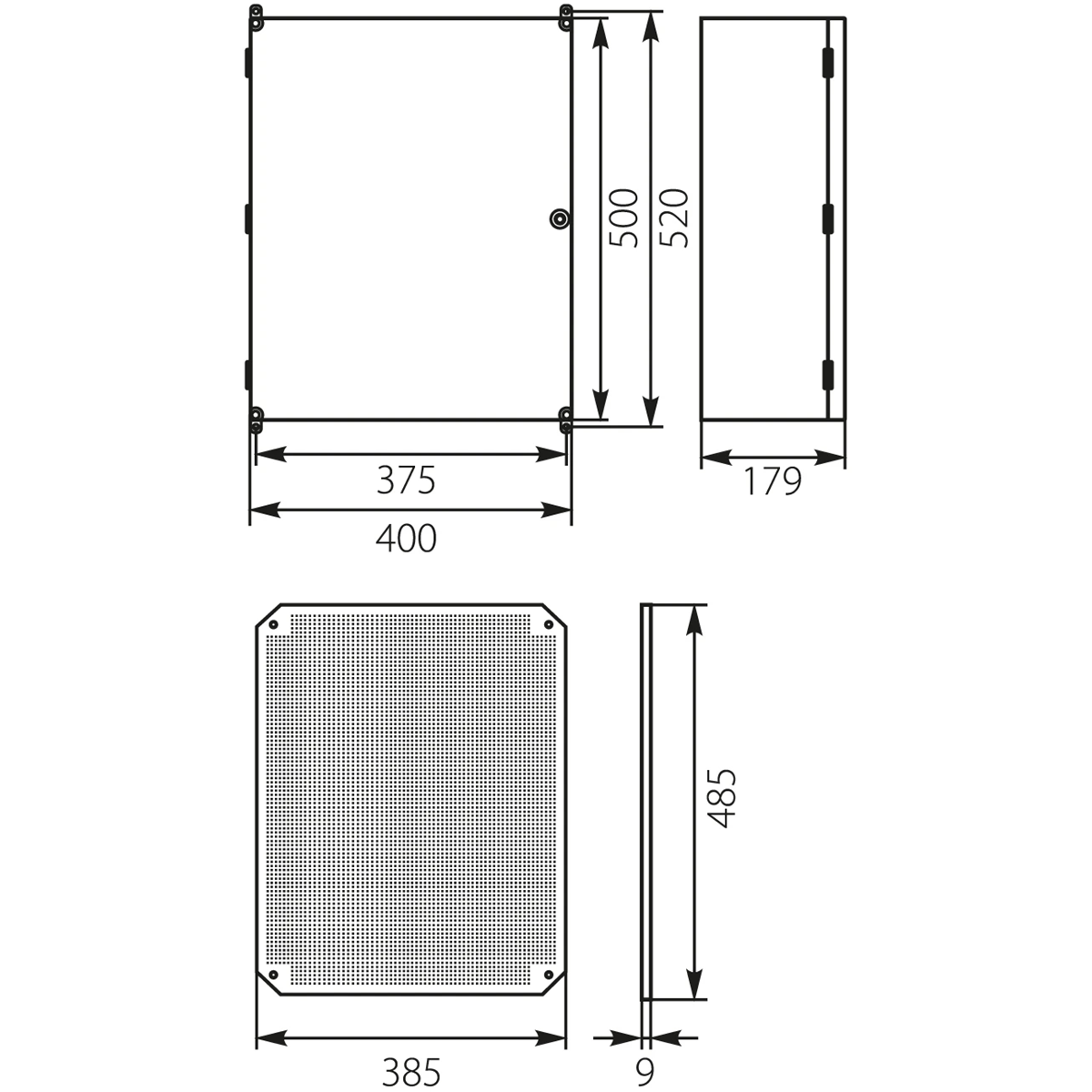

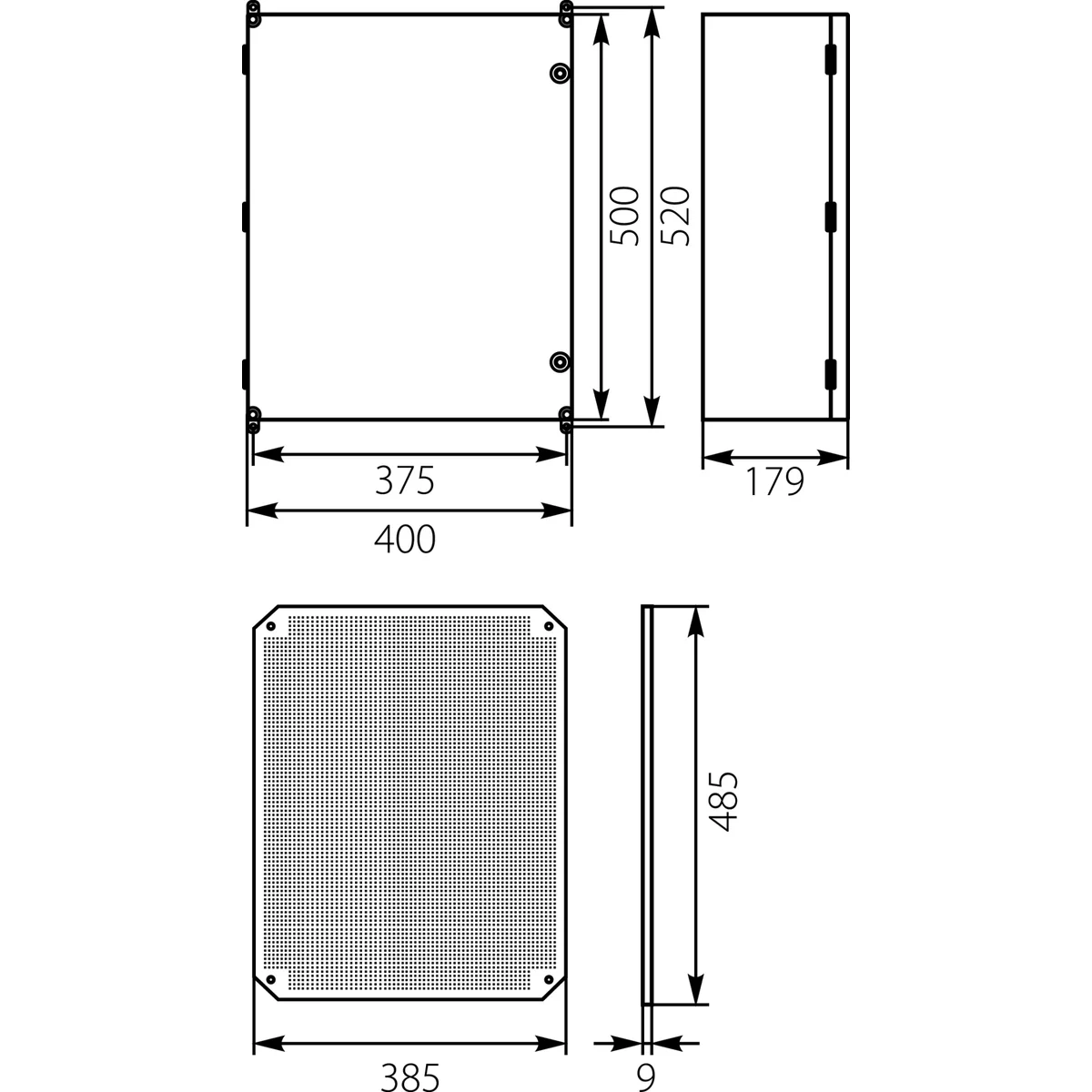

Technical data

  • Depth [mm]
    196
  • Width [mm]
    400
  • PKWIU
    27.12.31.0
  • Level of security
    IP65
  • Height [mm]
    500

Other technical data

  • Width
    400 mm
  • Depth
    179 mm
  • Material quality
    ABS
  • Colour
    Grey
  • With mounting plate
    Yes
  • Number of locks
    2
  • Pole fastening
    No
  • Suitable for metrical mounting
    No
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP65
  • Height
    500 mm
  • Material
    Plastic
  • Surface finishing
    Untreated
  • RAL-number
    7035
  • Mounting plate depth-adjustable
    No
  • Suitable for wall built-in
    No
  • Number of doors
    1
  • Suitable for outdoor set-up
    No
  • EMC-version
    Yes
  • With ventilation door
    No
  • Impact strength
    IK07
  • Degree of protection (NEMA)
    12

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 4,540 0,510
