UNIbox Uni-1/T enclosure 43.11

Indice locale:
RIH040ELOP
Numero di catalogo:
43.11
Codice EAN:
5905548285757
Prezzo:
210,85 zł
gross / pezzi
(inclusa IVA 23%)
fino a 2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

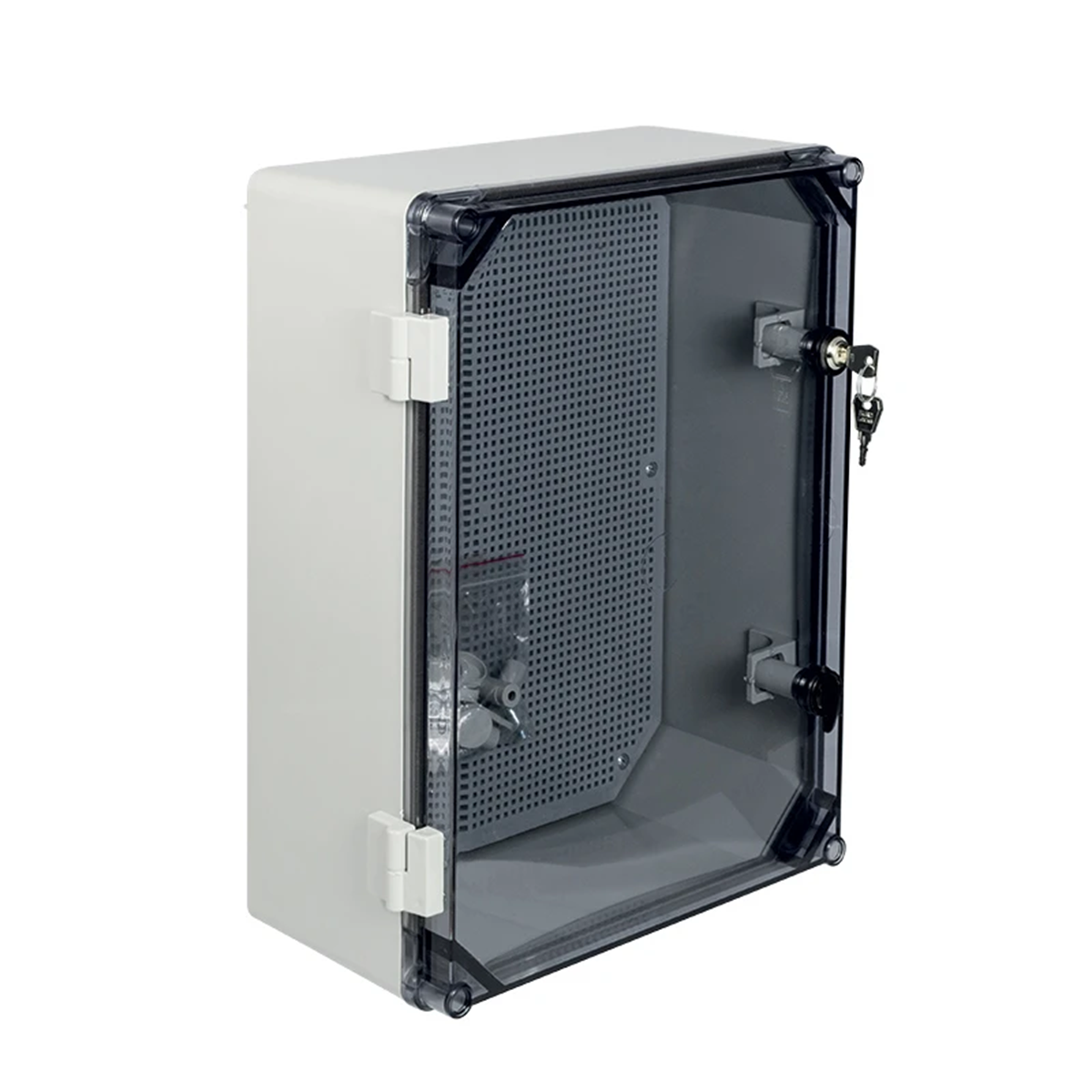

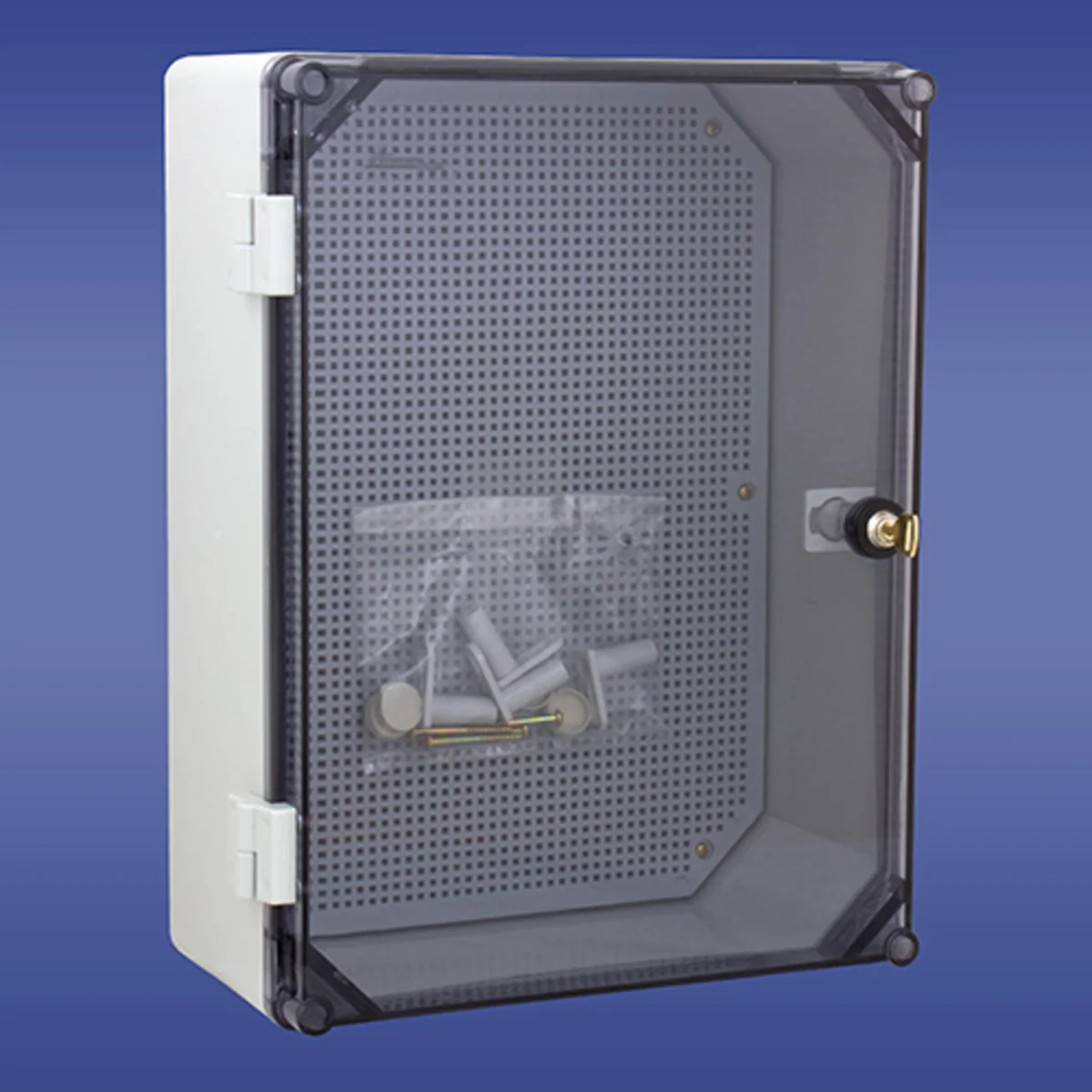

Uni-box enclosures are constructions that are a safe and aesthetic product for mounting low voltage units, "S" type fuse units, single and three-phase meters, control devices as well as other electrical devices. The enclosures are made of PC plastic (polycarbonate) in the color gray, equipped with a seal that allows for high tightness parameters, a perforated mounting plate, doors in gray or transparent on hinges closed with one or two locks with a key. Versatility of use and carefully made elements in the end result in a solidly made and aesthetically-looking housing. T- (door / cover) external transparent color

Dati tecnici

  • Color
    Gray
  • PKWIU
    27.12.31.0

Altri dati tecnici

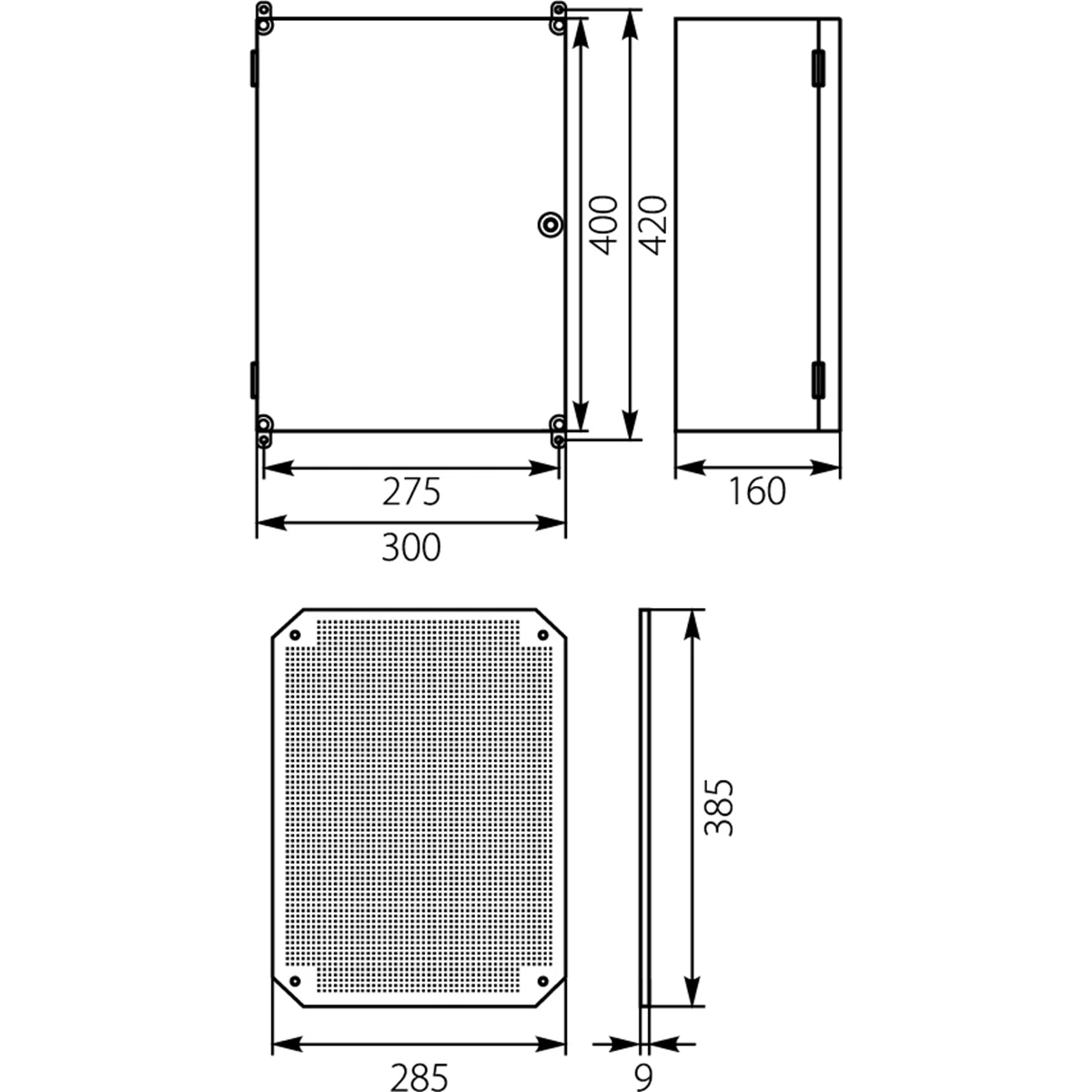

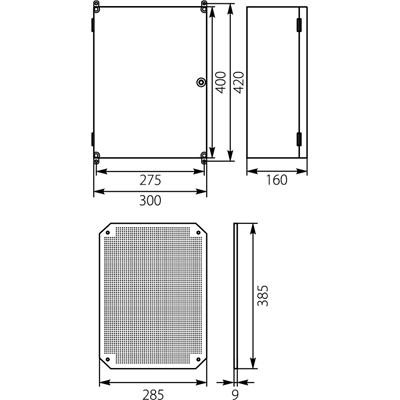

  • Width
    300 mm
  • Depth
    160 mm
  • Material quality
    ABS
  • Colour
    Grey
  • Suitable for wall mounting
    Yes
  • Mounting plate depth-adjustable
    No
  • Pole fastening
    No
  • Number of doors
    1
  • With ventilation door
    No
  • Number of locks
    2
  • Pitched roof
    No
  • Impact strength
    IK07
  • Degree of protection (NEMA)
    12
  • Height
    400 mm
  • Material
    Plastic
  • Surface finishing
    Untreated
  • RAL-number
    7035
  • With mounting plate
    Yes
  • Suitable for wall built-in
    No
  • With door
    Yes
  • With glazed door
    Yes
  • With rear door
    No
  • Suitable for metrical mounting
    No
  • EMC-version
    Yes
  • Degree of protection (IP)
    IP65

Dettagli del produttore

  • Produttore
    Z.P.H. ELEKTRO-PLAST Sp. z o.o.
  • Indirizzo
    62-860 Opatówek Rogatka 14 Polska

Imballaggio sfuso

Una specie di pacchetto Sztuka
Quantità 1 pezzi
Peso (kg) 0,382
Larghezza (m) 0,182
Lunghezza (m) 0,325
Profondità (m) 0,410
