TPGE-M16 bushing TPGE-M16

local index:
RRR107BORP
Catalog No:
TPGE-M16
EAN code:
5901924533788
Manufacturer: TRYTYT
Wall thickness [mm]: 1-4
Color: Gray
Maximum operating temperature [°C]: 110
Price:
7,07 €
gross / pkg.
(including VAT 23%)
0,71 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

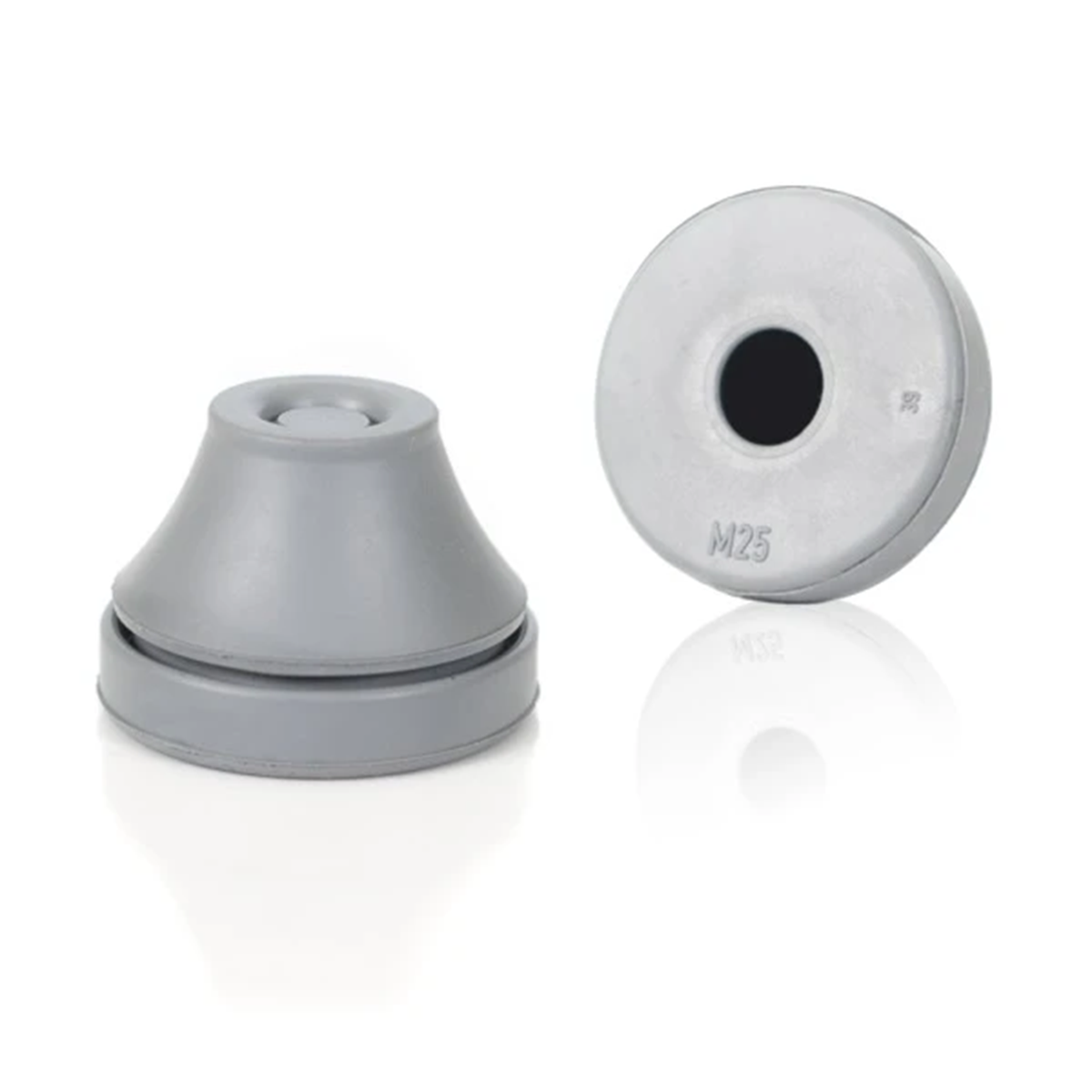

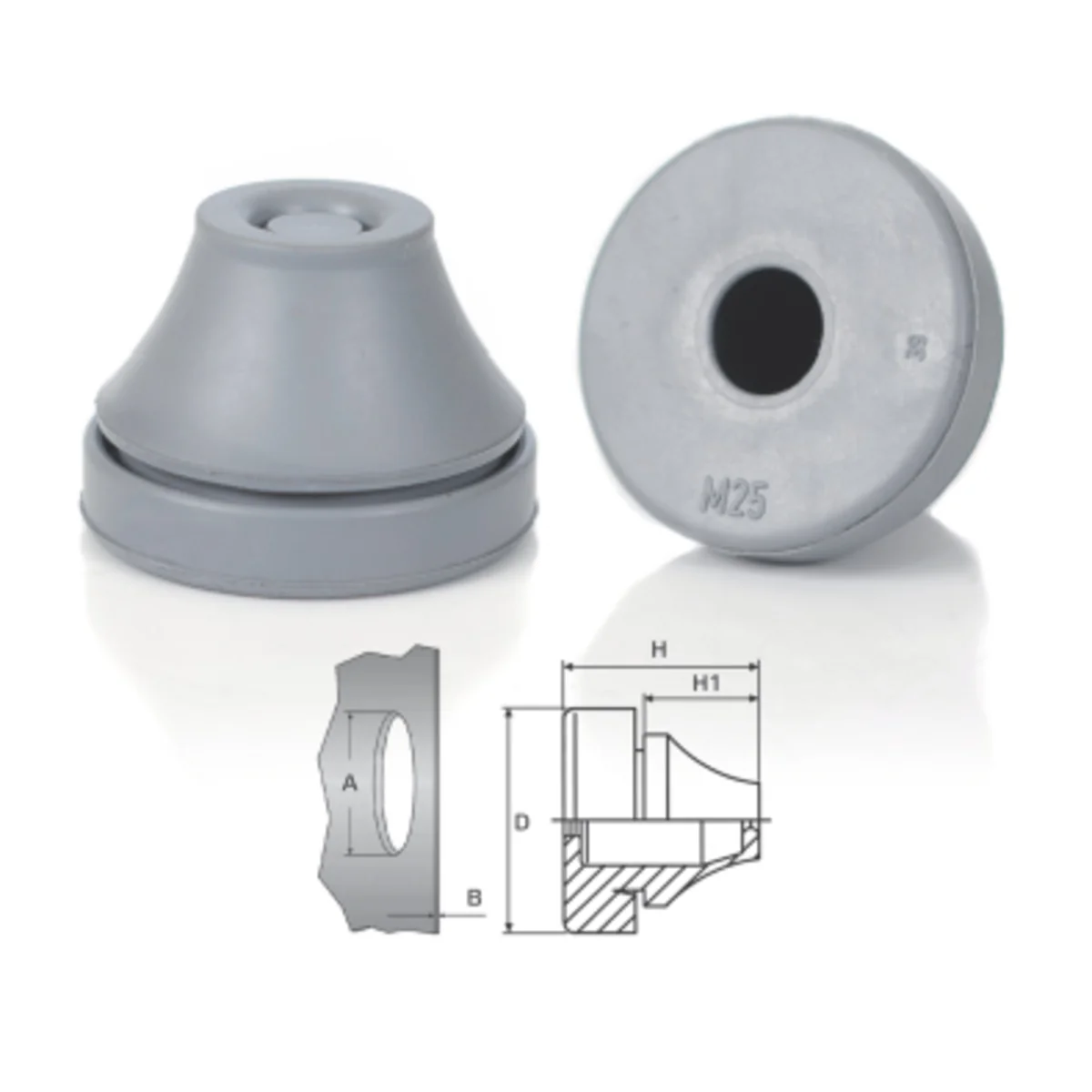

The TPGE rubber cable gland is a quick and easy-to-install element for routing cables through device housings, etc. TPGE, if necessary, can also be used as a plug for the hole with the gland function. TPGE as a cable gland ensures dust and water tightness of the housing in accordance with IP67. Most often used in electrical and hydraulic devices, means of transport, lighting fixtures, etc.

Technical data

  • Wall thickness [mm]
    1-4
  • Maximum operating temperature [°C]
    110
  • Level of security
    IP67
  • Cable diameter [mm]
    5-9
  • PKWIU
    22.19.73.0
  • Color
    Gray
  • Material
    Neoprene
  • Pieces in the package
    10
  • Minimum operating temperature [°C]
    -40
