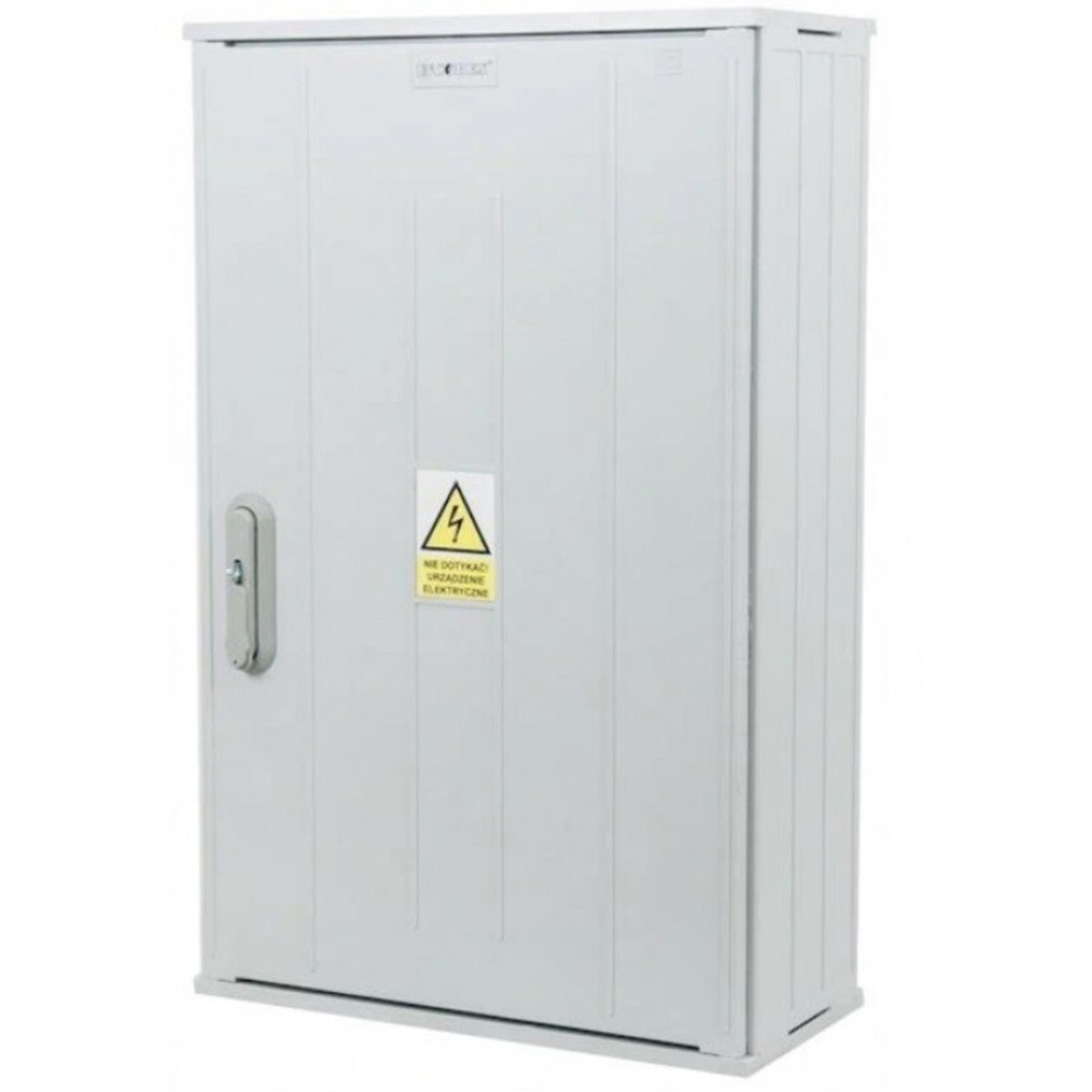

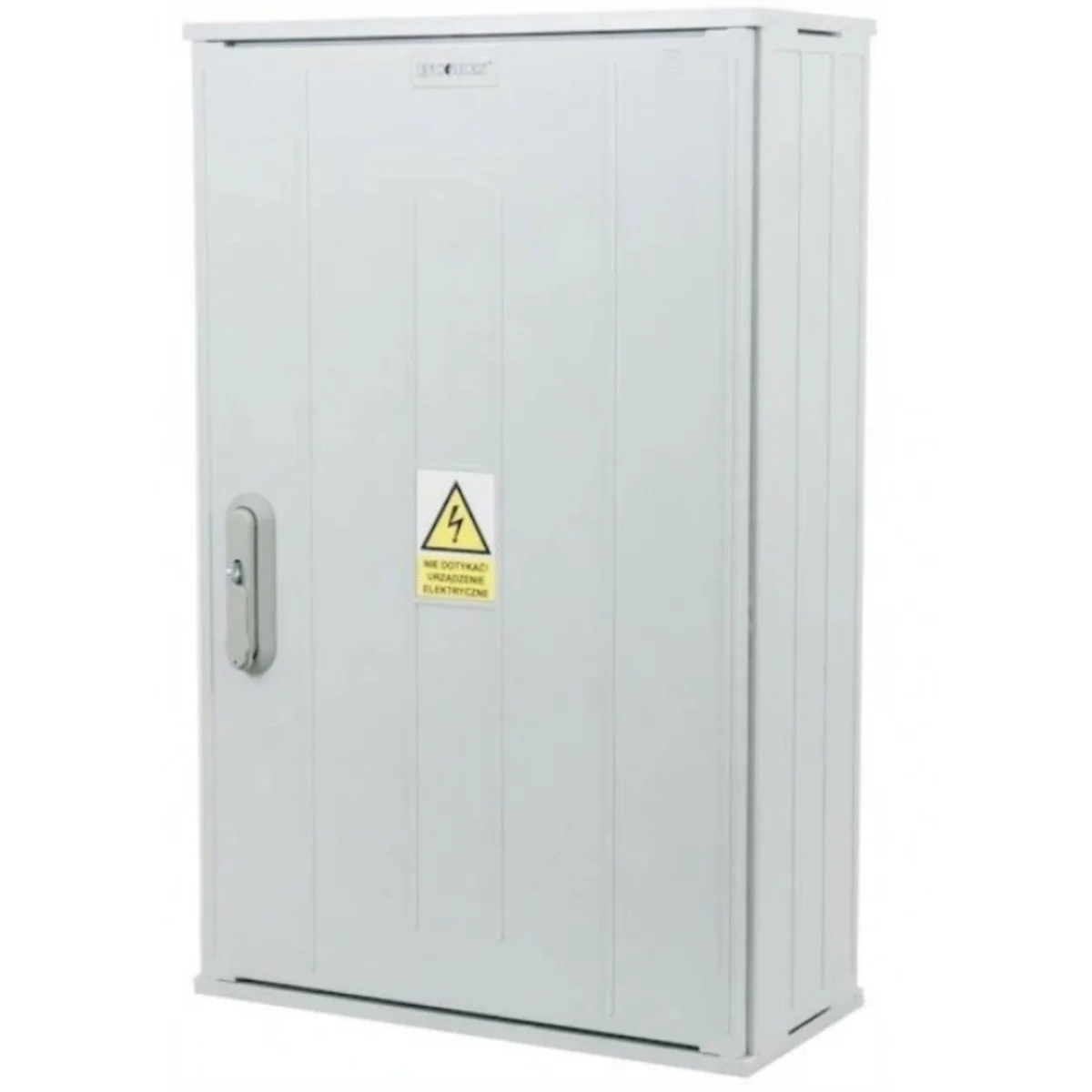

Thermosetting housing SSTN 53x84 840x530x250mm + varnished angles IOBK-42310-01-466

Místní index:
RIN340INCO
Katalogové číslo.:
IOBK-42310-01-466
EAN kód:
5902742037618
Výrobce: INCOBEX
Depth [mm]: 250
Protection class: II
Color: Gray
Cena:
140,52 €
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
k dispozici 1 kusů.
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

SSTN 53x84 thermosetting enclosure from the manufacturer of thermosetting enclosures and low voltage switchboards INCOBEX. Product catalog number is IOBK-42310-01-466.

  • With slanted roof.
  • With angle bars.
  • < /ul>



    The STN type polyester enclosures consist of elements made of thermosetting material reinforced with SMC glass fibre. They are intended for outdoor solutions where high mechanical strength, as well as resistance to weather conditions and UV radiation are required. They are particularly applicable on the market of low-voltage electricity distribution in AC and DC systems. They are also used in the telecommunications, photovoltaic and railway industries. A characteristic feature of these enclosures is the modular design, which allows any configuration of the electrical switchgear.

Technické údaje

  • Depth [mm]
    250
  • Color
    Gray
  • UV resistance
    Yes
  • Rated current [A]
    630
  • Width [mm]
    530
  • Degree of mechanical protection
    IK10
  • Flammability class
    V0
  • Rated insulation voltage DC [V]
    1500
  • Protection class
    II
  • Material
    Plastic
  • Thermal resistance [°C]
    960
  • Level of security
    IP44
  • Height [mm]
    840
  • Surface finish
    varnishing
  • Rated AC insulation voltage [V]
    1000
  • Exact material
    PE
