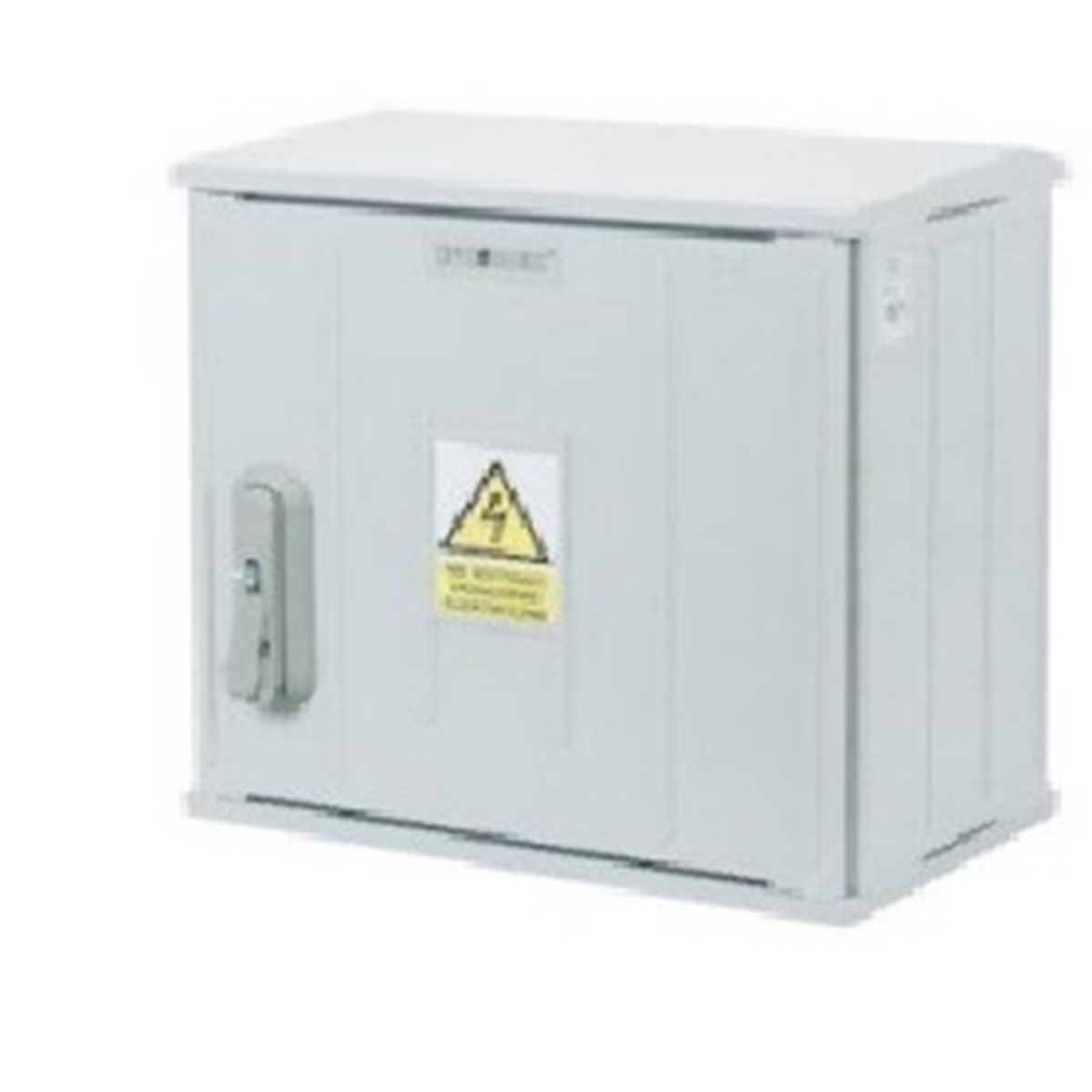

Thermosetting housing SSTN 40x42 420x400x250mm + varnished angles IOB-41110-01-466

local index:
RIN335INCO
Catalog No:
IOB-41110-01-466
EAN code:
0000000389105
Manufacturer: INCOBEX
Depth [mm]: 250
Protection class: II
Color: Gray
Price:
66,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 17 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SSTN 40x42 thermosetting enclosure from the manufacturer of thermosetting enclosures and low voltage electrical switchboards INCOBEX. The product catalog number is IOB-41110-01-466.

  • With slanted roof.
  • With angle bars.
  • < /ul>



    The STN type polyester enclosures consist of elements made of thermosetting material reinforced with SMC glass fibre. They are intended for outdoor solutions where high mechanical strength, as well as resistance to weather conditions and UV radiation are required. They are particularly applicable on the market of low-voltage electricity distribution in AC and DC systems. They are also used in the telecommunications, photovoltaic and railway industries. A characteristic feature of these enclosures is the modular design, which allows any configuration of the electrical switchgear.

Technical data

  • Depth [mm]
    250
  • Color
    Gray
  • UV resistance
    Yes
  • Rated current [A]
    630
  • Width [mm]
    400
  • Degree of mechanical protection
    IK10
  • Flammability class
    V0
  • Rated insulation voltage DC [V]
    1500
  • Protection class
    II
  • Material
    Plastic
  • Thermal resistance [°C]
    960
  • Level of security
    IP44
  • Height [mm]
    420
  • Surface finish
    varnishing
  • Rated AC insulation voltage [V]
    1000
  • Exact material
    PE
