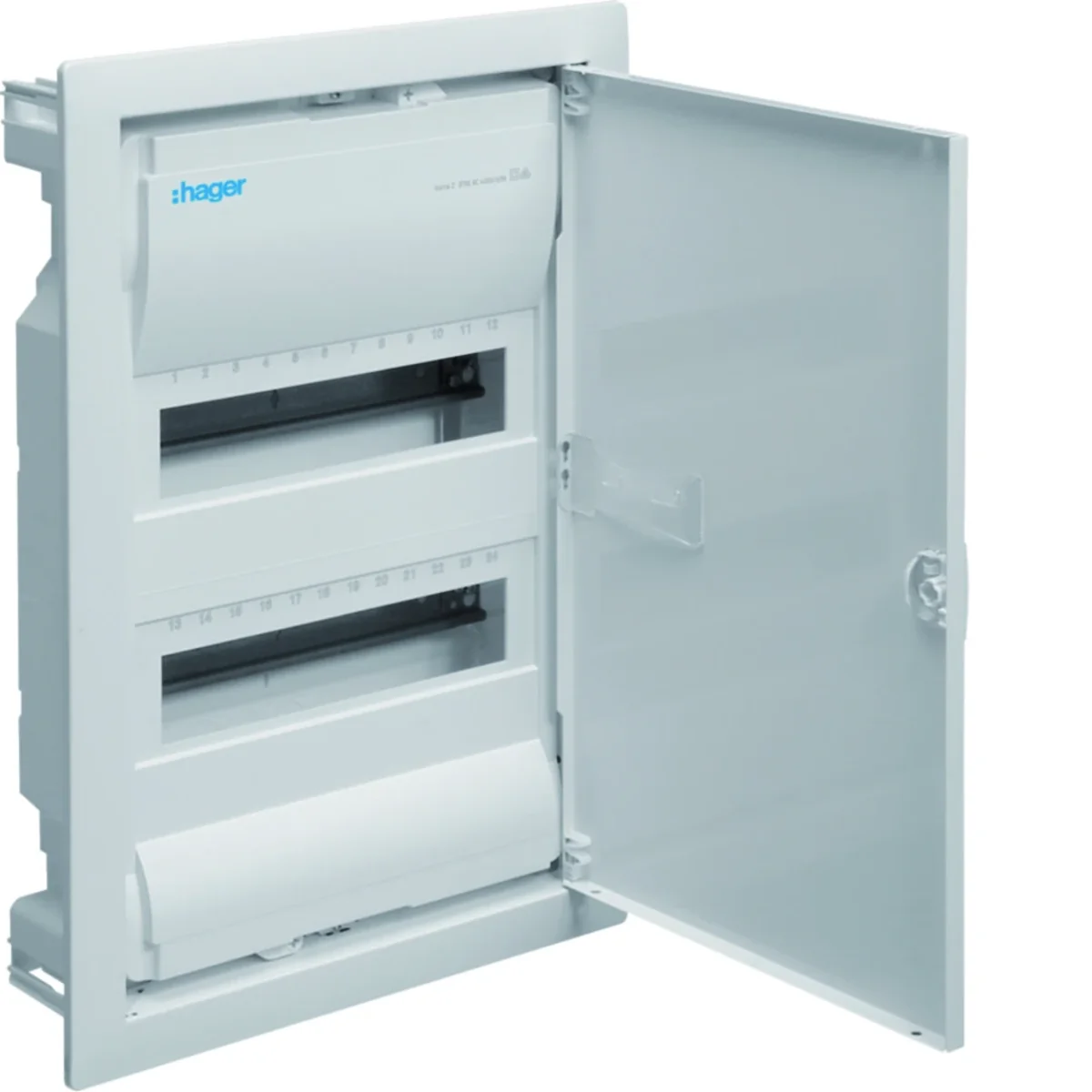

SwitchgearVolta flush-mounted IP30 2-row 24-module with PE/N terminals VU24NE

local index:
RIP335HAGE
Catalog No:
VU24NE
EAN code:
3250616614390
Manufacturer: HAGER
Depth [mm]: 94.5
Number of doors: 1
Number of modules: 24
Price:
60,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 60 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Device masks mounted with screws with the quick-assembly technique, standardly adapted for sealing
• adjustable frame masks up to 15 mm unevenness of the plaster

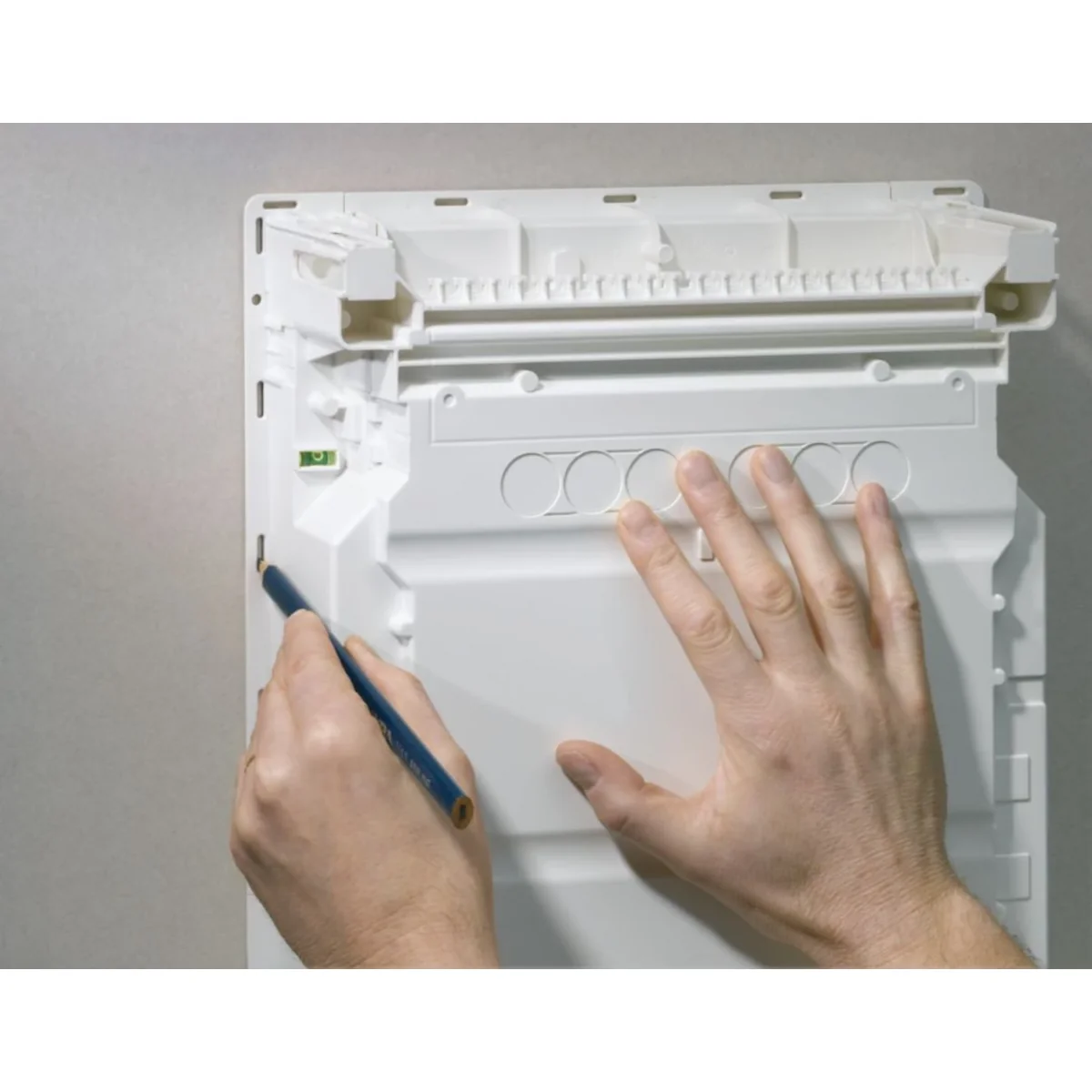

• built-in spirit level
• for devices up to 63 A
• maximum camera installation depth 70 mm
• steel door with flush handle
• impact resistance IK07
• tool-free door hinges; right or left door, installed without the need to dismantle the frame

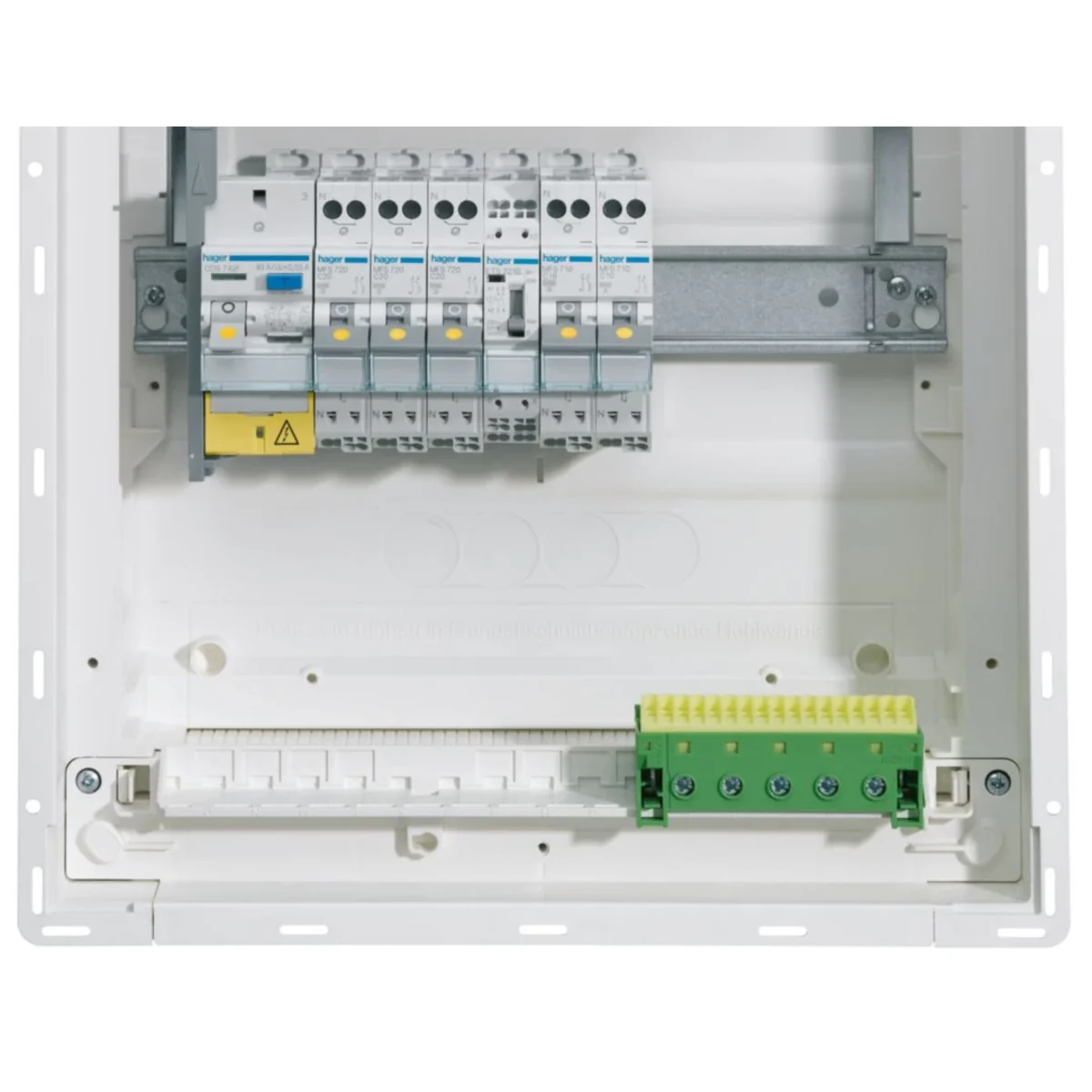

• PE/N screw terminals in a touch-proof cassette, mounted by snapping on the top or bottom of the cabinet
• side embossing for cable entryóbr />• color: white, RAL 9010
• standards: DIN 43871, PN-EN 60439-3
• sealable covers

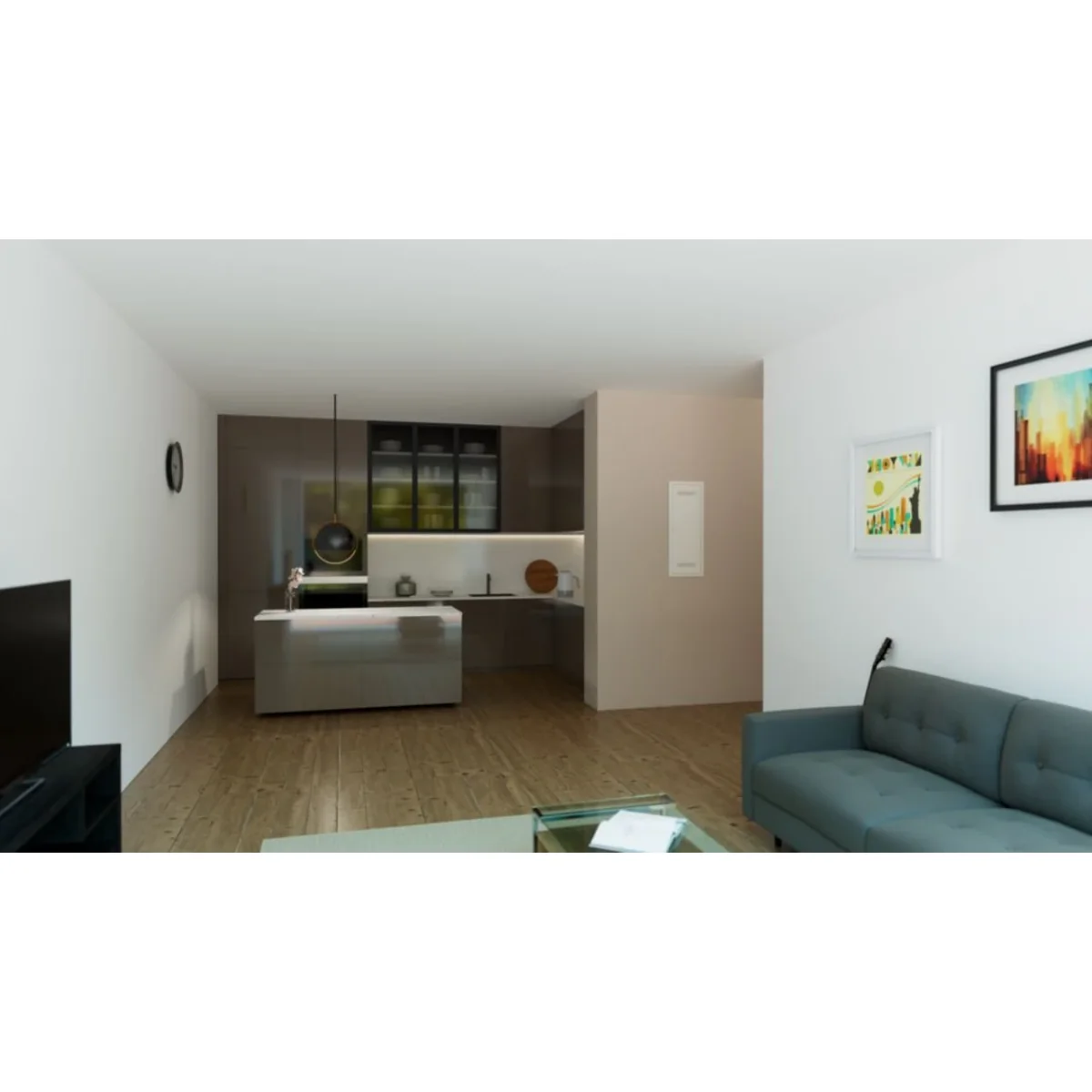

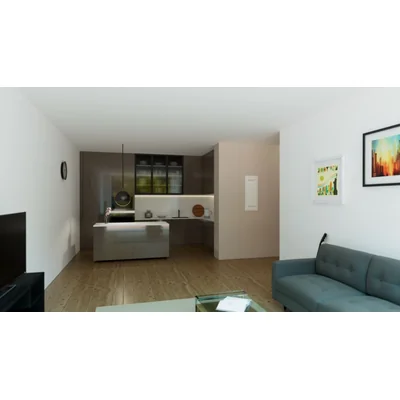

• suitable for use in residential buildings according to DIN 18015
• side spaces for cable management
• as an assortment terminals for wiring RCDs for 1, 2, 3, and 4-row switchboards
• possibility of installing a standard switchgear up to a depth of 72 mm using a raised masking frame
• flammability test 650°C with glow wire method according to EN 60 695-2-1
• installation depth in the wall 90 mm
• II insulation class, IP30
• 4 fixing elements included

Technical data

  • Depth [mm]
    94.5
  • Number of modules
    24
  • Color
    White
  • Level of security
    IP30
  • Height [mm]
    505
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    2
  • Material
    Plastic
  • Width [mm]
    348
  • Accurate color
    White

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    348 mm
  • Built-in depth
    90 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    505.5 mm
  • Depth
    94.5 mm
  • Inner depth
    91.5 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 50 pcs.
Weight (kg) 3,406 3,580 202,000
Width (m) 0,348 0,355 0,800
Length (m) 0,505 0,100 1,170
Depth (m) 0,094 0,510 1,200
