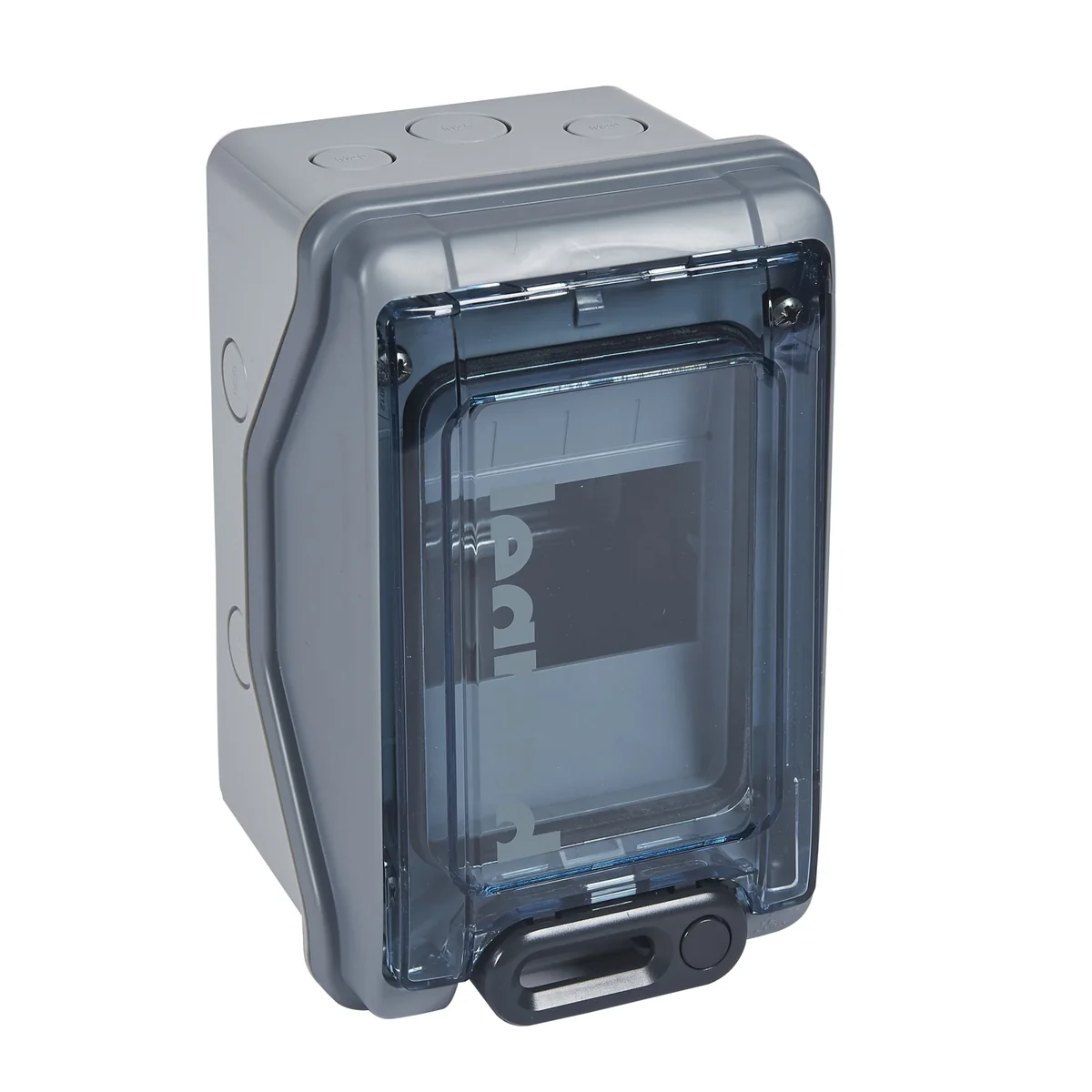

Switchgear RN65 1X4 without strips 601934
Índice local:
RIH138LEGR
Número de catálogo:
601934
Código EAN:
3245066019345
Fabricante:
LEGRAND
Color: Gray
106
20
zł
gross / uds.
(IVA incluido 23%)
Disponibilidad
Dostępne hasta 2 semanas
Por encargo
Dostępność w oddziale
Elija su mayorista
Seleccione
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto
Compliance with the standard: PN-EN 60439-3
Ingress protection IP65
protection class II
impact resistance IK09
door and housing fully reversible
removable mounting bases and front covers for versions 2 -, 3- and 4-row
TH35 mounting bracket with 2-position mounting for modular products and power devices
The distance between TH25 brackets: 150 mm
Possibility of equipping with perforated mounting plates for mounting apparatus of a different design than modular
Handles adapted to lock installation, the possibility of sealing the cover and the front cover
Material RN 65: housing - impact-resistant polystyrene, heat resistance 650°C, door - polycarbonate
Base color RN 65 light gray L750A, dark gray cover R746A
Number of rows: 1
Number of modules: 4
Ingress protection IP65
protection class II
impact resistance IK09
door and housing fully reversible
removable mounting bases and front covers for versions 2 -, 3- and 4-row
TH35 mounting bracket with 2-position mounting for modular products and power devices
The distance between TH25 brackets: 150 mm
Possibility of equipping with perforated mounting plates for mounting apparatus of a different design than modular
Handles adapted to lock installation, the possibility of sealing the cover and the front cover
Material RN 65: housing - impact-resistant polystyrene, heat resistance 650°C, door - polycarbonate
Base color RN 65 light gray L750A, dark gray cover R746A
Number of rows: 1
Number of modules: 4
Datos técnicos
-
ColorGray
-
PKWIU27.12.40.0
Otros datos técnicos
-
Mounting methodSurface mounted
-
Width in number of modular spacings4
-
Cover modelClosed
-
Transparent cover/doorYes
-
With lockNo
-
Housing materialPlastic
-
Built-in height196 mm
-
Inner depth78 mm
-
Neutral terminal blockNo
-
With mounting plateNo
-
ColourGrey
-
RAL-number7046
-
Height200 mm
-
Depth115.6 mm
-
Number of rows1
-
Type of coveringDoor
-
Type of doorSingle
-
Signal passing doorYes
-
Type of closureOther
-
Built-in depth111.6 mm
-
Built-in width124 mm
-
Earthing terminal blockNo
-
DIN-railYes
-
Extension possibleYes
-
EMC-versionNo
-
Degree of protection (IP)IP65
-
Width128 mm
Detalles del fabricante
-
FabricanteLegrand Polska Sp. z o.o.
-
Dirección57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
-
Email
Empaquetado a granel
| una especie de paquete | Pudełko | Karton | Paleta |
| Cantidad | 1 uds. | 6 uds. | 120 uds. |
| Peso (kg) | - | 3,352 | 67,040 |
| Volumen (m3) | - | 0,021 | 0,724 |
| Ancho (m) | - | 0,244 | 1,200 |
| Longitud (m) | - | 0,220 | 0,603 |
| Profundidad (m) | - | 0,396 | 1,000 |
